In 2013, LLC “AZ MDF Ltd” approached TWEKO to ensure the quality application and drying of lacquer coating on furniture products. The TWEKO team designed and installed a painting and drying complex, consisting of a painting chamber and a drying chamber, each measuring 5×4×2.4 m, with the project completed in March 2013.

About the Client

LLC “AZ MDF Ltd” is a manufacturing company in Azerbaijan, located in Baku, specializing in the production of MDF (medium-density fiberboard) panels, particularly for the furniture industry. The company is known on the market for products sized 2440 mm × 1220 mm with thicknesses ranging from 8 to 18 mm, requiring high-quality surface coating.

Project Task

The goal was to ensure the process of applying and drying lacquer coating on furniture products. Key requirements included:

• Creating conditions for high-quality coating application in the painting chamber.
• Efficient drying of products in the drying chamber with consideration for energy resource savings.
• Adapting the complex to the company’s production needs.

Solution from TWEKO

TWEKO developed a painting and drying complex, consisting of a painting chamber and a drying chamber, integrated into a single cabin:

• Painting and Drying Complex. Each chamber has internal dimensions of 5×4×2.4 m. The complex is equipped with three gates: an entrance to the painting zone, a transition between zones, and an exit from the drying chamber. The gates are designed as double-leaf swing gates (2’000×2’000 mm) with inspection windows for entry/exit and sliding gates for the transition. The overall cabin, made of sandwich panels with basalt filler (50 mm thick), measures 9’500×4’500×2’200 mm, with the painting zone at 3’200×4’500×2’200 mm and the drying chamber at 6’250×4’000×2’000 mm. Air heating is powered by diesel fuel.
• Thermoventilation System. Thermoventilation cabinets (TVC) are located above the drying chamber, requiring a mounting platform with support trusses. The TVC for the painting chamber provides air supply, with exhaust handled by an extraction cabinet with a hydro screen (measuring 2’350×500×2’000 mm, positioned to the left of the entrance). The drying chamber operates with recirculation modes and partial air renewal (up to 20%) for fire safety, saving energy resources.
• Control Panel. The electronic control panel with automation systems includes pressure and temperature sensors, switches, a time counter, mode buttons (painting, drying, stop), time relays, and temperature regulators to control the process.

The complex is designed for installation on a pre-prepared foundation, with plans provided by the client.

Implementation Process

The request from LLC “AZ MDF Ltd” was received in 2013, reflecting the company’s need for a modern solution for applying and drying lacquer coating on furniture products. TWEKO began with a detailed analysis of the company’s production needs, considering the specifics of MDF panel manufacturing and surface treatment requirements. Based on this analysis, a custom painting and drying complex with ventilation was designed, comprising a painting chamber and a drying chamber, each with internal dimensions of 5×4×2.4 m. Special attention was given to adapting the ventilation systems, including a hydro screen extraction cabinet (measuring 2’350×500×2’000 mm) for efficient air exhaust in the painting zone, and recirculation modes in the drying chamber with partial air renewal (up to 20%) to save energy resources. Air heating was implemented using diesel fuel, aligning with the client’s technical capabilities. The complex, integrated into a single cabin measuring 9’500×4’500×2’200 mm with three gates (swing gates 2’000×2’000 mm for entry/exit and sliding gates for transition), was constructed using sandwich panels with basalt filler (50 mm thick). Thermoventilation cabinets (TVC) were installed above the drying chamber, supported by a mounting platform with trusses. The project was completed in March 2013, ensuring timely commissioning and compliance with the stated production requirements.

АЗ – 1

АЗ – 2

АЗ – 3

АЗ – 4

Results for the Client

• High-quality application and drying of lacquer coating on furniture products in chambers measuring 5×4×2.4 m.
• Energy resource savings due to air recirculation in the drying chamber.
• Reliable operation of the complex thanks to its adaptation to production specifics.

Client Feedback

Conclusion

The project for LLC “AZ MDF Ltd” was successfully completed in March 2013, demonstrating TWEKO’s ability to create painting and drying complexes tailored to the needs of the furniture industry.

Need a complex for painting and drying? Contact TWEKO — we will implement your solution!

Request a Commercial Proposal

TWEKO implemented a painting station with extraction probes for LTL Group (Kyiv, Ukraine) in February 2013. The complex for the paint preparation laboratory provided comfortable conditions for operators while creating exhibition samples of paint coatings.

About the Client

LTL Group is a leading importer of high-quality paint materials, based in Kyiv. To equip a paint preparation laboratory (“kitchen”), the company turned to TWEKO with the need to create equipment ensuring comfortable and safe conditions for operators working with exhibition samples. Learn how to order painting equipment for your laboratory!

Project Objectives

The project aimed to create conditions for operators in the paint preparation laboratory by setting up a painting station with two workstations and extraction probes. Key requirements included:

• Development of two painting booths with dry filtration for applying paint coatings to samples.
• Creation of two extraction probes for capturing and purifying paint vapors.
• Integration of equipment into a single system with one exhaust ventilation unit to save costs.
• Ensuring ease of operation (removable filters, rotating tables) and safety.
• Compliance with standards for working with paint materials in laboratory conditions.

TWEKO’s Solution: Painting Station with Extraction Probes

TWEKO, per the contract, designed and installed a turnkey painting station with dry filtration and two extraction probes for LTL Group’s laboratory. The complex was adapted to the conditions of the paint preparation facility. Key components of the solution:

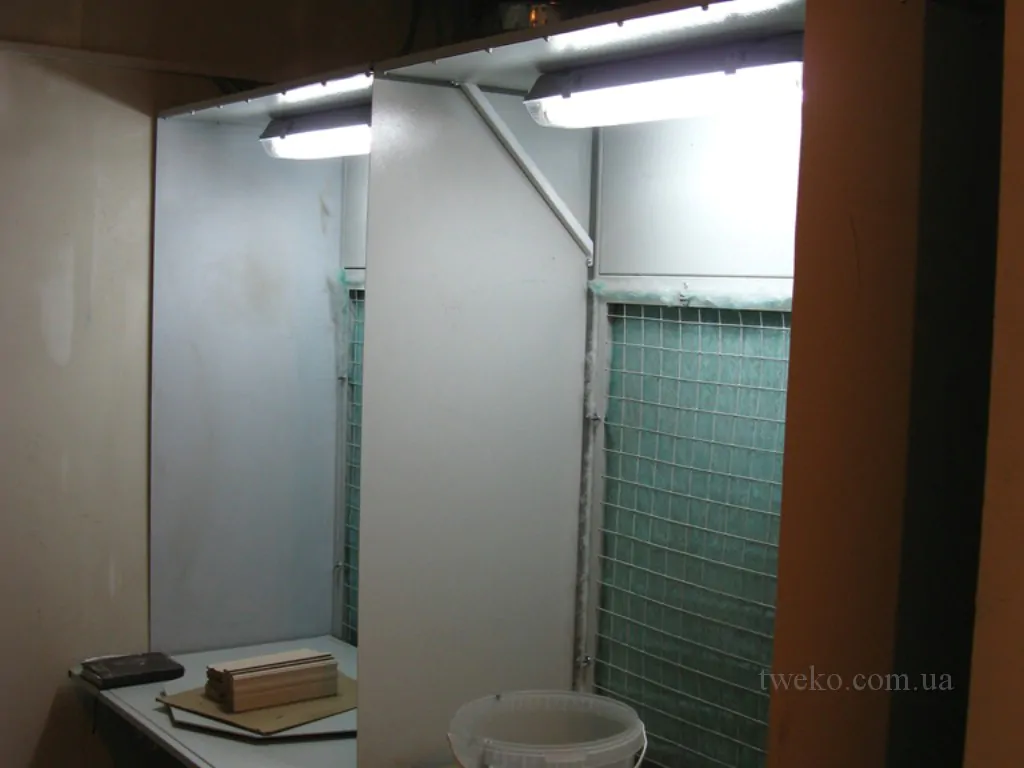

• Painting Station with Dry Filtration. Two workstations in the form of aspiration cabinets made from a metal frame (profile pipes and angles), clad with steel sheets coated with impact-resistant paint. Each cabinet is equipped with a rotating table for convenient coating application and a removable filter cartridge for quick replacement of filter material.
• Extraction Probes. Two trapezoidal galvanized steel boxes for capturing, purifying, and exhausting paint vapors generated during mixing and stirring. The front of the probes is protected by a metal mesh to prevent large objects from entering.
• Ventilation System. Both painting booths and extraction probes are connected via exhaust ducts to a single line equipped with dampers for airflow regulation. The exhaust ventilation unit with an electric motor (capacity up to 10,000 m³/h) is located outside the facility, saving costs through a unified extraction system.
• Safety and Convenience. Metal mesh on probes, impact-resistant cabinet coating, and removable filters ensure safe and comfortable operator work. The system complies with laboratory paint material standards.

The package included project documentation, with installation and commissioning performed per the client’s technical specifications.

Project Execution

The request from LTL Group was received in October 2012. TWEKO analyzed the laboratory conditions, considering requirements for working with paint materials.

Design included developing a painting station with two workstations and extraction probes integrated into a single ventilation system. Component manufacturing (frames, probes, ducts) took place from November 2012 to January 2013.

• Fabrication of two painting booths with rotating tables and filter cartridges.
• Creation of two extraction probes from galvanized steel with metal mesh.
• Installation of a unified ventilation system with a 10,000 m³/h unit and dampers.
• Integration of equipment into the laboratory space, considering constraints.

Installation and commissioning were completed in February 2013. The equipment was put into operation after assembly and testing, ensuring compliance with the contract and technical specifications.

Results for the Client

• Comfortable conditions for operators due to effective paint vapor capture by extraction probes.
• Convenience in coating application thanks to rotating tables and removable filters.
• Cost savings through a single exhaust ventilation unit with a capacity of 10,000 m³/h.
• Safe operations ensured by metal mesh, impact-resistant coating, and compliance with standards.
• Optimized laboratory space due to compact equipment integration.

Client Feedback

Conclusion

The project for LTL Group, completed in February 2013, showcased TWEKO’s expertise in developing painting stations and ventilation systems for laboratories. The complex with two painting booths and extraction probes ensured comfort, safety, and efficiency. The project’s technology aligns with the FPS series equipment.

Painting Station with Dry Filtration: FPS Series

The painting station with dry filtration FPS from TWEKO is a modern solution for laboratories and industrial facilities requiring high-quality paint coating application. The system includes aspiration cabinets with rotating tables, removable filter cartridges, and integrated ventilation with extraction probes, ensuring a clean microclimate and safety. The FPS series is ideal for automotive repair shops, laboratories, and production facilities needing compactness, energy efficiency, and compliance with standards. TWEKO customizes equipment to meet clients’ specific needs, ensuring optimal working conditions.

Looking for professional painting equipment for your laboratory or production? Contact TWEKO — we’ll create a tailored solution for your business!

Request a Commercial Offer

In January 2013, Farbia Color Studio LLC, located in Kyiv, approached TWEKO with a request to create a paint booth for preparing exhibition samples of paint and coating materials (PCM). The TWEKO team designed, manufactured, and delivered a dry filtration booth from the ASS-Cabin-1 series. The project was completed in February 2013, providing optimal conditions for testing paints and creating samples.

About the Client

Farbia Color Studio LLC, based in Kyiv, is an official representative of ELEMENT, KOLORIT, and Tikkurila paint and coating brands. The company specializes in supplying high-quality PCM for mid- and premium segments and provides consultations on material selection for interior and exterior works. In 2013, TWEKO became a partner in setting up a painting facility to ensure high-quality PCM testing and demonstration.

Project Objectives

The goal of the project was to create conditions for high-quality painting of exhibition PCM samples at Farbia Color Studio. The main requirements included:

• A paint booth with dry filtration for effective removal of paint vapors.
• A convenient design with a rotary table for working with exhibition samples.
• High-quality lighting for coating assessment and easy filter material replacement.
• Completion of the project within a tight timeline — by February 2013.

TWEKO’s Solution

TWEKO offered a customized solution that included:

• A paint booth with dry filtration, ASS-Cabin-1 series. The booth is made of a metal frame with profile pipes and angles, covered with a protective paint coating. Equipped with a rotary table for ease of working with exhibition samples. The ventilation unit with an electric motor provides a capacity of 1,500 m³/h, creating a uniform airflow. A removable filter cartridge with an exhaust filter and metal restrictors minimizes PCM dispersion in the room. A dual-lamp luminaire above the cartridge provides lighting for accurate coating quality assessment.

Project Implementation

The request from Farbia Color Studio LLC was received in January 2013. The TWEKO team promptly developed a technical solution tailored to the needs of creating PCM exhibition samples. Manufacturing of the ASS Cabin series paint booth began in early February 2013. The design was adapted to the studio’s conditions, ensuring easy filter replacement and operator convenience. Delivery and commissioning were completed by the end of February 2013, allowing the client to start paint testing promptly.

Results for the Client

• Effective removal of paint vapors thanks to ventilation with a capacity of 1,500 m³/h.
• Convenience in working with exhibition samples due to the rotary table.
• High-quality coating assessment thanks to the dual-lamp luminaire.
• Easy filter replacement due to the removable cartridge with metal restrictors.

Client Feedback

Conclusion

The project was successfully completed in February 2013, providing Farbia Color Studio LLC with a modern paint booth for PCM testing and demonstration. TWEKO demonstrated its ability to create specialized solutions within tight deadlines.

Modern Solution for PCM Exhibition Samples from TWEKO: ASS Cabin

For similar tasks, TWEKO offers the ASS-Cabin-1 series extraction booth. This dry filtration model ensures high performance, safe working conditions, and ease of use with paint and coating materials, making it ideal for creating exhibition samples and PCM testing.

Setting up a painting facility? TWEKO will help you choose the best equipment for your needs.

Request a Commercial Proposal

Painting complex designed for applying and drying paintwork on the surface of parts and components of agricultural machinery. This complex was developed and manufactured by us specifically for Belotserkovmaz LLC, in 2013.
Initially, it was assumed that the complex would consist of four chambers arranged sequentially, one after the other, two chambers are intended for applying a protective paint and varnish coating, and two for drying it, but the second stage of creation, namely the creation of the third and fourth chambers, was transferred to a later one term, and then in the country, another crisis came.

1. Design and principle of operation
1.1. The chamber of the complex is made of metal insulating sandwich panels with fireproof filler, and a galvanic two-layer polymer coating, consisting of a zinc layer 275 mg / m2 thick. The panels are resistant to high temperatures (up to 180 °C). The chamber has two working zones: 1 ventilation zone and 2-zone of final drying. The zones have one common wall in which sliding doors are mounted for direct placement of products in the dryer from the ventilation zone and three-wing swing gates in each zone of the complex.
1.2. The lighting of the ventilation zone of the complex consists of six hermetic fluorescent lamps mounted on the ceiling structure. The lighting of the drying zone consists of four ceiling dual fluorescent lamps, which are mounted on the ceiling of the drying zone.
1.3. Ceiling filters made of non-combustible material. High-quality air filtration is ensured by specially designed filter frames that have excellent peripheral sealing. Ceiling frames are designed and manufactured easily removable, which makes it possible to make quick filter changes.
1.4. A fume hood with dry filters is located in the center of the right wall-ventilation zone and is designed as a separate unit installed inside the cabin. The FH provides the removal of exhaust air from the ventilation zone, with the help of an axial fan and its cleaning from the remnants of paints and varnishes by filtering with two degrees of filters: I – a labyrinth type cardboard filter, II – synthetic fibreglass filter. The air from the drying zone is removed by the ventilation unit, it is mounted outside the room on a special site, using air channels (air ducts are not included in the delivery package).
1.5. Thermo-ventilation cabinet (TVC), located on the back of the complex. Each TVC is equipped with a centrifugal fan with a constant air flow, which provides sufficient air exchange in each working area during the operation of the complex to ensure maximum safety of personnel.
The TVС in the painting chamber provides air intake from the atmosphere and its purification using pocket filters, air is heated to a predetermined temperature using a heat exchanger made of heat-resistant steel and a diesel burner, and its subsequent supply through the space and fine filters installed in ceiling structures in the chamber of the complex.
The drying chamber (DCH) provides air circulation inside the drying zone. Air heating is carried out using a heat exchanger with metal-ceramic thick-film heaters.
The air temperature at the outlet of each heat exchanger is controlled by a temperature sensor, which turns off the heating if this temperature reaches 105 ± 5 °C.

As part of the project for Zaporizhzhia Transformer Plant PJSC (Zaporizhzhia), electric drying ovens for convective drying of coatings were supplied, designed to meet the customer’s specific technical requirements.

Start of Collaboration

In 2013, Zaporizhzhia Transformer Plant PJSC approached Techservice VEKO and Partner GmbH LLC with a request to supply electric ovens for convective drying of coatings applied in the manufacture of electrical equipment. As part of the collaboration, two custom-designed ШКСПП.00.00ОПС ovens were developed and delivered: one with a 1.2 m³ capacity and the other with a 3.0 m³ capacity. These ovens were manufactured in accordance with the customer’s technical specifications, taking into account the specifics of working with solvents (R-4, R-5, acetone, toluene) and ensuring compliance with fire safety requirements for premises classified as Category B-Ib under PUE standards.

Equipment Features

The supplied electric ovens (ШКСПП.00.00ОПС) are designed for convective drying of electro-insulating varnishes (EP-730, ML-912, KO-916K) and enamels used in the production of electrical components. Key characteristics:

• ШКСПП.00.00ОПС Oven, 1.2 m³: A compact model for small batches, maintaining temperature fluctuations of ±5°C throughout the chamber volume, ensuring consistent coating quality.
• ШКСПП.00.00ОПС Oven, 3.0 m³: Designed for larger batches, maintaining temperature fluctuations of ±5°C, delivering high drying quality.

Both ovens were custom-designed to meet the client’s production needs. They are equipped with precise temperature control systems, ensuring consistent coating quality and up to 50% energy savings. The ovens are constructed from stainless steel with thermally insulated sandwich panels filled with fire-resistant mineral wool, ensuring safety and operational efficiency. The automation system, housed in a separate control panel, includes a programmable PID controller (TRM-251), a dual-channel timer (UT24), and a gas analyzer (SHCHIT-3) for monitoring solvent vapor concentrations, ensuring safe operation even with volatile substances.

Key technical features include:

1. Maximum heating temperature of 250°C, suitable for drying products with electro-insulating coatings.
2. Air exchange cyclicity (±240 cycles/hour) and air velocity in the working zone (0.16–0.22 m/s), ensuring uniform drying.
3. Heat exchanger with thick-film heaters (TPEN-1.5/15) and a ventilation unit (VTS-14-46 No. 2 with a 0.37 kW motor), contributing to energy efficiency.
4. Pneumatic damper drive and mechanical exhaust damper for effective vapor removal, reducing the risk of hazardous concentration buildup.
5. Automation system with emergency alarms triggered by open doors, excessive temperature, or vapor concentrations (20% or 45%), ensuring personnel safety.

Advantages

1. Reliability: The 1.2 m³ oven has operated without failures since 2013—over 5 years as of the 2017 review.
2. Stability: Temperature fluctuations of ±5°C throughout the chamber volume.
3. Energy Savings: 50% reduction in electricity consumption due to energy-efficient solutions.
4. Customization: Ovens designed to meet the client’s specific needs, enhancing production efficiency.
5. Safety: Compliance with GOST 15150-69 (UHL 4 climatic standard) and PUE, with a double-seal door system (fiberglass cord and silicone sealant) to prevent vapor leakage.
6. Ease of Maintenance: Modular design facilitates routine maintenance, including air duct cleaning and filter replacement, as outlined in the equipment manual.
7. Durability: Oven lifespan before major overhaul is 3 years, with a nominal service life of 10 years, provided operating conditions are followed.

Client Feedback

Zaporizhzhia Transformer Plant PJSC highly praised the equipment quality and collaboration with TWEKO, confirming the ovens’ reliability after years of operation:

Conclusion

The project for Zaporizhzhia Transformer Plant PJSC, completed in 2013, demonstrated TWEKO’s ability to create reliable equipment for drying electro-insulating coatings. The custom-designed ШКСПП.00.00ОПС ovens provided consistent quality, energy efficiency, and durability, positively impacting the client’s production processes. An additional advantage is the ability to program up to three technological profiles in the TRM-251 thermoregulator, enabling flexible drying settings for various coating types. The data archiving system (MSD-200 module) records operational parameters (temperature, vapor concentration, emergency states), simplifying quality control and diagnostics. The equipment comes with a 12-month warranty, extendable to 15 months if installed under the manufacturer’s supervision, reflecting TWEKO’s confidence in its product quality.

With a flexible approach and expertise in complex projects, we are ready to offer solutions tailored to your production needs. If you are seeking high-quality ovens for drying coatings, contact TWEKO. We guarantee a professional approach, innovative solutions, and exceptional quality.

Painting chamber for car with increased ventilation group, internal size 7x4x2.7 m, on a previously prepared concrete base with air ducts, heating air — diesel burner. The chamber has a reinforced structure, sandwich panels with a thickness of 100 mm are used, all parts of the chamber have been pre-sandblasted and have a double layer of protective paint coating.

In October 2012, TWEKO installed a budget painting chamber for the Center for Support of Service Activities of the Ministry of Defense and the General Staff of the Armed Forces of Ukraine (CSSA MoD and GS AFU) in Kyiv. The chamber, with internal dimensions of 7×4×2.7 m, mounted on a foundation base with integrated air ducts, delivers high-quality vehicle painting under tight budget constraints.

About the Client

The Center for Support of Service Activities of the Ministry of Defense and the General Staff of the Armed Forces of Ukraine (CSSA MoD and GS AFU) is a state institution located in Kyiv, responsible for the logistical support of the Ministry of Defense and Armed Forces of Ukraine leadership. The center handles maintenance and repair of the official vehicle fleet, including bodywork and painting. Limited funding and high-quality standards require cost-effective and reliable solutions, such as painting chambers. TWEKO offers proven solutions for state institutions, auto repair shops, and industrial enterprises.

Project Objectives

The project aimed to create conditions for bodywork and vehicle painting for the CSSA MoD and GS AFU’s official fleet under tight budget constraints. The main requirements included:

• Installation of a budget painting chamber with optimal dimensions for passenger vehicles.
• Providing a reliable environment for high-quality coating application in a clean air environment.
• Use of a foundation base with integrated air ducts for effective ventilation.
• Cost-effectiveness and reliability of equipment under limited funding conditions.

TWEKO’s Solution: Budget Painting Chamber for Vehicles

TWEKO developed and installed a budget painting chamber that included:

• Painting Chamber. The chamber, with internal dimensions of 7×4×2.7 m, mounted on a foundation base with integrated air ducts, provides sufficient space for painting passenger vehicles.
• Ventilation System. Integrated air ducts and an exhaust system effectively remove paint mist, maintaining a clean working area and comfortable conditions for operators.
• Heating System. Diesel fuel is used for air heating, ensuring cost-effectiveness and efficient drying of coatings.
• Construction. The cost-optimized chamber design was developed specifically for implementation under tight budget constraints, maintaining reliability and functionality.

The package was complemented with necessary fittings, mounting hardware, and sealing elements to ensure stable operation.

Project Implementation

The request from CSSA MoD and GS AFU was received in 2012. TWEKO prepared a commercial proposal, considering the limited funding and requirements for coating quality. After site measurements, the installation of a budget painting chamber with internal dimensions of 7×4×2.7 m was proposed. Manufacturing, installation, and commissioning of the equipment were completed in October 2012. The chamber was put into operation on schedule.

Results for the Client

• High-quality bodywork due to a clean air environment in the chamber.
• Effective removal of paint mist through integrated air ducts and ventilation system.
• Cost-effective solution due to the streamlined design and diesel heating.
• Reliable working conditions for operators due to the sealed construction and exhaust system.

Client Feedback

Conclusion

The project for CSSA MoD and GS AFU was successfully completed in October 2012. TWEKO demonstrated expertise in supplying budget painting chambers tailored to the needs of state institutions with limited funding, ensuring high-quality coating application and cost-effectiveness.

Industrial Painting and Drying Chambers: IKFS Series

For state institutions, the defense industry, and industrial enterprises, TWEKO offers industrial painting and drying chambers of the IKFS series, including budget modifications. These chambers are designed for high-quality application of coatings on vehicles, special equipment, and other products, even under limited funding conditions.

Among the series options is the IKFS Diagonal — a budget model with a diagonal airflow scheme that reduces energy consumption without compromising coating quality. Such solutions are optimal for the public sector and organizations with limited budgets.The model installed for CSSA MoD and GS AFU is an example of a budget chamber on a foundation base with effective ventilation, diesel heating, and a sealed construction. The IKFS series chambers are adaptable to individual needs: from compact to large-scale, with the option for installation without a foundation. Reliability, cost-effectiveness, and high painting quality are the foundation of TWEKO’s solutions for the public and industrial sectors.

Looking for a budget painting chamber for your fleet or production? Contact TWEKO — we will create equipment for your service!

Request a Commercial Proposal

In 2012, Donetskstal PJSC, a leading metallurgical enterprise in Donetsk, approached TWEKO with a request to create a paint and drying booth for painting railway wagons. The TWEKO team designed, manufactured, and commissioned a pass-through booth (KFSP) with electric heating, measuring 32x6x6 m. The project was completed in September 2012, ensuring high-quality painting and resource efficiency.

About the Client

Donetskstal PJSC, located in Donetsk, is one of Ukraine’s leading metallurgical companies, specializing in steel production, rolled products, and engineering products. The enterprise actively develops its infrastructure, including a fleet of railway wagons for logistical needs. In 2012, TWEKO became a partner to create a paint and drying booth to ensure quality control and cost savings in wagon painting.

Project Objectives

The project aimed to create optimal conditions for painting and drying railway wagons at Donetskstal PJSC’s production facility. Key requirements included:

• A pass-through paint and drying booth for simultaneous painting of two freight wagons.
• An electric heating system for uniform heating and drying of coatings.
• Energy efficiency and powerful ventilation for removing paint fumes.
• Completion of the project within a tight timeline.

TWEKO’s Solution

TWEKO offered a customized solution, including:

• Pass-Through Paint and Drying Booth (KFSP), Model IKFS-250. The booth, with a working area of 31,280×5,970×6,000 mm, allows simultaneous painting of two freight wagons. It is equipped with four ventilation units (25,000 m³/h each), four heat exchangers with ceramic-metal heating elements (4×110 kW) for electric heating, and an activated carbon filtration system. The booth, constructed with 80 mm sandwich panels (basalt filler), includes two end sectional gates (4,000×4,500 mm) and three personnel doors. Lighting is provided by 32 overhead and 26 side fluorescent fixtures. Additionally, two mobile painter platforms (2,500×1,000×1,800 mm) and a fabric curtain for booth division were installed.

The package included a control panel with automation, featuring a pressure switch, temperature sensors, and a thermostat for controlling painting and drying processes.

Project Implementation

The request from Donetskstal PJSC was received in early 2012. TWEKO prepared a commercial proposal and contract. Booth manufacturing began, considering the workshop’s specifics and the need to integrate air ducts into a concrete foundation. Installation and commissioning were completed in September 2012, allowing the client to begin painting wagons with full quality control.

Results for the Client

• Efficient painting of two wagons simultaneously due to the booth’s 31,280×5,970×6,000 mm size.
• Energy efficiency with a consumption of 500 kW/h and electric heating.
• High quality control through an activated carbon filtration system and automated management.
• Cost savings on wagon procurement due to in-house painting production.

Client Feedback

Conclusion

The project was successfully completed in September 2012, providing Donetskstal PJSC with a modern paint and drying booth for railway wagon production. TWEKO demonstrated its ability to create large-scale solutions for industrial needs.

Modern Solution for Painting Large-Scale Objects from TWEKO: IKFS Series Paint and Drying Booths

For painting large objects such as railway wagons, TWEKO offers IKFS series paint and drying booths, including the IKFS Diagonal model with diagonal airflow. These booths ensure an optimal microclimate for high-quality application and drying of paint coatings, thanks to powerful ventilation and an efficient filtration system. The IKFS Diagonal model creates uniform airflow, minimizing turbulence and guaranteeing perfect coating. The energy-efficient design reduces resource consumption, and the modular system allows installation without complex foundation preparation and easy relocation. The IKFS series, particularly IKFS Diagonal, is an ideal solution for industrial enterprises seeking high quality, cost savings, and operational reliability.

Need to efficiently equip a painting area for railway wagons? We’ll help you select equipment that fully meets your needs.

Request a Commercial Proposal

TWEKO designed and implemented a painting complex for railway wagons for SE «Ukrspetsvagon» (Kharkiv region) in 2011–2012. The complex included two painting and drying chambers and two sets of lifting and moving platforms for operators (painters’ lifts). The solution was integrated into the existing infrastructure of the enterprise, considering technological constraints, and ensures efficient, safe, and high-quality wagon painting.

About the Client

SE «Ukrspetsvagon» is a state-owned enterprise in Panyutyne, Kharkiv region, specializing in the production, repair, and maintenance of railway wagons. The company meets the needs of Ukraine’s railway transport, manufacturing and restoring freight and specialized wagons. Its production facilities allow for processing large-scale structures while meeting high quality standards. To achieve high-quality application of coatings, the enterprise required a painting complex adapted to the limited space of the existing facility. TWEKO offers customized solutions for the railway industry — find out how to purchase a painting chamber for your production!

Project Objectives

The goal of the project was to create a painting complex for applying coatings on railway wagons in a constrained space. The main requirements included:

• Design of a painting and drying chamber integrated into an existing facility with three solid walls and a railway track along the facade.
• Effective removal of paint mist using a filtration system with activated carbon.
• Ensuring quick access for operators to wagon surfaces using lifting and moving equipment.
• Optimization of equipment placement for uninterrupted production flow, considering technological priorities and logistical constraints.
• Ensuring operator safety, including an emergency evacuation corridor.

TWEKO’s Solution: Painting Complex for Railway Wagons

TWEKO developed a customized painting complex consisting of two painting and drying chambers and two sets of lifting and moving platforms for operators, adapted to the existing facility. Key components of the solution:

• Painting Zone. Each chamber is equipped with 26 overhead fluorescent lights for high-quality illumination and a two-stage filtration system with activated carbon for effective air purification from paint mist.
• Supply and Exhaust System. Ventilation is provided by eight supply ventilation units and eight exhaust cabinets positioned along the rear wall at a height of 2.4 m. This arrangement ensures clear access to service doors and an emergency evacuation corridor. Heat generators are elevated on platforms with a service area for burner maintenance and operation control. Air is supplied through a vortex heat exchanger with a steam calorimeter, and exhaust is facilitated through an extractor connected to ventilation ducts in the foundation. The extractor can be placed on the chamber’s roof or adjacent structures for flexible integration.
• Lifting and Moving Platforms. Two sets of painters’ lifts, positioned along the chamber’s side walls, allow operators to move freely along the wall, vertically, and toward the wagon surface, significantly reducing manual painting time without interruptions for repositioning. The platforms feature a precise automatic control system, a robust steel structure, and anti-slip coating.
• Construction. The chambers were installed in a facility constrained by three solid walls, with an open facade for the railway wagon transporter. Equipment placement was optimized based on technological priorities to avoid resource congestion and ensure a seamless production flow. The foundation with ventilation duct pits was constructed jointly with the client based on TWEKO’s drawings. The heat generator platforms were manufactured by the client according to TWEKO’s project documentation.
• Control System. The complex is equipped with a control panel with automation that regulates airflow through intake, recirculation, and exhaust dampers, ensuring efficient ventilation and safety.

The set was complemented by ceiling filter frames with mounting elements and filter material for uninterrupted operation.

Implementation Process

The request from SE «Ukrspetsvagon» was received in August 2011. TWEKO conducted an analysis of the facility, identifying technical constraints: three solid walls, a railway track along the facade, and limited ventilation options. After detailed measurements, a project for a railway wagon painting complex was developed. The project accounted for production flow logistics, equipment grouping based on technological priorities, and avoidance of resource congestion.

1. Optimal placement of supply and exhaust ventilation systems along the rear wall for efficient air circulation.
2. Construction of a foundation with ventilation duct pits for extractor connection, completed by the client based on TWEKO’s drawings.
3. Manufacturing of heat generator platforms at a height of 2.4 m with a service area, ensuring access to service doors and an emergency corridor.
4. Organization of an emergency corridor for safe operator evacuation in case of an emergency.

TWEKO provided a complete set of project documentation, including drawings for the foundation and heat generator platforms, enabling the client to perform part of the work independently. The manufacturing of components (chambers, ventilation systems, lifting and moving platforms) took place during 2011–2012. Installation and commissioning were completed in 2012, ensuring the complex was operational on schedule.

USV-okrasochniy-complex-dlya-vagonov-1

USV-okrasochniy-complex-dlya-vagonov-1

Results for the Client

• Effective paint mist removal due to a two-stage filtration system with activated carbon.
• Convenient and fast wagon painting using lifting and moving platforms for operators, significantly reducing manual painting time without interruptions for repositioning.
• Optimal equipment placement in a constrained space, considering the railway track and three solid walls.
• Comfortable working conditions due to 26 fluorescent lights and an automated ventilation system.
• Operator safety ensured by an emergency corridor and elevated heat generators with a service platform.

Client Feedback

Conclusion

The project for SE «Ukrspetsvagon», implemented in 2011–2012, demonstrated TWEKO’s expertise in developing painting complexes for railway wagons. The solution, adapted to a constrained space, ensured high coating quality, safety, and production efficiency.

Unified Solutions for the Railway Industry

TWEKO offers comprehensive solutions tailored to the railway industry’s needs — from painting large-scale wagons to ensuring safe working conditions.

Looking for a professional painting chamber for railway wagons? Contact TWEKO — we will create a customized solution for your enterprise!

Request a Commercial Offer

In December 2012, TWEKO successfully completed a large-scale project — designing and installing a painting and drying chamber for the Central Depot of the railway station in Tbilisi, Georgia. The pass-through type chamber with unique technical specifications (internal dimensions 32×6.6×6 m) allows for efficient painting of two freight cars or one passenger car simultaneously. The dual-section system ensures independent operation, while a hybrid heating system (electricity/diesel) guarantees reliability under any conditions, even with limited energy resources.

About the Client

The Central Depot of the Tbilisi railway station is a key enterprise in Georgia, specializing in the repair and maintenance of railway cars, including passenger trains. The depot provides technical maintenance, body repairs, and painting of rolling stock to maintain its appearance and durability. High quality standards and the need to operate under limited energy resources require the use of modern equipment, such as painting and drying chambers. TWEKO offers reliable solutions for the railway industry, tailored to the specific needs of clients.

Project Objectives

The project aimed to create a painting and drying chamber for applying and drying coatings on passenger and freight train cars. The main requirements included:

• Designing a pass-through type chamber for simultaneous painting of two freight cars or one passenger car.
• Enabling independent operation of two chamber sections for painting and drying.
• Creating a heating system that operates on electricity or diesel to save energy resources.
• Installing the chamber without requiring a foundation base, with integrated air ducts.

All project requirements were aimed at improving the efficiency of the technological process with minimal energy consumption while creating a safe and ergonomic working environment for personnel.

TWEKO’s Solution: Painting and Drying Chamber for Railcars

TWEKO developed a dual painting and drying chamber of the pass-through type, which included:

1. Chamber Cabin

The chamber cabin has internal dimensions of 32000×6600×6000h mm and protects the painting area from external influences, prevents dust from settling on painted surfaces, and provides thermal insulation. The cabin consists of:

• • Walls and ceiling: sandwich panels with fire-resistant filling, 80 mm thick, with a galvanized double-layer polymer coating (zinc 275 g/m², paint layer 0.55 mm). The panels are resistant to temperatures up to 180°C and high humidity, allowing the chamber to be used outdoors.
  • Suspended plenum ceiling: purifies and evenly distributes heated air. The structure consists of metal pipes and angles holding fire-resistant ceiling filters. Specially designed frames with filters ensure high-quality filtration and are easily replaceable.

• Filtration and air ducts: floor grilles with filter cassettes to capture paint mist. Cassettes are placed at the bottom of the side walls, along which exhaust air ducts are located.
• Sealed gates: dimensions 4000×4700 mm, with viewing windows, sectional type, with thermal insulation material and high-quality sealing. Three insulated service doors for personnel.
• Lighting: two upper (angled at 45° to the ceiling) and two side rows of fluorescent lights provide illumination of at least 1000 lux. The lights are IP65-rated (moisture- and dust-proof).

A highly efficient thermoventilation system was designed to ensure a stable microclimate and control air parameters in the chamber.

2. Thermoventilation Group

Consists of four supply and two dual exhaust thermoventilation cabinets (TVCs) that provide air purification, heating, fresh air supply, and removal of used air.

• Temperature ranges: 16–24°C in painting mode, 20–70°C in drying mode.
• Air exchange: at least 200 times/h during painting and 50 times/h during drying, ensuring high-quality drying and safe conditions for operators (compliant with EU standards).
• TVC components:
  • Centrifugal fan with an electric motor (up to 40,000 m³/h).
  • Vortex heat exchanger with thick-film metal-ceramic heaters — 40% more efficient than traditional heating elements. Designed specifically for painting chambers, more cost-effective than gas heat exchangers.
  • Electrically driven dampers for air supply, exhaust, and recirculation, controlled by automation.
  • Preliminary pocket filter for air purification before the plenum ceiling.

3. Control Panel

The automation and control system includes:

• Pressure, temperature, and airflow sensors.
• Meters, regulators, and safety systems.
• Frequency converters to adjust motor speeds and airflow in the chamber.

Project Implementation

The request from Tbilisi Central Depot was received in early 2012. TWEKO prepared a commercial proposal, considering energy resource limitations and the requirement for installation without a foundation. After measuring the site, a dual pass-through painting and drying chamber was designed. The manufacturing of components (cabin, thermoventilation cabinets, heating system) was completed in December 2012. Installation and commissioning were carried out on schedule, allowing the chamber to be put into operation as planned.

Results for the Client

• Operational efficiency: The ability to simultaneously paint two freight cars or one passenger car with independent section operation significantly increased process productivity.
• Resource savings: The hybrid heating system (electricity/diesel) reduced energy consumption and ensured stable operation under limited resource conditions.
• High painting quality: Uniform distribution of heated air, effective filtration, and bright lighting (1000 lux) ensured high-quality coating application.
• Structural mobility: Installation without a foundation and with integrated air ducts allowed placement on an existing concrete floor.
• Comfortable working conditions: Powerful ventilation and a modern control system created safe and convenient conditions for operators, compliant with EU labor safety standards.
• Reliability and durability: The chamber’s fire-resistant panels with polymer coating ensure a long service life, even in harsh conditions.

pokrasochno-sushilnaya kamera tbilisi tweko 11

pokrasochno-sushilnaya kamera tbilisi tweko (1)

Client Feedback

Conclusion

The successful implementation of the project for Tbilisi Central Depot confirmed TWEKO’s expert approach to engineering solutions in the railway industry. We create equipment that operates reliably, economically, and efficiently for decades.

Painting and Drying Complex: FSC Series

For the needs of the railway, automotive, and other industrial sectors, TWEKO offers the FSC series painting and drying complex. This series combines a painting chamber with a powerful ventilation system and a drying chamber, providing a complete cycle of coating application and drying. The FSC complex optimizes the painting process, ensuring consistent quality through effective air filtration and uniform drying. The solution is ideal for industrial facilities where high productivity and reliability are critical. Learn more about the FSC series painting and drying complex on our website!

Looking for a professional painting chamber for the railway industry? Contact TWEKO — we will create equipment tailored to your production!

Request a Commercial Proposal

In October 2011, TWEKO designed and installed a painting complex for Neopol LLC in Kyiv. The complex includes a water-based painting chamber with a hydro-screen measuring 5×4×2.4 m and a drying chamber measuring 6×5×2.4 m. The chambers are connected by adjacent gates, and air heating in the drying chamber is powered by diesel fuel. The solution ensures high-quality application and uniform drying of paint coatings on furniture products.

About the Client

Neopol LLC is a leading furniture factory based in Kyiv. Founded in 1997, the company specializes in producing soft furniture, including sofas, armchairs, and ottomans, distinguished by modern design and high quality. Neopol collaborates with clients in Ukraine and abroad, offering tailored solutions for creating comfortable furniture. The company’s products require professional application of paint coatings to ensure aesthetic appearance and durability. If you are looking to buy a painting chamber, TWEKO offers reliable solutions for furniture production.

Project Objectives

The project aimed to create a modern painting complex for the application and drying of paint coatings on furniture products. The main requirements included:

• Development of a water-based painting chamber with a hydro-screen for effective paint mist removal.
• Equipping a drying chamber for fast and uniform drying of coatings.
• Ensuring clean air in the work area and comfortable conditions for operators.
• Integration of adjacent gates for convenient movement of products between chambers.

TWEKO’s Solution: Painting Complex with Hydro-Screen and Drying

TWEKO developed a custom painting complex, which included:

• Water-Based Painting Chamber. The painting chamber with a hydro-screen, measuring 5×4×2.4 m, is equipped with a corrosion-resistant water mirror, a hydraulic pipeline system with valves, and nozzles for water spraying. This ensures effective paint mist removal and clean coating application on furniture products.
• Drying Chamber. The 6×5×2.4 m chamber with a diesel-powered air heating system ensures fast and uniform drying of paint coatings, maintaining their quality and durability.
• Adjacent Gates. The complex’s design includes adjacent gates between the painting and drying chambers, simplifying product movement and optimizing the workflow.
• Extraction System. A powerful ventilation unit ensures the removal of contaminated air, maintaining a clean work environment and comfortable conditions for operators.

The set is complemented by necessary fasteners, mounting elements, and seals for reliable operation.

Project Implementation

The request from Neopol LLC was received in early 2011. TWEKO prepared a commercial proposal, taking into account the requirements for coating application quality and the specifics of the Kyiv facility. After site measurements, a painting complex was designed, including a water-based painting chamber and a drying chamber. Component manufacturing (chambers, ventilation system, hydro-screen) was completed in October 2011. Installation and setup of the equipment were carried out on time, allowing the complex to be commissioned according to schedule.

Results for the Client

• Effective paint mist removal due to the hydro-screen, ensuring clean coating application.
• Fast and uniform drying of paint coatings thanks to the diesel-heated drying chamber.
• Workflow optimization due to adjacent gates between chambers.
• Comfortable working conditions thanks to a powerful extraction system and clean air environment.

Client Feedback

Conclusion

The project for Neopol LLC was successfully completed in October 2011. TWEKO demonstrated expertise in developing painting complexes tailored for soft furniture production, ensuring high-quality coating application and operational efficiency.

Painting Solution for Furniture Production from TWEKO

For the needs of the furniture and woodworking industries, TWEKO offers the FSC series painting and drying complex. This series combines a water-based painting chamber with a hydro-screen and a drying chamber, providing a complete cycle of paint application and drying.

The AS Hydro model is ideal for painting stations: the hydro-screen, corrosion-resistant water mirror, and water spraying system effectively remove paint mist. The compact design and powerful extraction system ensure clean and uniform coating application on furniture products.

The FSC complex optimizes the painting process, delivering consistent quality through effective air purification and uniform drying. Both solutions are ideal for woodworking shops, combining reliability, efficiency, and high productivity.

Learn more about the water-based painting chamber and the painting and drying complex on our website!

Looking for a professional painting complex for a furniture factory? Contact TWEKO — we will create equipment for your production!

Request a Commercial Proposal

In 2012, TWEKO completed a unique project for the supply and installation of a painting and drying complex for Diesel Plant LLC in Kryvyi Rih, specializing in the production of freight wagons. The dual painting chamber for wagons provides a full cycle of painting and drying, meeting the highest standards of quality and energy efficiency.

In March 2011, Diesel Plant LLC approached TWEKO with the task of developing equipment for painting railway transport—a painting and drying complex for processing freight wagons. The key requirement was to create two sequentially connected sealed chambers with internal dimensions of 36×5×6 m, capable of simultaneously processing two wagons up to 15 m long each, while maintaining energy efficiency in drying mode.

Project Implementation

Work on the painting chambers for wagons began in March 2011, and by July 2012, installation and commissioning were completed. The complex was installed in the plant’s workshop in Kryvyi Rih on a special foundation base with integrated air ducts for exhaust air and a service pit, allowing painting of the wagons’ undersides.

Over six years of operation (until 2018), the drying chamber for large-scale equipment has performed flawlessly, requiring only scheduled maintenance (replacement of filters, drive belts) and minor repairs to heat exchangers and ventilation units. TWEKO fulfills all contractual obligations, providing prompt service support for the equipment.

Equipment

The painting and drying complex, designed as equipment for painting railway transport, consists of two sequentially connected sealed chambers with total dimensions of 36,000 × 5,000 × 6,000 mm, intended for applying and drying coatings on freight wagons or other large-scale items within these dimensions.

Main components of the booth:

• Walls and ceiling: 80 mm thick sandwich panels with fire-resistant filling (mineral wool), galvanized coating (zinc 275 g/m²), and a polymer layer (0.55 mm), resistant to temperatures up to 180°C and high humidity. This allows the painting chambers to be used even outdoors.
• Suspended plenum ceiling: Made of metal profiles, equipped with fire-resistant ceiling filters with high-quality sealing. The frame design ensures easy filter replacement, crucial for drying chambers.
• Filter cassettes: Vertically positioned in the foundation base under floor grates, capturing paint mist and particles, preventing filter contamination from pit debris.
• Gates and doors: Insulated roller gates measuring 4,000 × 4,500 mm with viewing windows, and three insulated service doors with “anti-panic” locks for safe operation.
• Lighting: Four rows of fluorescent lights (two upper rows at a 45° angle to the ceiling, two side rows), providing at least 1,000 lux for precise quality control of painting. The lights have IP65 protection, ideal for painting chambers for wagons.

Thermo-Ventilation System for Drying Chambers of Large-Scale Equipment

The complex is equipped with four supply and two dual exhaust thermo-ventilation cabinets (TVCs), which provide air purification, heating, and supply, as well as exhaust air removal. Air exchange is at least 200 cycles/hour in painting mode and 50 cycles/hour in drying mode, complying with EU occupational safety standards for railway transport painting equipment.

Each TVC includes:

• A centrifugal fan with an electric motor, with a capacity of up to 40,000 m³/h.
• A heat exchanger made of fire-resistant steel with an NG 350 CIB Unigas gas burner for energy-efficient heating.
• Supply, exhaust, and recirculation dampers with electric actuators.
• A pocket-type pre-filter for air purification before delivery to the plenum.

The temperature is adjustable from 16–24°C in painting mode and 20–70°C in drying mode, ensuring high-quality airflow and drying of wagons in the drying chamber for large-scale equipment.

Control Panel

The automation system includes pressure, temperature, and airflow sensors, counters, and regulators that coordinate the operation of all chamber components. The control panel can be equipped with frequency converters to optimize airflow, enhancing the energy efficiency of painting chambers.

Technological Features

The complex provides a full cycle of pneumatic coating application and drying in the painting chamber for wagons. The chamber is installed on a foundation base with a pit, allowing painting of the wagons’ undersides. The energy-efficient design minimizes costs in drying mode, while sealing and filtration protect against dust, ensuring high-quality coatings for railway transport.

Advantages

1. Unique dual design for simultaneous processing of two wagons in the painting chamber.
2. Energy efficiency due to gas burners and air recirculation.
3. High painting quality thanks to sealing and powerful lighting.
4. Durability and minimal maintenance costs for the drying chamber.

Conclusion

This project marked TWEKO’s first experience in creating a dual painting chamber for wagons of such scale. The implementation for Diesel Plant LLC in 2011–2012 demonstrated our ability to tackle complex technical challenges and deliver durable drying chambers for large-scale equipment. We are proud of this collaboration and ready to offer similar complexes to other enterprises in the railway and industrial sectors.
