In June 2026, the TWEKO team designed and manufactured a compact ASS Cabin series exhaust paint booth, model ASS-Cabin-1, for a Ukrainian research and manufacturing company. The solution is equipped with a two-stage dry filtration system, a ventilation unit with a capacity of up to 2200 m³/h, and a working area of 1000 × 900 mm, ensuring safe and comfortable painting operations.
TWEKO Solution

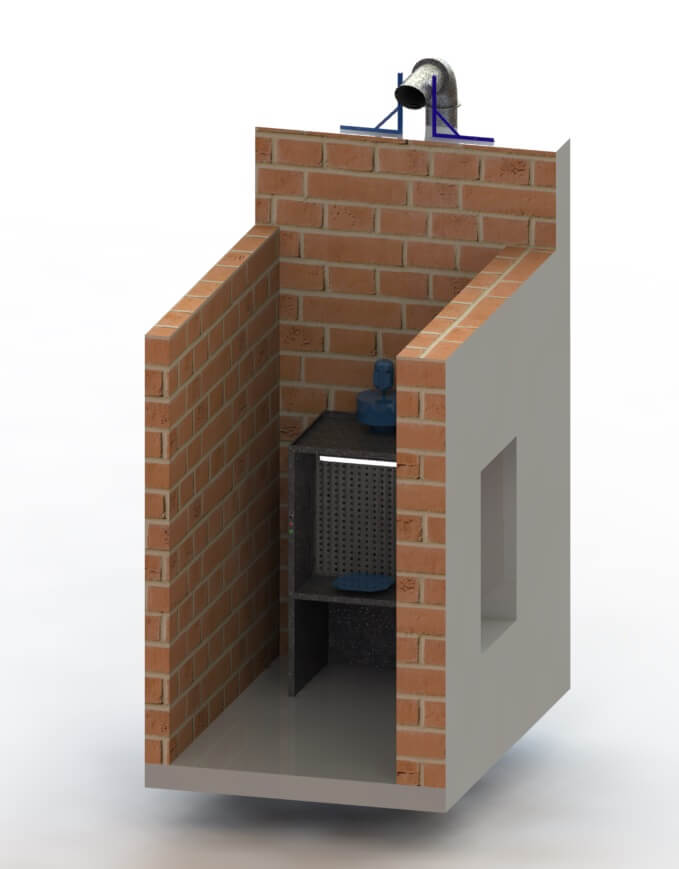

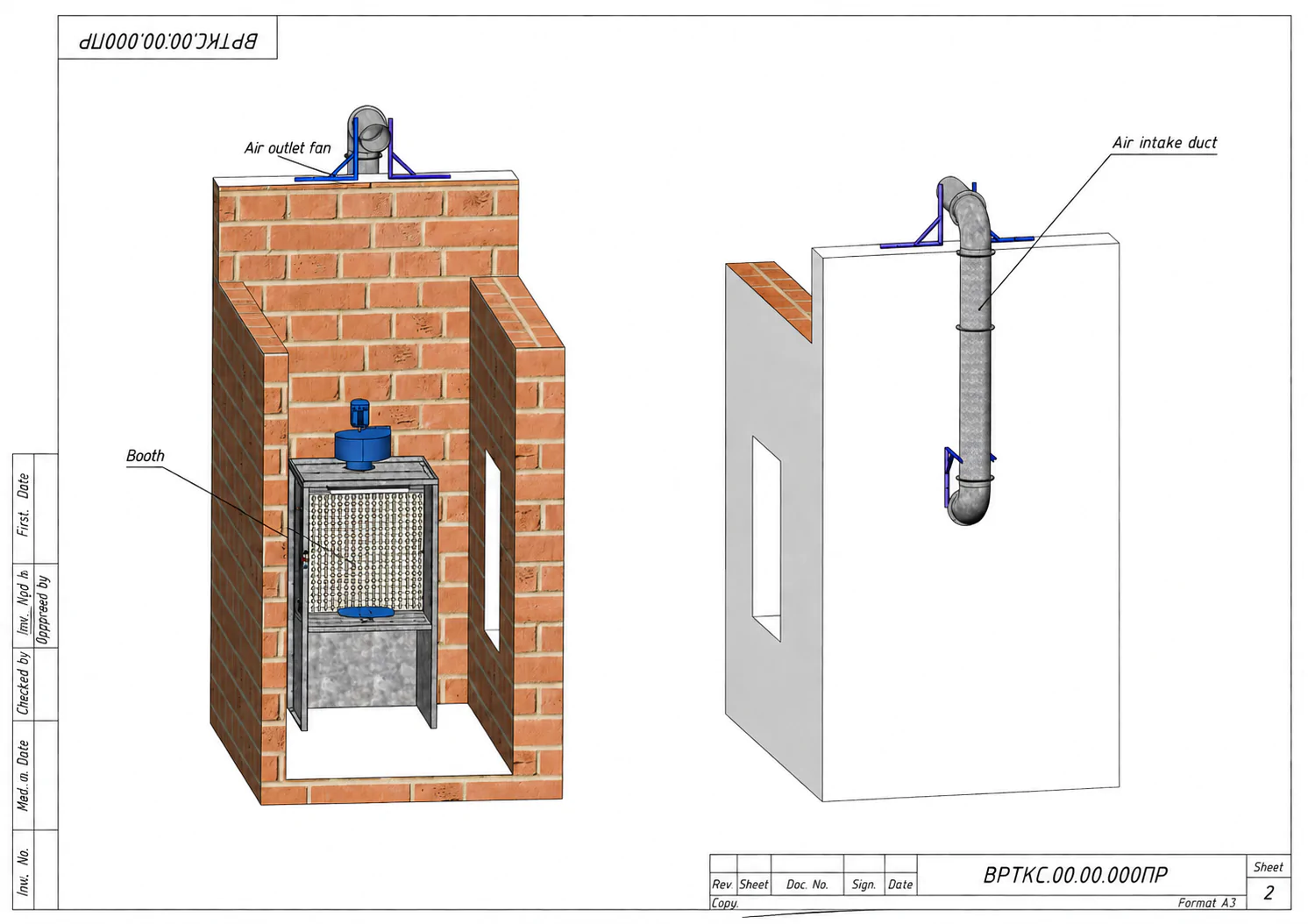

To implement the project, the TWEKO team designed and manufactured a compact ASS Cabin (ASS-Cabin-1) dry-filter exhaust paint booth for applying liquid coatings to small components. The design ensures local removal of paint overspray directly from the spraying area.

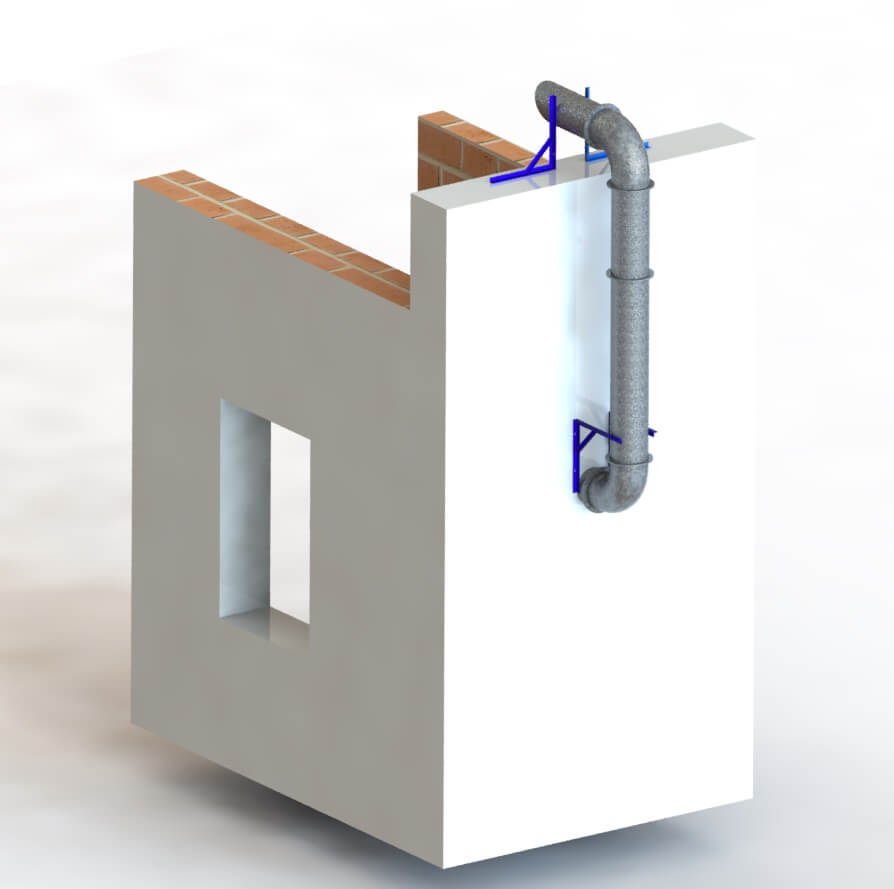

The booth features a two-stage dry air filtration system consisting of a cardboard labyrinth filter for primary filtration and a fiberglass Paintstop filter for fine filtration. The airflow is generated by a medium-pressure centrifugal fan with a capacity of 470–2200 m³/h, providing an air velocity in the working area of 0.25–0.4 m/s. This allows efficient capture of excess coating material and cleaning of the air before discharge into the atmosphere.
The booth has overall dimensions of 1100 × 2410 × 1000 mm and a working area with a width of 1000 mm and height of 900 mm, which is ideal for painting small parts. For operator comfort, a rotary table measuring 450 × 450 mm is provided, along with LED lighting with IP66 protection rating. The ventilation system maintains an air velocity of 0.25–0.4 m/s in the working area, ensuring stable and efficient booth operation.
![2-1[1]](https://t-weko.com/wp-content/uploads/sites/18/2026/07/2-11.jpg)
Technical Specifications
| Overall Dimensions | |
|---|---|
| Dimensions of the exhaust booth (W × H × D) | 1100 × 2410 × 1000 mm |
| Working area dimensions (W × H) | 1000 × 900 mm |
| Rotary table size | 450 × 450 mm |
| Weight | 145 kg |
| Filtration | |
| Filtration type | Dry, two-stage |
| First stage | Cardboard labyrinth filter, area 1 m², holding capacity ≈12 kg/m²* |
| Second stage | Fiberglass Paintstop filter, area 1 m², holding capacity ≈3.5 kg/m²* |
| Ventilation Unit | |
| Fan type | Medium-pressure centrifugal fan |
| Capacity | 470–2200 m³/h |
| Air velocity in the working area | 0.25–0.4 m/s |
| Lighting | |
| Luminaire type | LED, IP66 |
| Luminaire power | 18 W |
| Number of light fixtures | 1 pc. |
| Requirements | |
| Power supply | 3 phases / 380 V / 50 Hz |
| Foundation requirements | Maximum floor level deviation: ±5 mm |
* Holding capacity depends on the type of coating material.
When choosing painting equipment, it is important to consider not only the required performance but also the specifics of the technological process. In this project, the compact exhaust paint booth ASS-Cabin-1 proved to be the optimal solution, combining efficient air filtration, operator comfort, and minimal production space requirements.
Need a compact painting solution?
If your production process does not require a full-size paint booth for coating small components, TWEKO specialists will help you select a compact solution that ensures efficient air filtration, comfortable working conditions, and optimal use of production space.
