Compact Dry Filter Spray Booth: Aspiration System Dry Cabin 1

In Stock

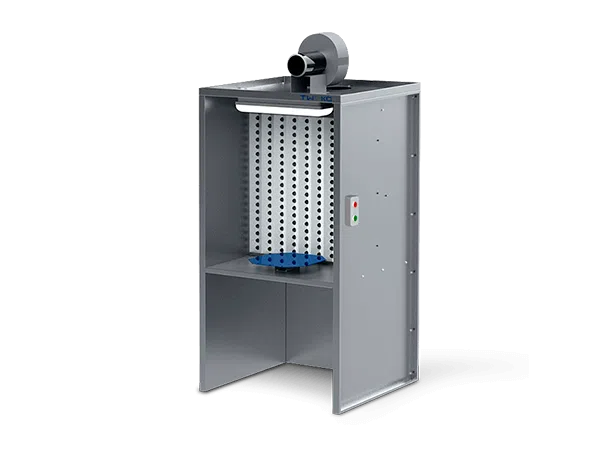

The Aspiration System Dry Cabin 1 is the most compact dry-filter spray booth in the series: an extraction wall with two-stage dry filtration, a protective mini booth, a sealed LED luminaire and a manual turntable for coating small and medium-sized products made of wood, metal and plastic. Installation only requires exhaust ducts and a power cable.


Two-stage dry filtration, efficiency ≥95 %Manual turntableProtective mini boothSealed IP66 LED luminaireNo construction work required

Product type: Dry filter fume hood
Series: ASS Cabine
Application: For wood, plastic, metal
Type of filtration: Dry, two-level
Price from
1 900 USD
Download brochure Download full catalog Download the questionnaire

The Aspiration System Dry Cabin 1 is the most compact dry-filter extraction wall in the Aspiration System Dry Cabin series. It helps create safer and more comfortable working conditions in the paint shop during surface preparation and coating application on small and medium-sized products made of wood, metal, plastic and other materials — wherever the process does not require a full-size spray booth. The protective mini booth keeps paint mist from spreading sideways, and the turntable allows the product to be coated from all sides without repositioning it.

Installation requires no construction work: only exhaust ducts and a power cable need to be connected, so the wall can be installed quickly in almost any room.

Furniture and frame workshopsPaint colour-matching laboratoriesLight industrySmall metal products

How It Works

The painter places the product on the turntable in the working zone, and the ventilation unit creates an airflow in the spraying zone. Overspray that misses the product is captured by the airflow and passes through two-stage dry filtration. The filtered air is then discharged outdoors through the ventilation unit and the exhaust ductwork.

1 × 1extraction opening, m
2,200airflow capacity, m³/h
0.4air velocity in the working zone, m/s
≥95filtration efficiency, %

The 500 mm deep protective panels enclose the working zone at the sides and top, so overspray stays inside. The 0.45 × 0.45 m table rotates about its central axis, so the product can be turned to the required side without removing it from the table.

Two-Stage Dry Filtration

Spraying zoneCardboard labyrinth filterPaintStop fibreglass filterVentilation unitExhaust ducts

The first stage is a cardboard labyrinth filter that captures most of the paint particles, with a paint-holding capacity of approximately 12 kg/m² depending on the coating material. The second stage is a PaintStop-type fibreglass filter in a removable cassette, with a capacity of approximately 3.5 kg/m². Together, the two stages provide a filtration efficiency of at least 95 %, corresponding to filtration class EU4.

Each filter has an area of 1 m². Depending on operating intensity and paint consumption, filters may require replacement after approximately 180 operating hours.

Typical Applications

  • Paint shops in furniture workshops and factories, frame workshops, light industry and small metal product manufacturing.
  • Paint colour-matching laboratories.
  • Small and medium-sized products and parts made of wood, metal, plastic and other materials.
  • Coating materials — primers, paints (including water-based), enamels and varnishes.

Construction

  • Housing and mini booth — galvanised steel panels, 1.5 mm thick.
  • Turntable — manual, 0.45 × 0.45 m, made of painted steel sheet, 4 mm thick.
  • Ventilation unit — medium-pressure centrifugal fan in a non-sparking design with a 0.75 kW asynchronous motor and a flexible hose, manufactured in Ukraine.
  • Filtration — cardboard labyrinth filter with clamps and a cassette with a 50 mm thick PaintStop-type fibreglass filter.
  • Lighting — sealed 18 W LED luminaire, IP66.
  • Start/Stop control panel with a lighting switch, electrical installation kit and set of fasteners.

Safety and Installation

  • Non-sparking ventilation unit.
  • The equipment is approved by the State Labour Service of Ukraine for use in Ukraine.
  • Power supply: 3-phase, 380 V, 50 Hz; with a variable-frequency drive, the motor can be connected to a single-phase 230 V supply.
  • The floor at the installation site must be level to within ±5 mm.
  • Suitable for indoor premises, including intermittently heated rooms (climatic category U3.1).
  • An explosion-proof version is available on request.

Custom Configuration

The extraction wall can be supplemented with:

  • Additional enclosure section — extends the working zone depth by 1 m for even better overspray capture.
  • Airflow control system based on a variable-frequency drive — up to 40 % reduction in power consumption and single-phase motor connection to a 230 V supply.
  • Duct kit for connecting the ventilation unit, mounted on the wall next to the extraction wall or on the floor to its right or left.
  • Mini booth with product rotation mechanism — mounted on the top panel of the wall, it allows products to be suspended and rotated directly in front of the extraction zone.
  • Motorised turntable (adds 5 working days to the manufacturing time).
  • Powder-coated housing in any colour instead of galvanised panels.

Manufacturing time: up to 12 working days; explosion-proof version: up to 40 working days. Warranty: 12 months. Service life before the first major overhaul: 3 years; design service life: 10 years.

Need an extraction wall for your project?

We will select the model and configuration to suit your products and premises.

Aspiration System Dry Cabin 1 Extraction Wall Scope of Supply

Basic configuration*

Component Quantity
Construction
Housing made of galvanised steel panels 1 pc
Manual turntable 1 pc
Set of fasteners 1 set
Ventilation
Non-sparking ventilation unit 1 pc
Electric motor 1 pc
Filtration
Cardboard labyrinth filter 1 pc
Filter cassette with PaintStop-type fibreglass filter 1 pc
Lighting and control
Sealed LED luminaire 1 pc
Control panel 1 pc

* The scope of supply is given for the basic configuration and may vary depending on the customer’s technical specification.

Aspiration System Dry Cabin 1 Extraction Wall Technical Specifications

Basic configuration*

Parameter Value
Dimensions and weight
Overall dimensions (L×W×H), m 1.1 × 1 × 2.5
Extraction opening (W×H), m 1 × 1
Turntable (L×W), m 0.45 × 0.45
Weight, kg 145
Filtration
Filtration system dry, two-stage
Effective filter area, m² 1
Ventilation
Airflow capacity, m³/h 2,200
Air velocity in the working zone, m/s 0.4
Motor power, kW 0.75
Lighting
LED luminaire, 18 W, IP66, pcs 1
Electricity
Power supply 3-phase, 380 V, 50 Hz

* Specifications are given for the basic configuration.
