For TOV «OSK-TECHNOLOGY», a mobile industrial spray booth of the MKF series with a working area of 15×5×5 m was implemented. The solution is designed for large parts painting, enabling process localization and effective removal of paint aerosols within the production facility. The booth is equipped with a dry multi-stage filtration system and ventilation with a capacity of 25,000 m³/h. As a result, a controlled painting zone was established and working conditions were improved (quantitative indicators are not available in the source materials).
About the client
TOV «OSK-TECHNOLOGY» is a Ukrainian manufacturer of metal products for heavy industry, including the coal mining sector. Founded in 2014, the company relocated its production facilities from Donetsk to Kharkiv and continues to expand its product range.
Project objective — to organize a large equipment painting booth without expanding production areas, ensuring process localization, removal of paint aerosols and VOC vapors, handling of products up to 15 m in length, and efficient use of workshop space.
Solution

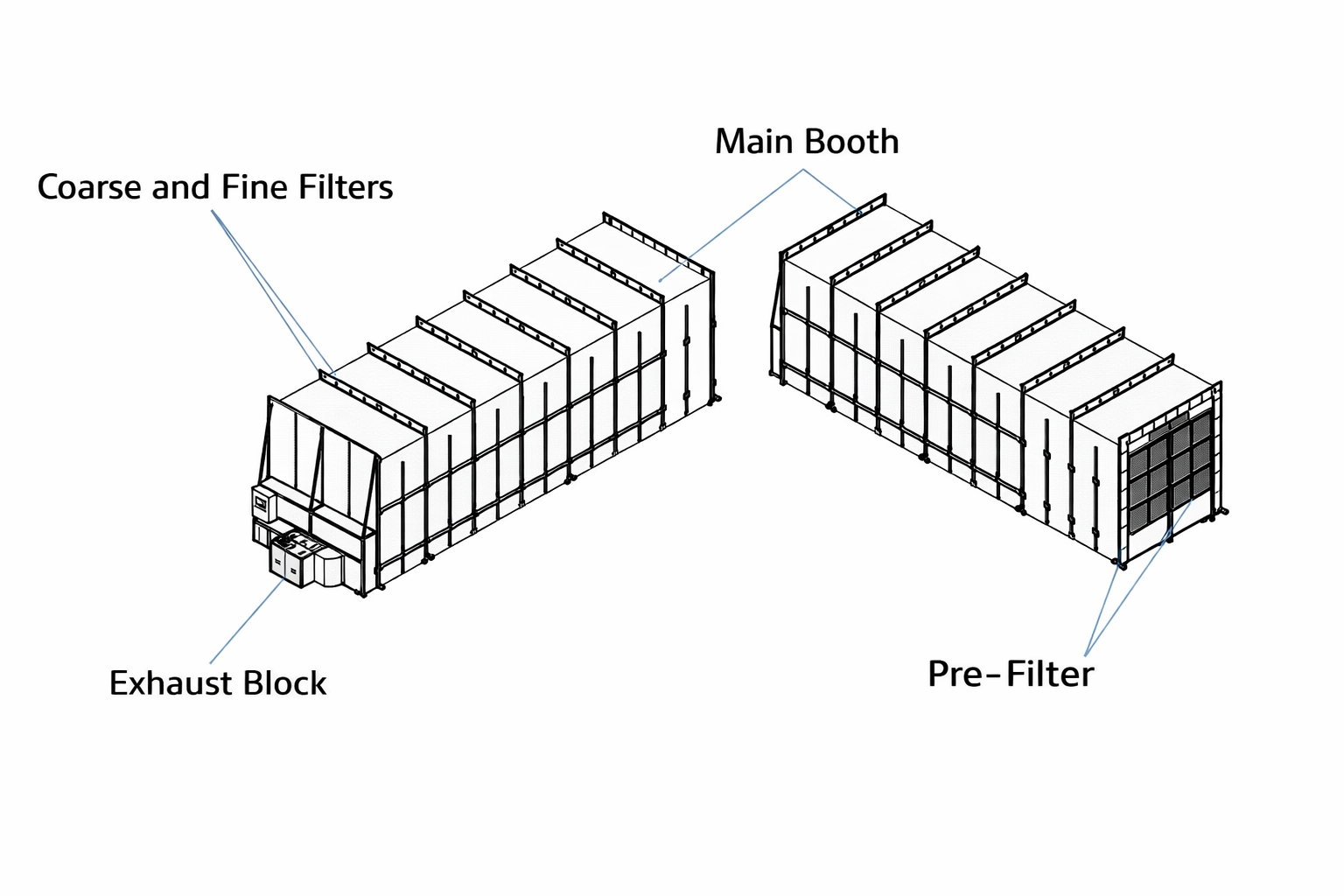

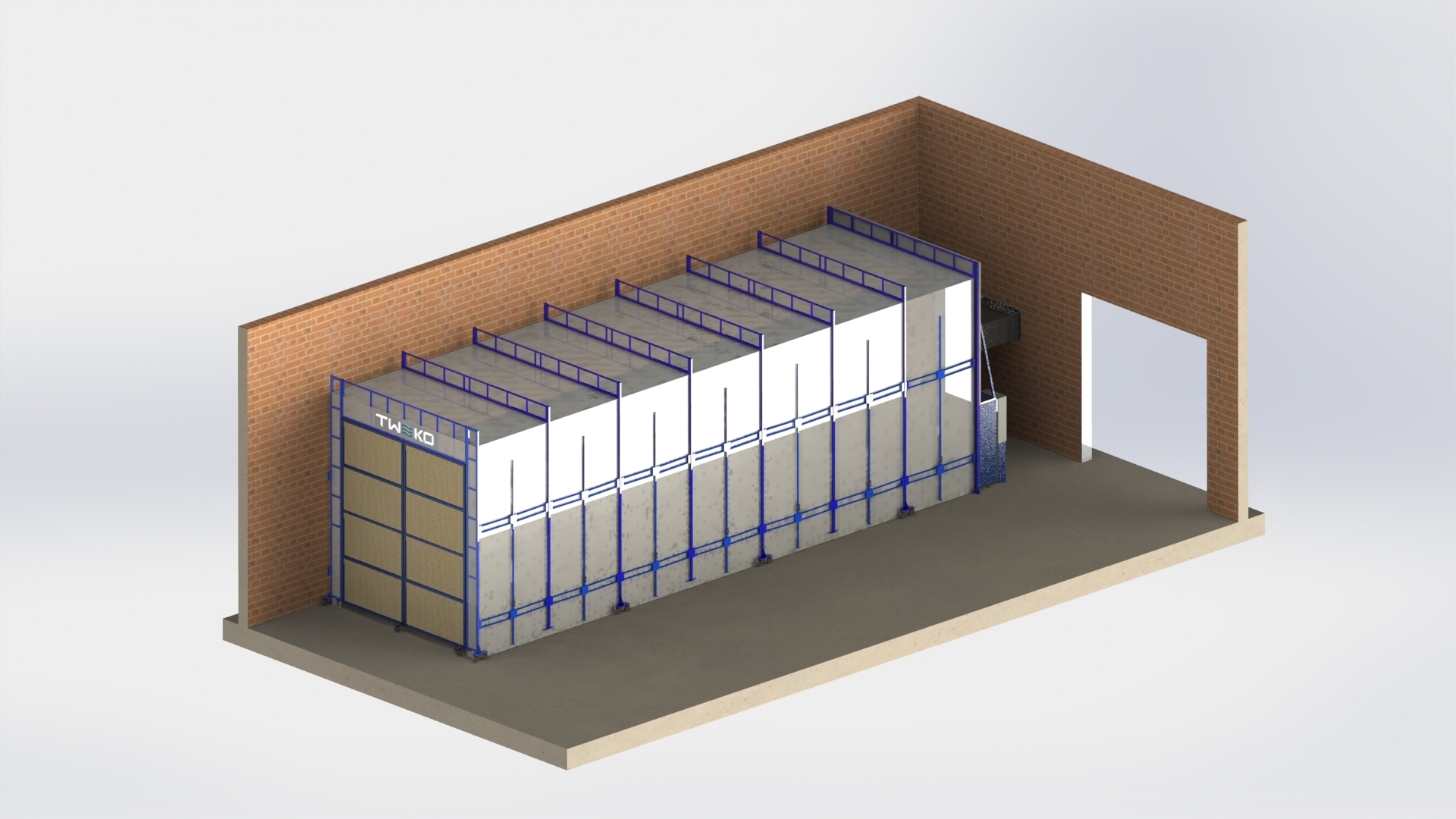

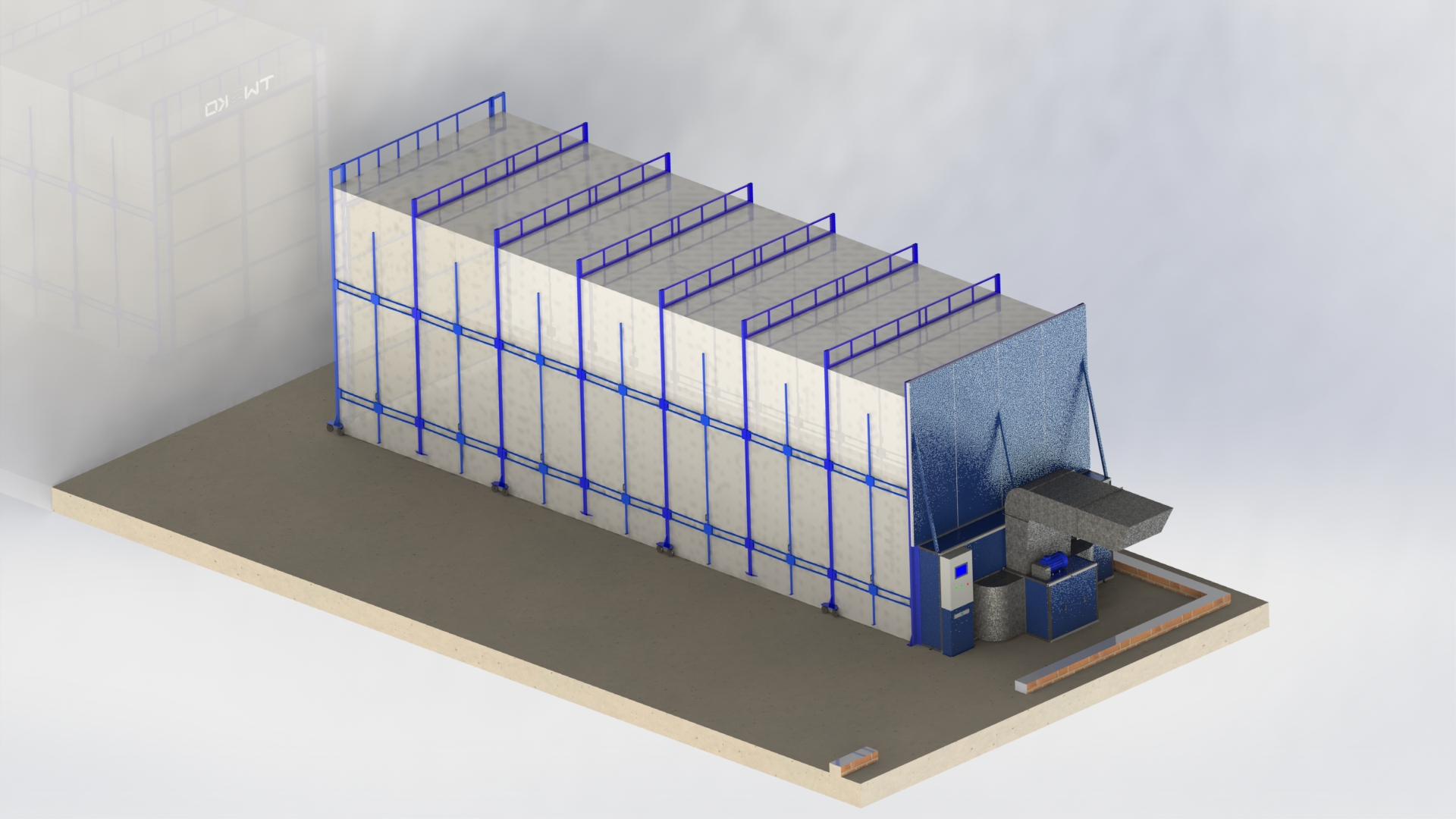

As part of the project, TWEKO manufactured and implemented a mobile spray booth for metal structures — a telescopic MKF series unit mounted on wheels. The design allows the enclosure to be deployed directly around the product, eliminating the need to move large workpieces. Air is supplied through front-mounted filters, passes through the working area, captures paint aerosol, and is removed by an exhaust system through a multi-stage filtration unit.

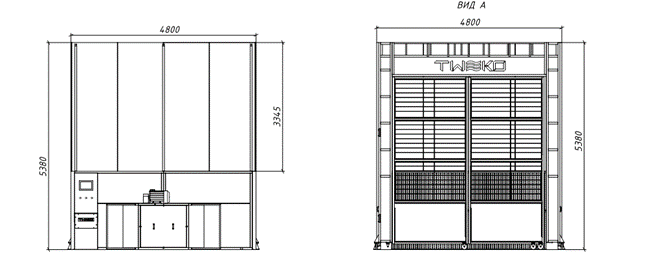

Main technical specifications
| Parameter | MKF-15 Industrial Spray Booth (mobile, sliding) |
|---|---|
| General characteristics | |
| Equipment type | Mobile industrial spray booth (sliding, telescopic) |
| Application | Large parts painting and aerosol containment |
| Application method | Pneumatic manual spraying |
| Dimensions | |
| Working area (L × W × H) | 15,000 × 5,000 × 5,000 mm |
| Operating dimensions | 17,100 × 5,100 × 5,100 mm |
| Folded dimensions | 4,100 × 5,100 × 5,100 mm |
| Gate dimensions | 4,000 × 4,500 mm |
| Construction | |
| Structure | Steel frame on wheels |
| Cladding | Tarpaulin + sandwich panels (rear wall) |
| Mobility | Telescopic sliding structure, floor-mounted movement |
| Ventilation and filtration | |
| Ventilation type | Exhaust with filtered air intake (longitudinal airflow) |
| Air capacity | 25,000 m³/h |
| Air velocity | 0.28 m/s |
| Filtration | Dry multi-stage filtration |
| Filters | Pre-filter, labyrinth filter, fiberglass filter |
| Power and operation | |
| Fan power | 11 kW |
| Total power | 13 kW |
| Power supply | 380 V / 50 Hz |
| Lighting | LED lighting (ceiling and side) |
| Noise level | up to 70 dB |
| Functional features | |
| Process | Painting without drying mode |
| Temperature control | Not provided |
| Application scope | Metal structures, anti-corrosion coating |
Operation principle, result and features
- Air is supplied through a pre-filter, flows through the working area, captures paint aerosol, and is removed by the exhaust system
- Localization of the painting process and reduction of paint mist spread
- Improved working conditions for personnel
- Suitable for large parts and heavy structures
- Provides basic process containment without drying or precise airflow control
Result
The project was completed within the agreed timeframe. The industrial spray booth meets the customer’s technical requirements and has been successfully integrated into the production workflow.
TOV «OSK-TECHNOLOGY»
