TWEKO designed, manufactured, and commissioned a custom paint booth with a dry filtration system for an enterprise specializing in the fabrication and processing of large-scale metal structures. The solution was implemented as stationary equipment with a linear layout and fully integrated engineering systems. The project was executed in accordance with the specific production requirements of the customer — from engineering design and equipment manufacturing to installation and commissioning directly at the production site.
About the Client
The project customer is TAD, an industrial enterprise and Ukrainian manufacturer of special trailers designed for transporting oversized, heavy, and non-standard cargo. The company’s production facilities are located in the Khmelnytskyi region of Ukraine.
TAD specializes in the development and production of trailer equipment tailored to individual customer requirements and serves the needs of logistics, industrial, and infrastructure projects.
High-quality surface preparation, painting, and drying of large-scale metal structures play a critical role in TAD’s production process. Given the size of the products and the specific nature of their portfolio, the company required paint booth and drying equipment customized to match their product range, workshop layout, and internal technological processes.
Solution
TWEKO developed a comprehensive engineering solution for painting and drying large-scale metal structures, taking into account the specifics of TAD’s production, product dimensions, and the layout of the existing workshop. The project covered the full scope of work — from detailed engineering and structural adaptation to equipment manufacturing, installation, and commissioning on site.

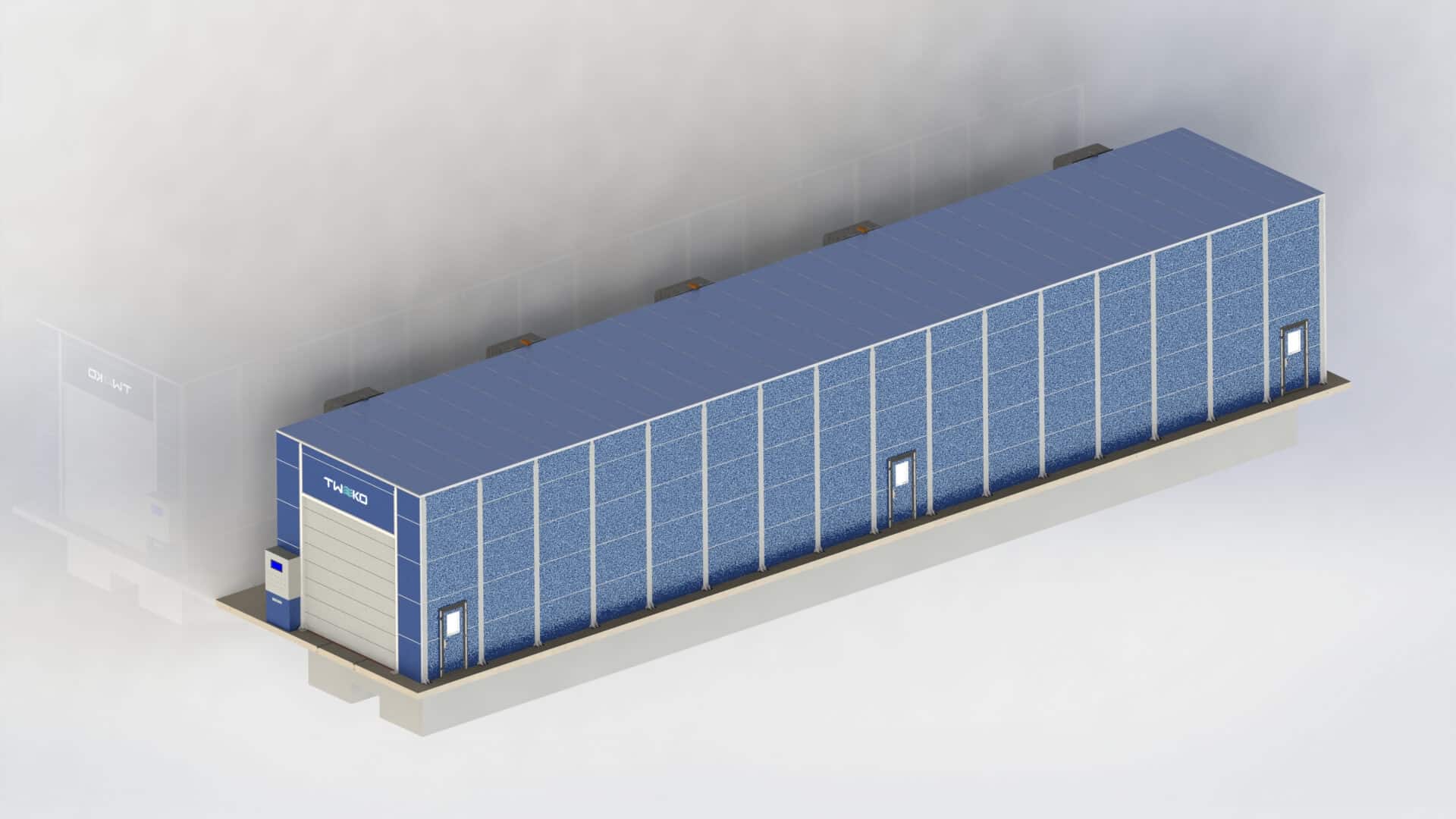

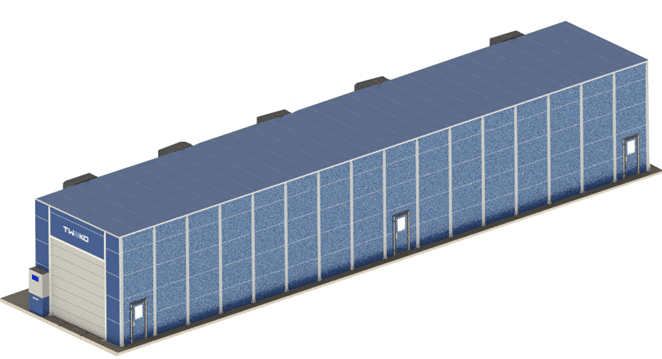

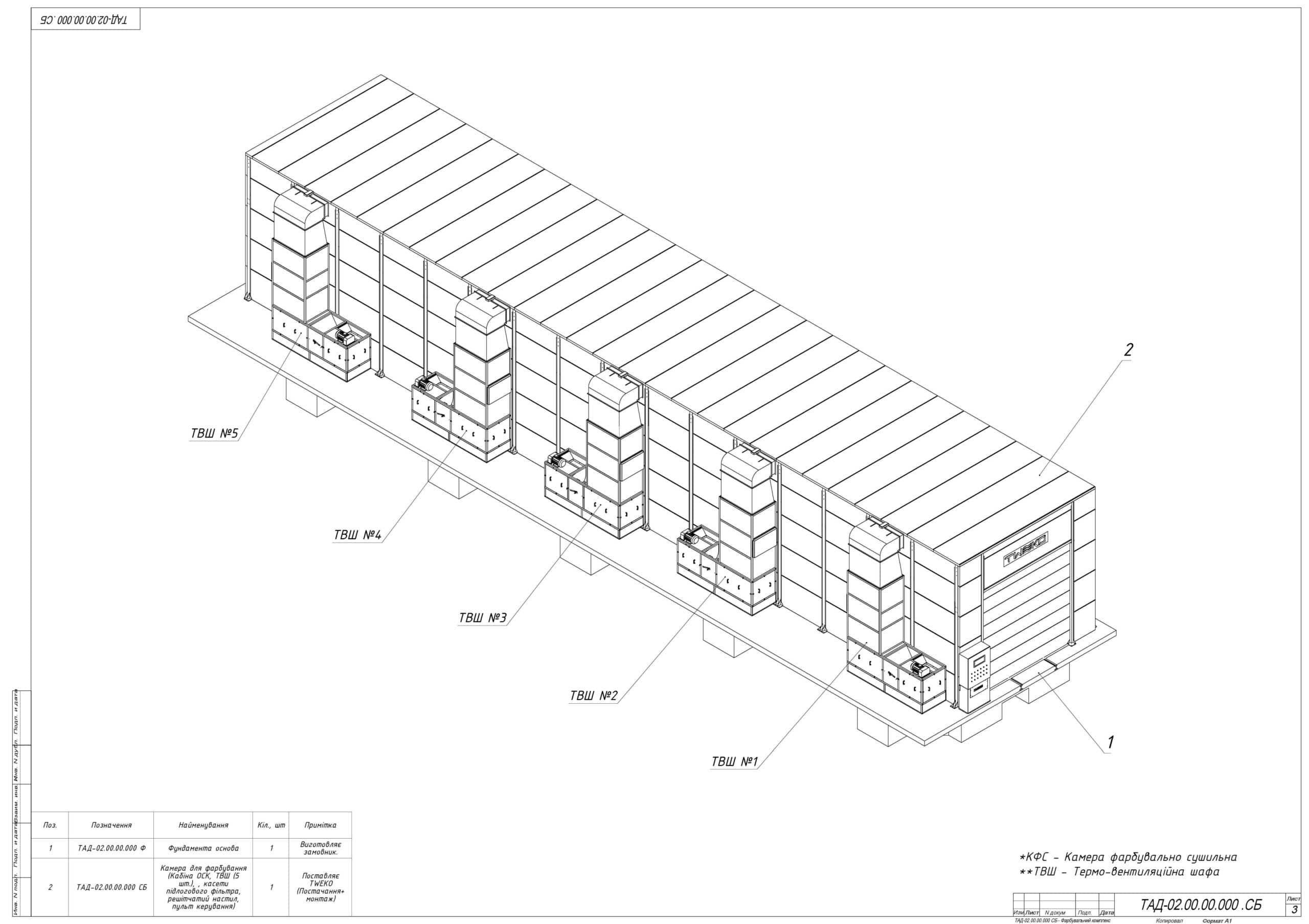

At the core of the solution is a stationary paint booth of the IKFS series, model IKFS-Z, featuring a linear layout and fully integrated engineering systems. This approach ensured a logical organization of the technological process, stable processing conditions for extra-long products, and seamless integration into the existing production infrastructure without changing the overall workshop logistics.
The booth is equipped with:
- Supply and exhaust ventilation system with controlled air supply and extraction, creating stable conditions in the working area during application of liquid coatings.
- Dry air filtration system, including a supply air pre-filter, ceiling fine filters, and floor cassettes for capturing paint overspray.

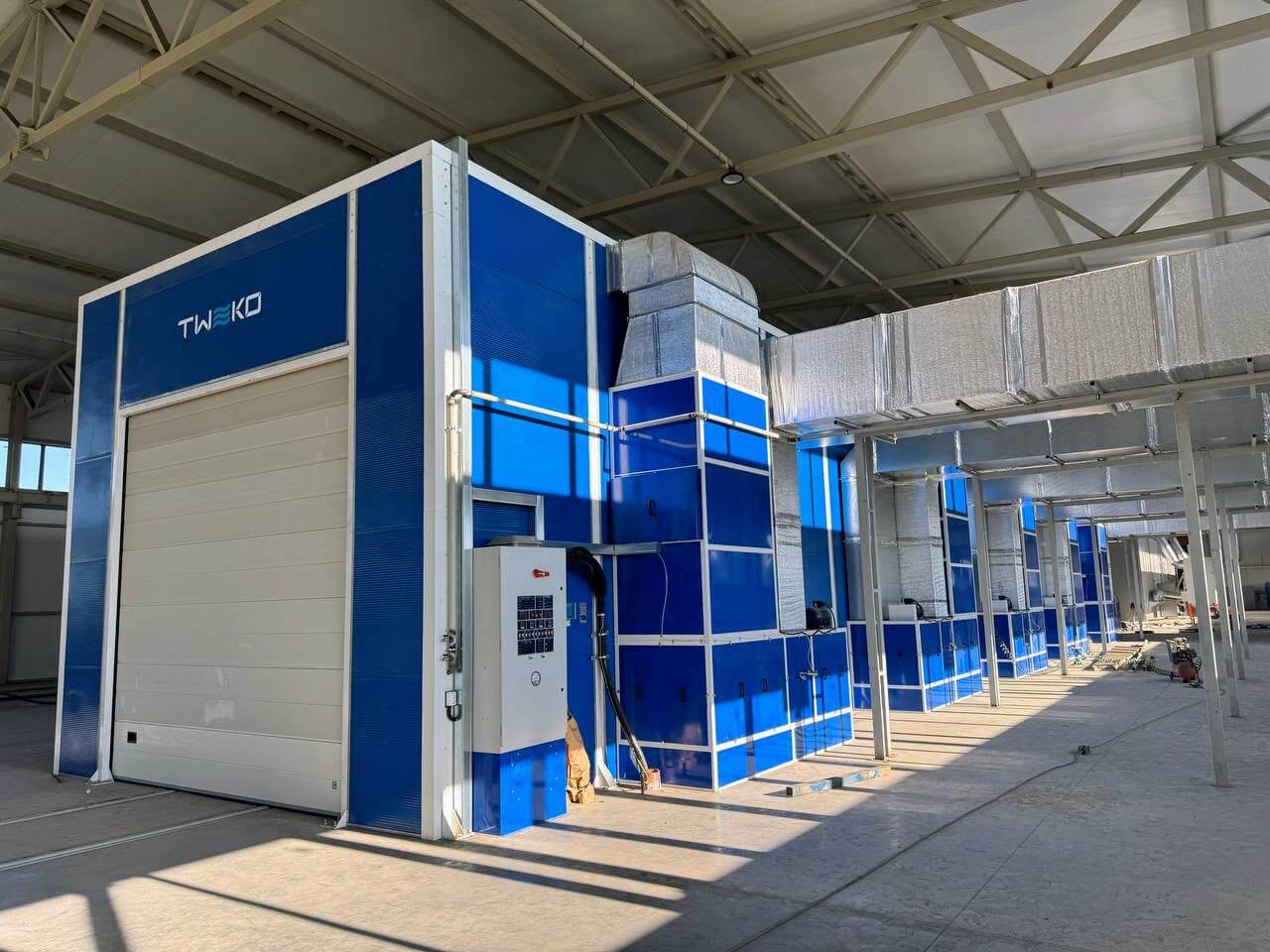

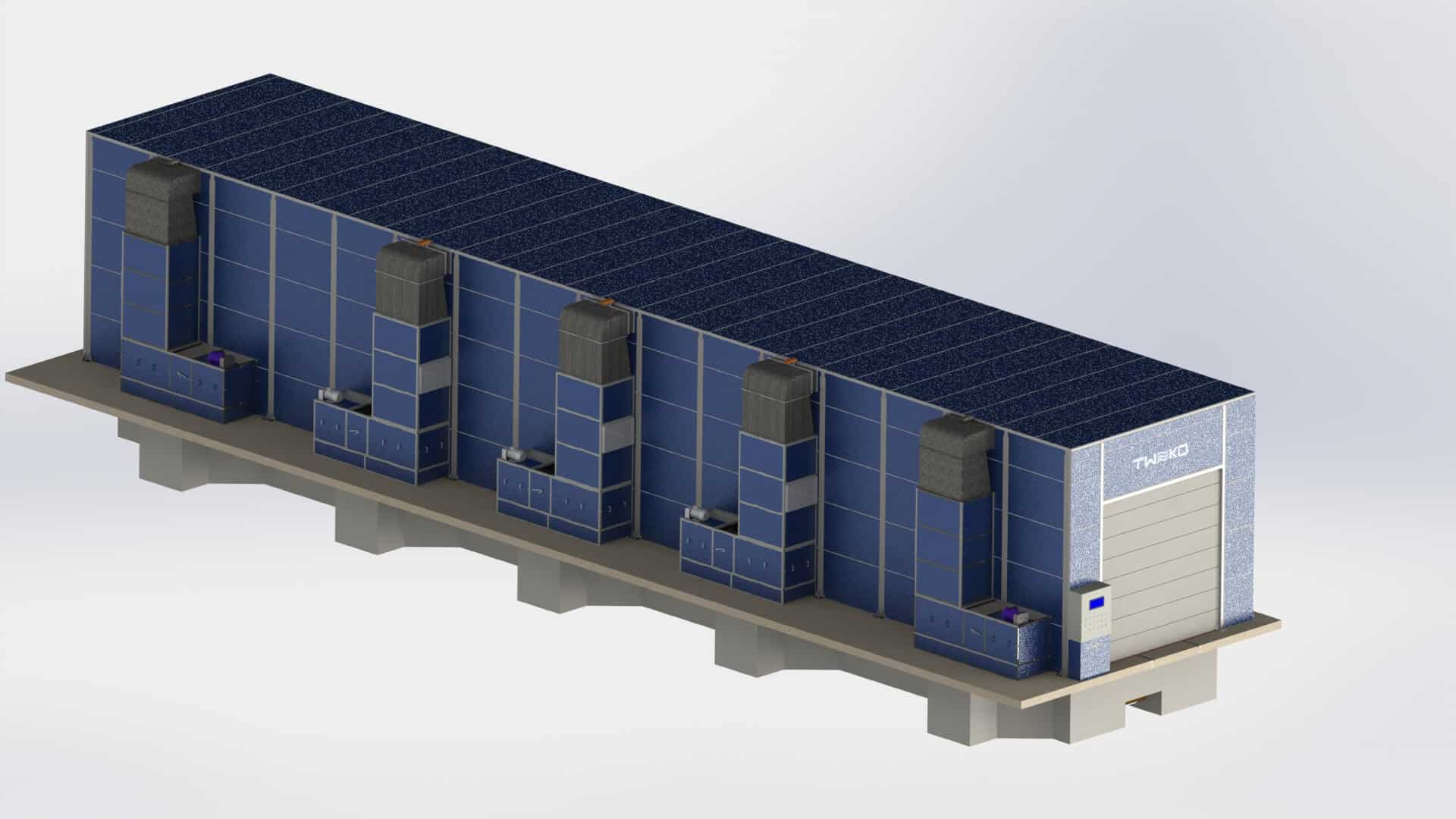

- Thermo-ventilation units integrated into the booth structure, providing air heating and circulation across various technological modes.
- Centralized electrical control panel with status indication of main units and zone-based parameter control, including management of operating modes, lighting, and drying phases (purge, temperature ramp-up, drying, cooling).
- Safety interlocks and monitoring systems that prevent equipment operation under unacceptable temperature, pressure, or engineering system conditions.
- Safety and status indication systems for engineering components, including monitoring of fire damper positions within ventilation modules.
The ventilation and filtration system was designed to meet requirements for dry capture of paint overspray while protecting engineering components. Process control is implemented through a centralized electrical panel with zoned parameter monitoring, allowing operators to manage painting and drying processes according to production needs.
The solution was executed as a fully custom project, adapted to the specific operating conditions and product range of the customer, with a strong focus on reliability, process controllability, and industrial-grade durability.
Technical Specifications
| Parameter | Paint Booth IKFS-Z |
|---|---|
| General Characteristics | |
| Equipment type | Paint booth with dry filtration |
| Series / Model | IKFS-Z |

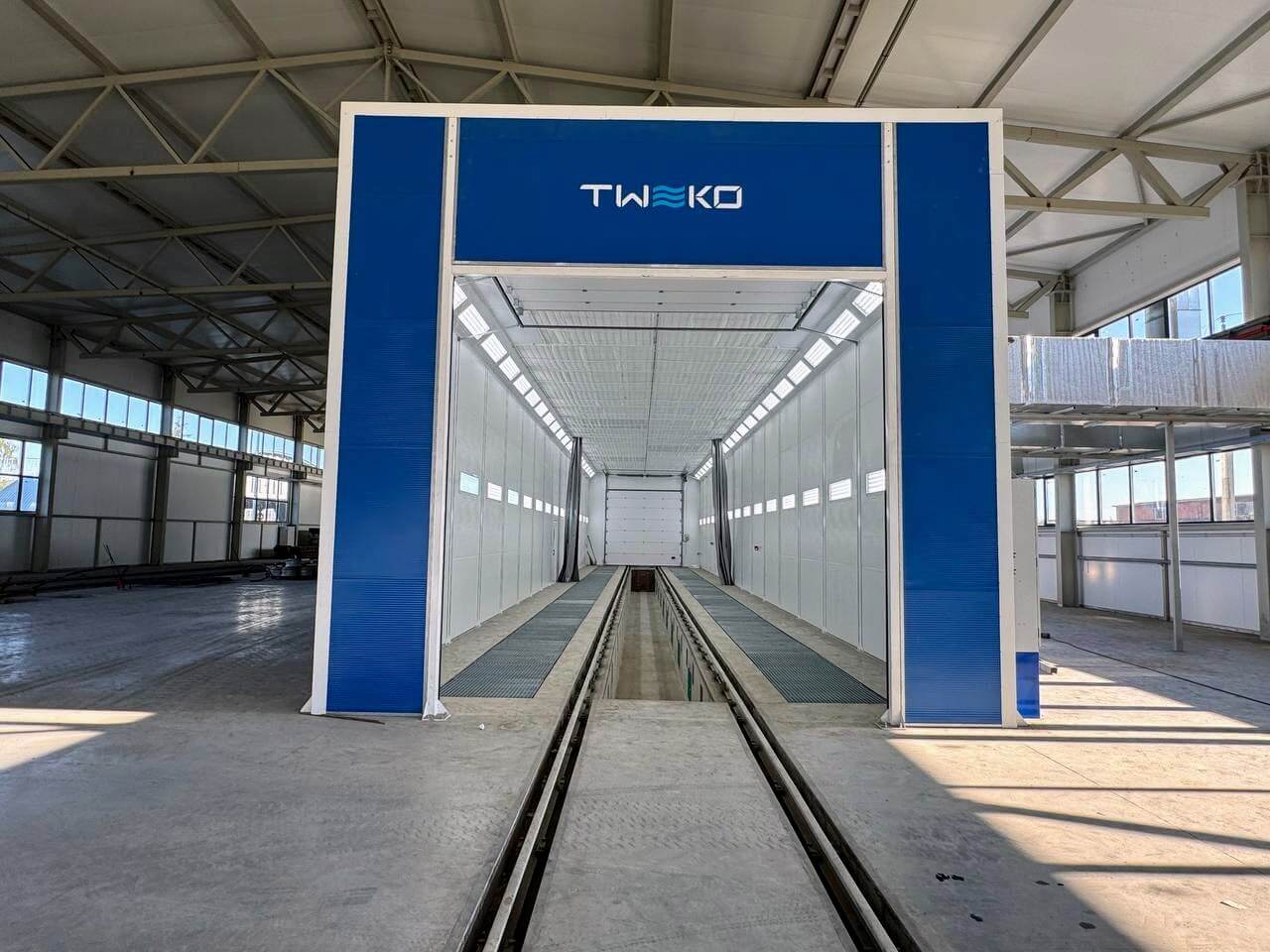

| Configuration | Stationary, linear layout |
| Purpose | Painting and drying of products using liquid coatings |
| Dimensions | |

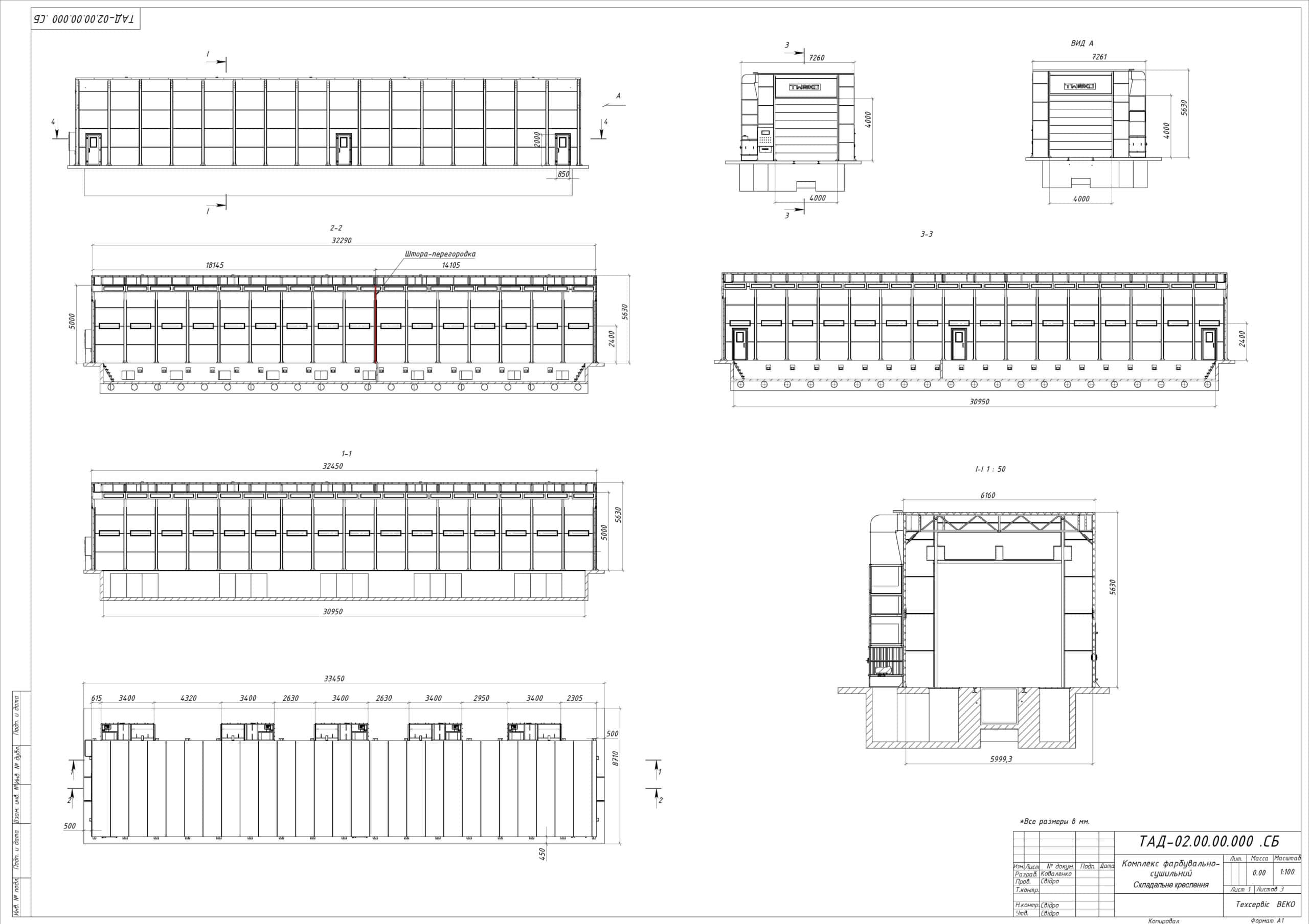

| Internal dimensions (working area, L × W × H) | 32,360 × 6,000 × 5,000 mm |
| External booth dimensions (L × W × H) | 33,450 × 8,710 × 5,630 mm |
| Ventilation and Filtration | |
| Ventilation type | Supply and exhaust |
| Airflow organization | Vertical, top-down |
| Filtration type | Dry: pre-filtration, ceiling, floor |
| Number of thermo-ventilation units | 5 |
| Total ventilation capacity | Up to 130,000 m³/h |
| Power Supply and Lighting | |
| Equipment power supply | 380 V / 50 Hz |
| Lighting power supply | 220 V / 50 Hz |
| Lighting type | LED luminaires |
| Acoustic and Mass Parameters | |
| Noise level | 65 dB — working area / 70 dB — outside |
| Total installed power | 845 kW |
| Equipment weight | 11,540 kg |
| Operating Conditions | |
| Climatic version | UHL 4 (GOST 15150-69) |
| Room classification | Class B-IIa (Electrical Code, 7th edition) |
Key Engineering Features

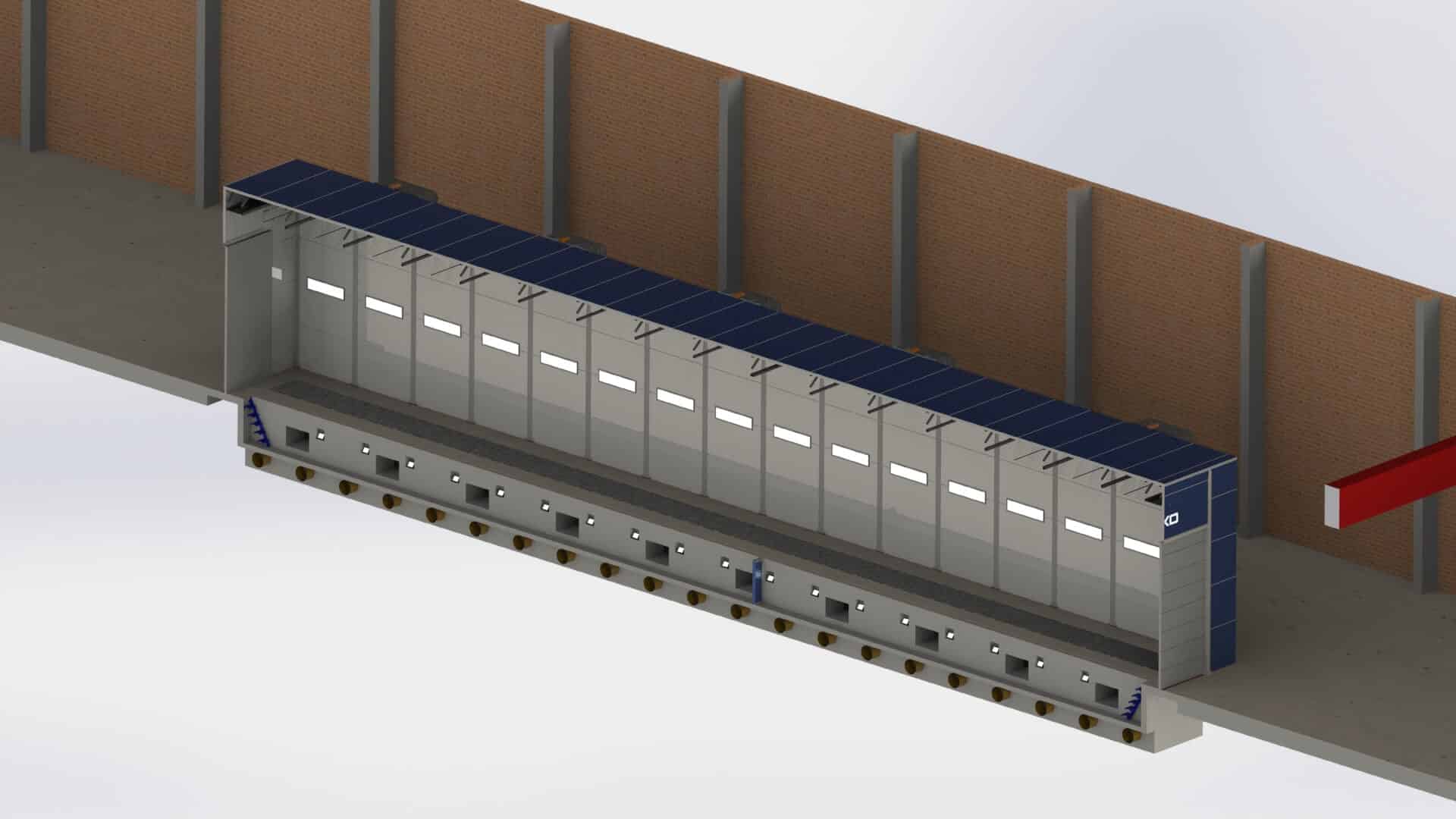

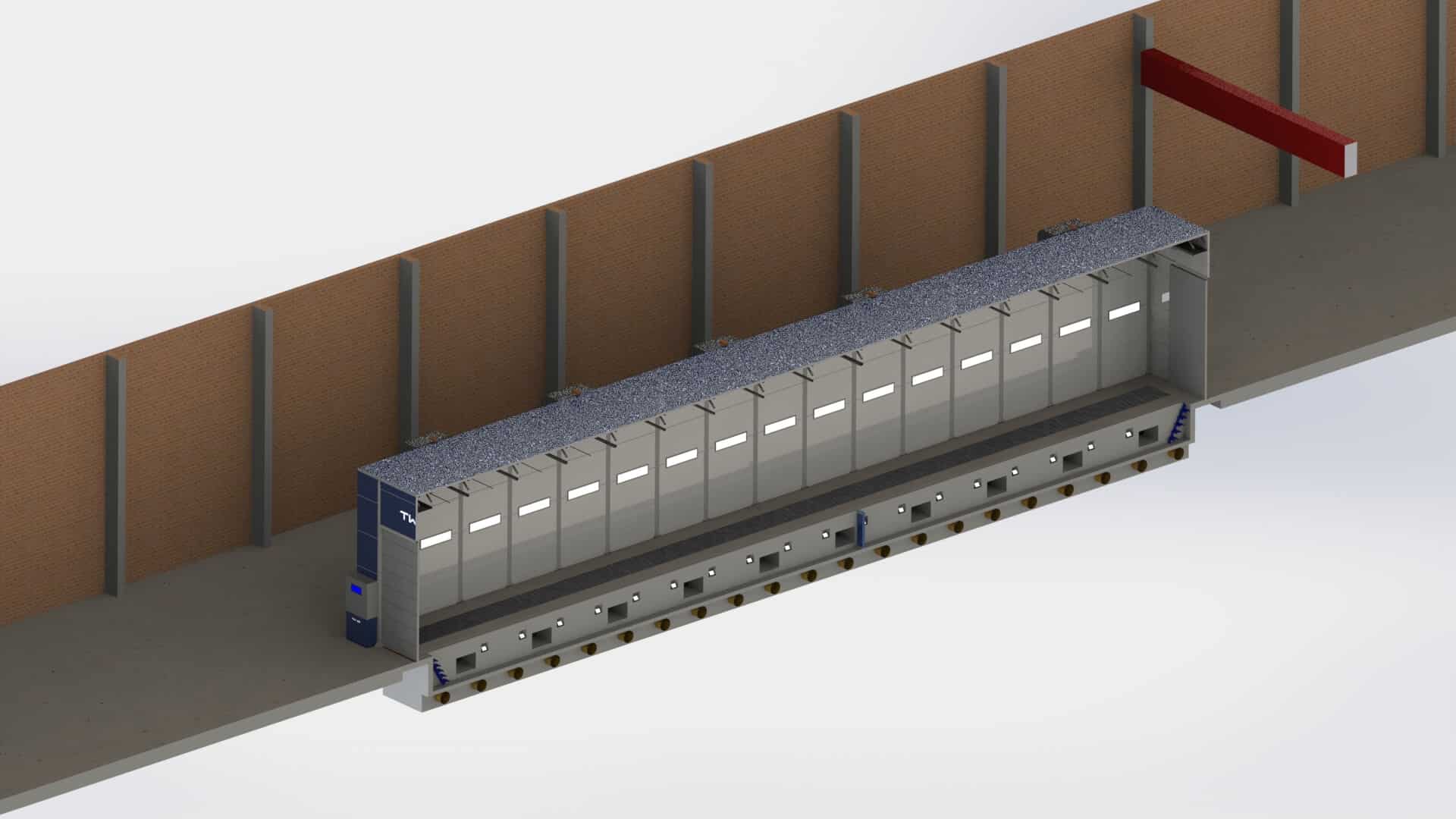

- Linear booth layout. Enables processing of oversized products without complex internal maneuvers and simplifies integration into existing workshop logistics.

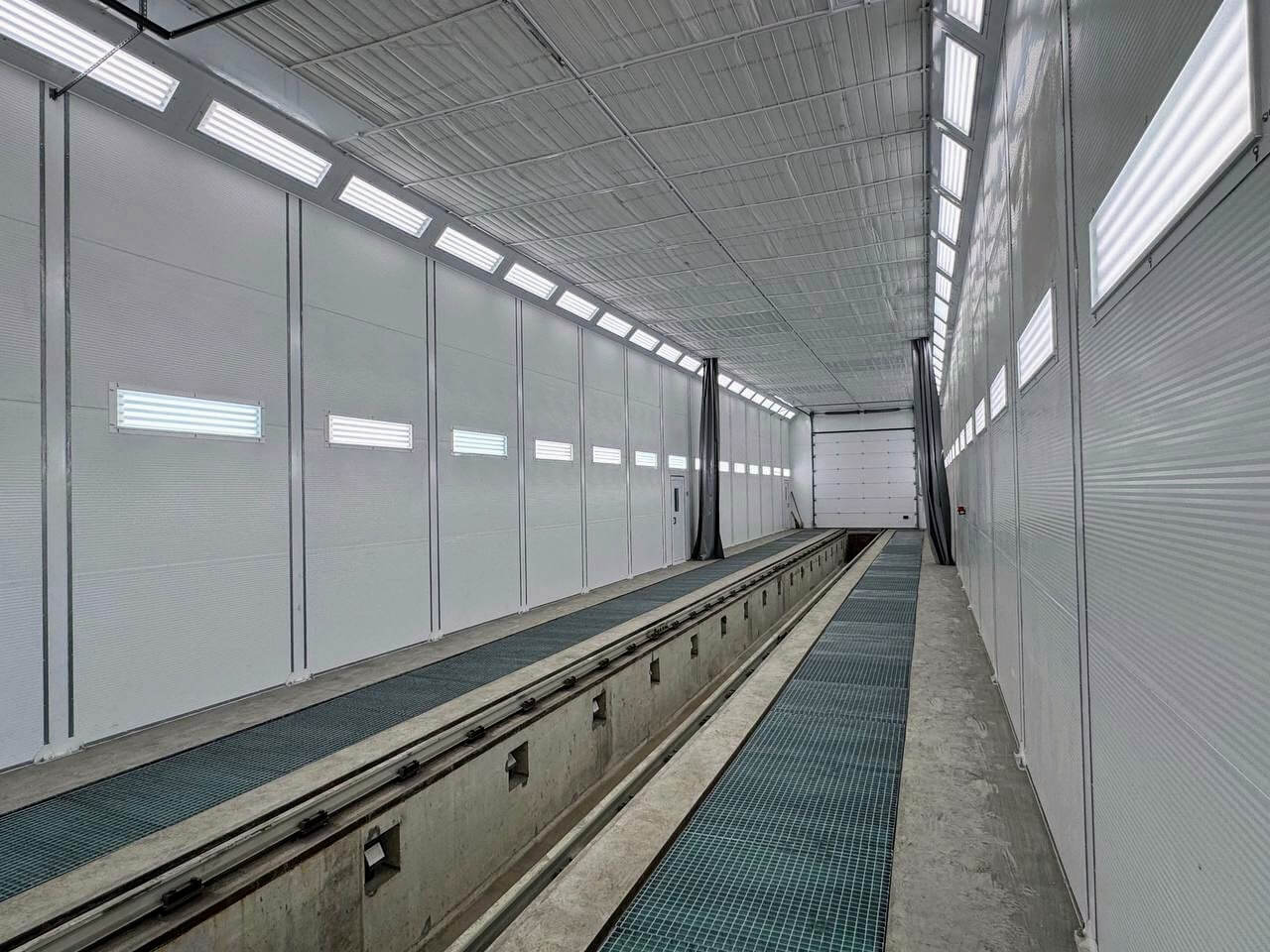

- Vertical airflow pattern. Clean air supplied from above and extracted through the floor ensures stable coating conditions and efficient overspray capture.
- Dry filtration system. Multi-stage dry filtration eliminates the need for water and is fully adapted for industrial operation.
- Distributed ventilation and heating system. Thermo-ventilation units operate as a unified system, providing uniform air circulation and controlled drying modes.
- Zoned process control. Centralized control panel enables precise management of painting, drying, purge, and cooling phases.
- Integrated safety systems. Interlocks and monitoring prevent operation under unsafe conditions, including fire damper position control.
- Full adaptation to customer requirements. Booth structure, engineering systems, and automation were designed specifically for actual operating conditions and product dimensions.
Result for the Customer
As a result of the project, the customer received a complete paint booth and drying solution fully integrated into their existing production chain for manufacturing special trailers. The booth ensures stable and repeatable conditions for painting and drying large-scale metal structures.
Implementation of this custom-designed equipment enabled a controlled and manageable coating process in full compliance with product requirements and internal quality standards. The customer can now process products of varying dimensions within a single technological solution without altering overall production logic.
Integration of ventilation, filtration, and control systems into a unified architecture ensures predictable industrial-grade performance and operational convenience. The delivered solution establishes a solid foundation for further production scaling and capacity expansion.
Conclusion
This project confirms TWEKO’s approach to industrial equipment development — delivering comprehensive engineering solutions tailored to real production conditions and customer-specific requirements. All stages, from design to commissioning, were executed within a unified engineering framework.
The implementation of a custom-designed paint booth enabled seamless integration of new equipment into the existing production infrastructure without disrupting overall process organization. The solution provides a reliable platform for serial production of large-scale metal structures and future growth.
The project demonstrates TWEKO’s readiness to handle non-standard challenges, extreme product dimensions, and complex operating environments — delivering practical, high-value engineering solutions for industrial enterprises.
If your business requires a custom technological solution for surface preparation, painting, and drying of oversized products, the TWEKO team is ready to design, manufacture, and implement equipment tailored to your production specifics and real operating conditions.
