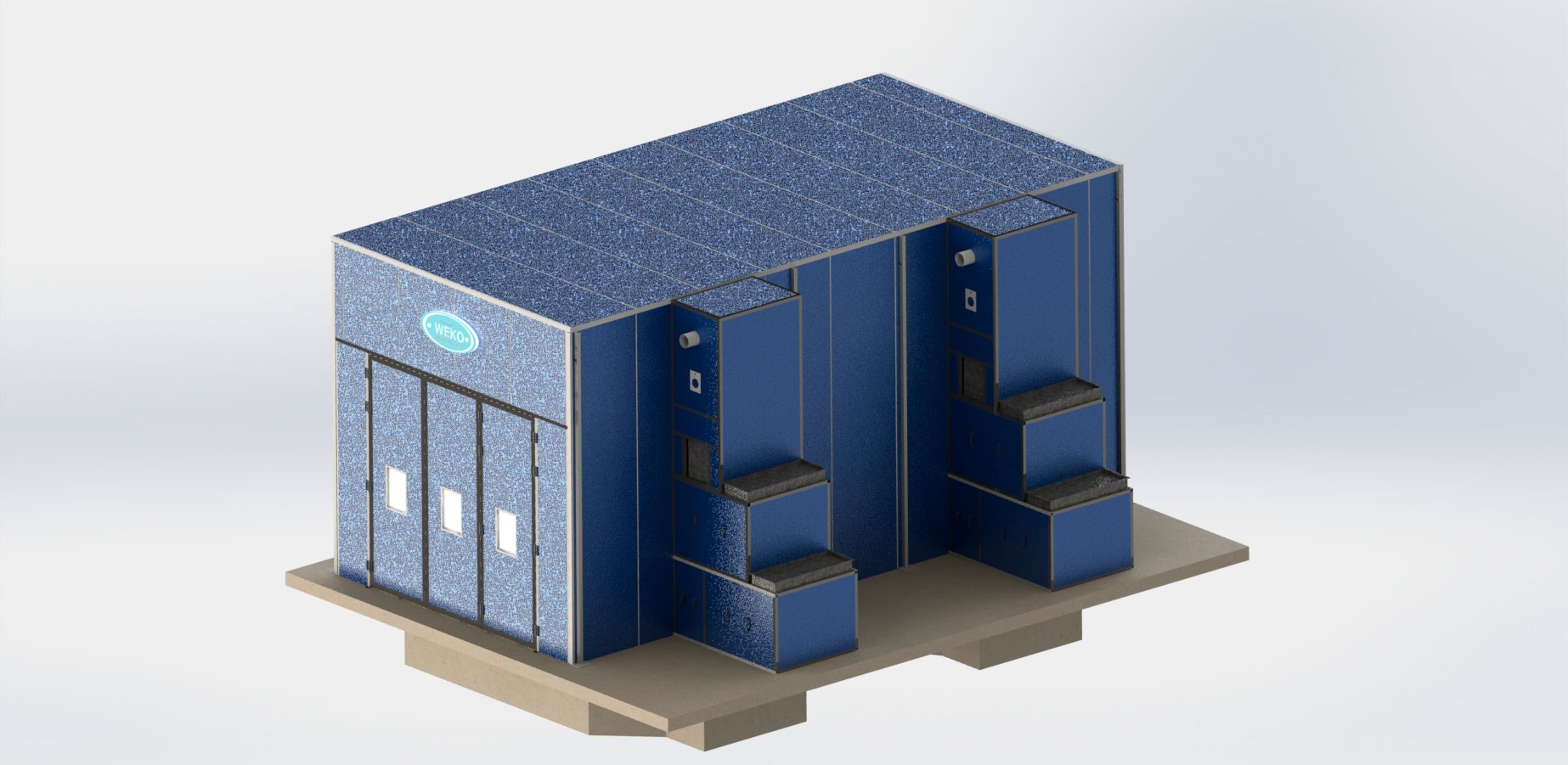

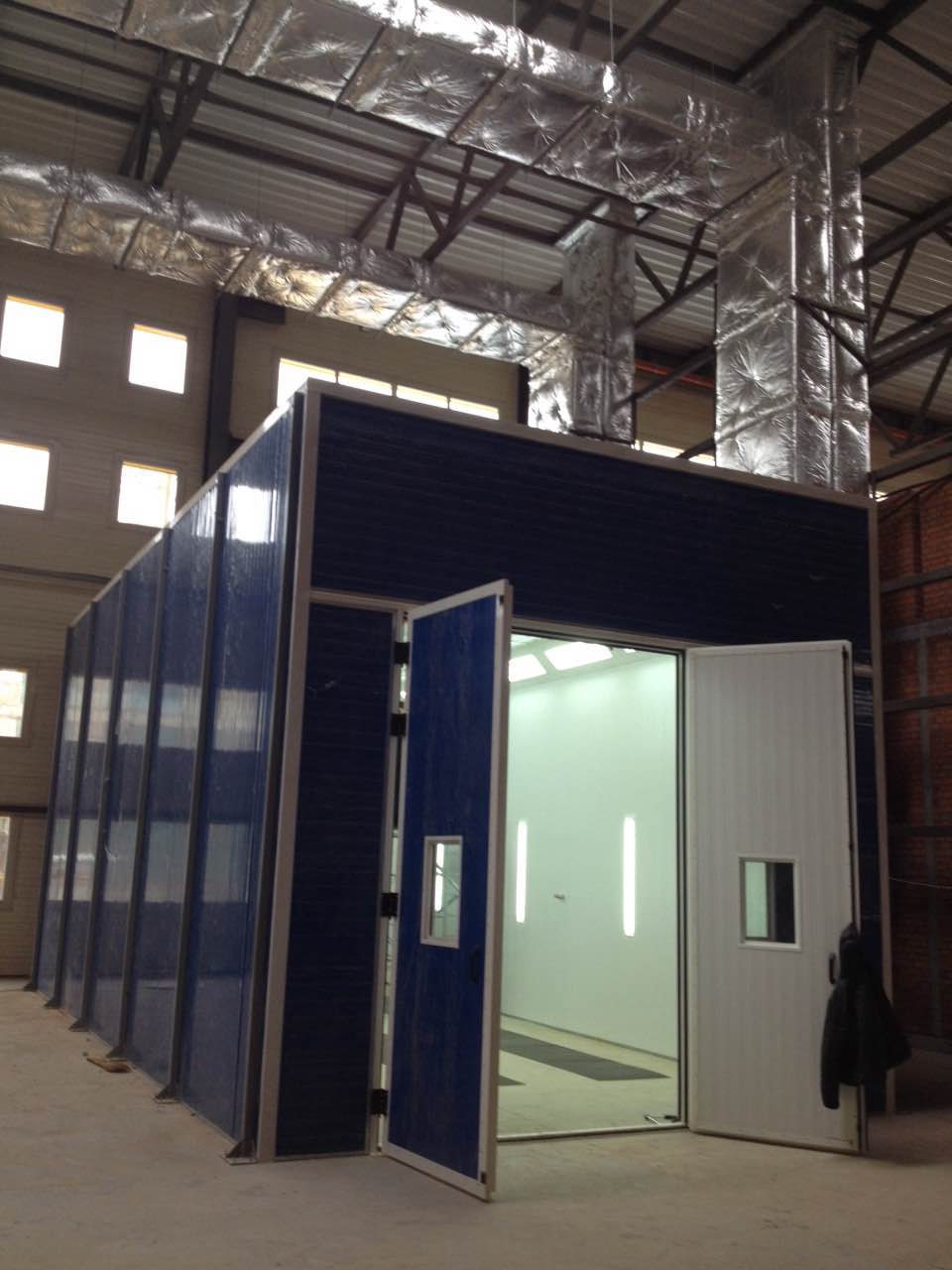

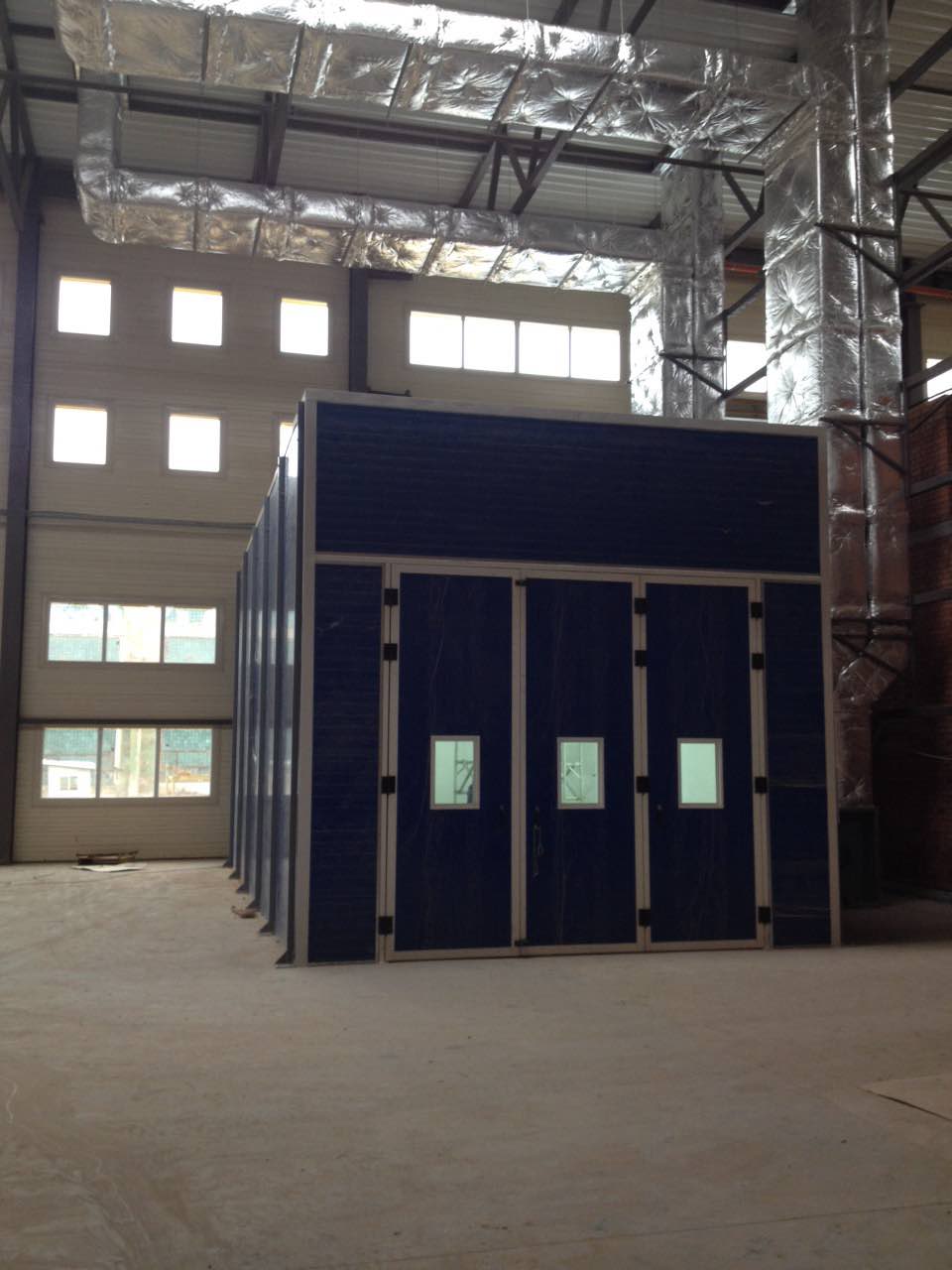

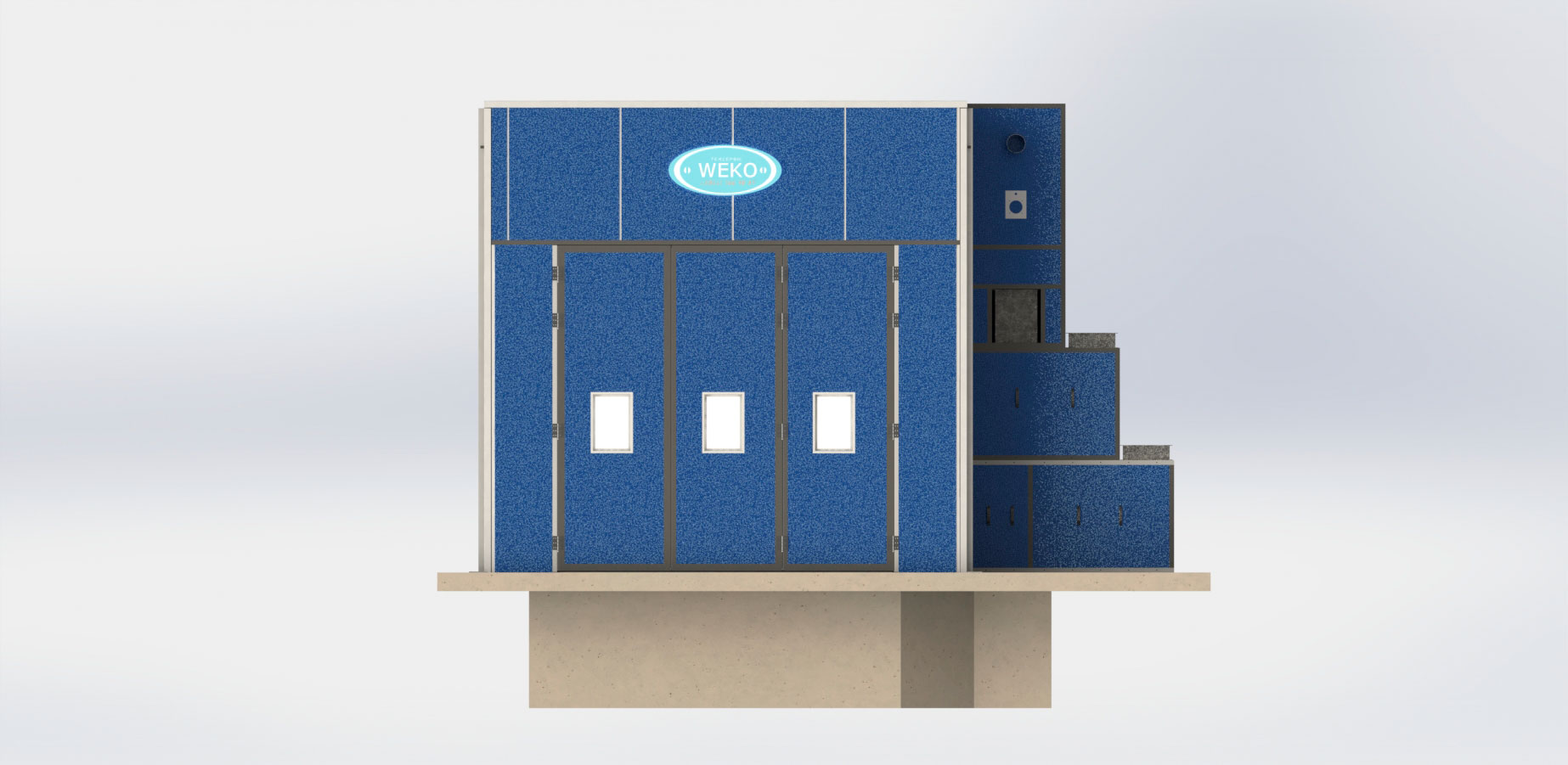

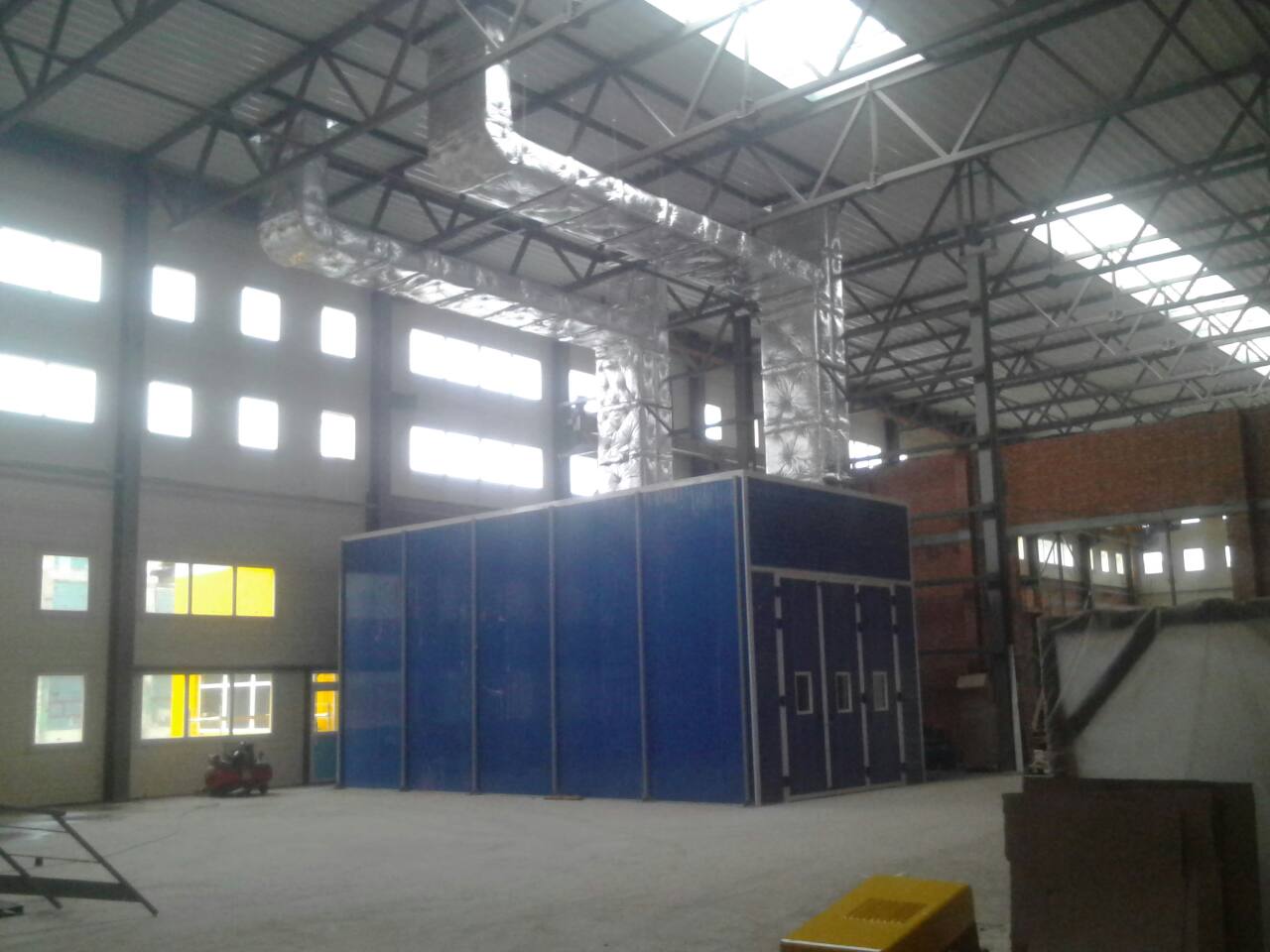

Paint booth project. Designed and implemented for LLC “Olis,” the largest agricultural machinery manufacturer. Its production facilities are located in the city of Odesa.

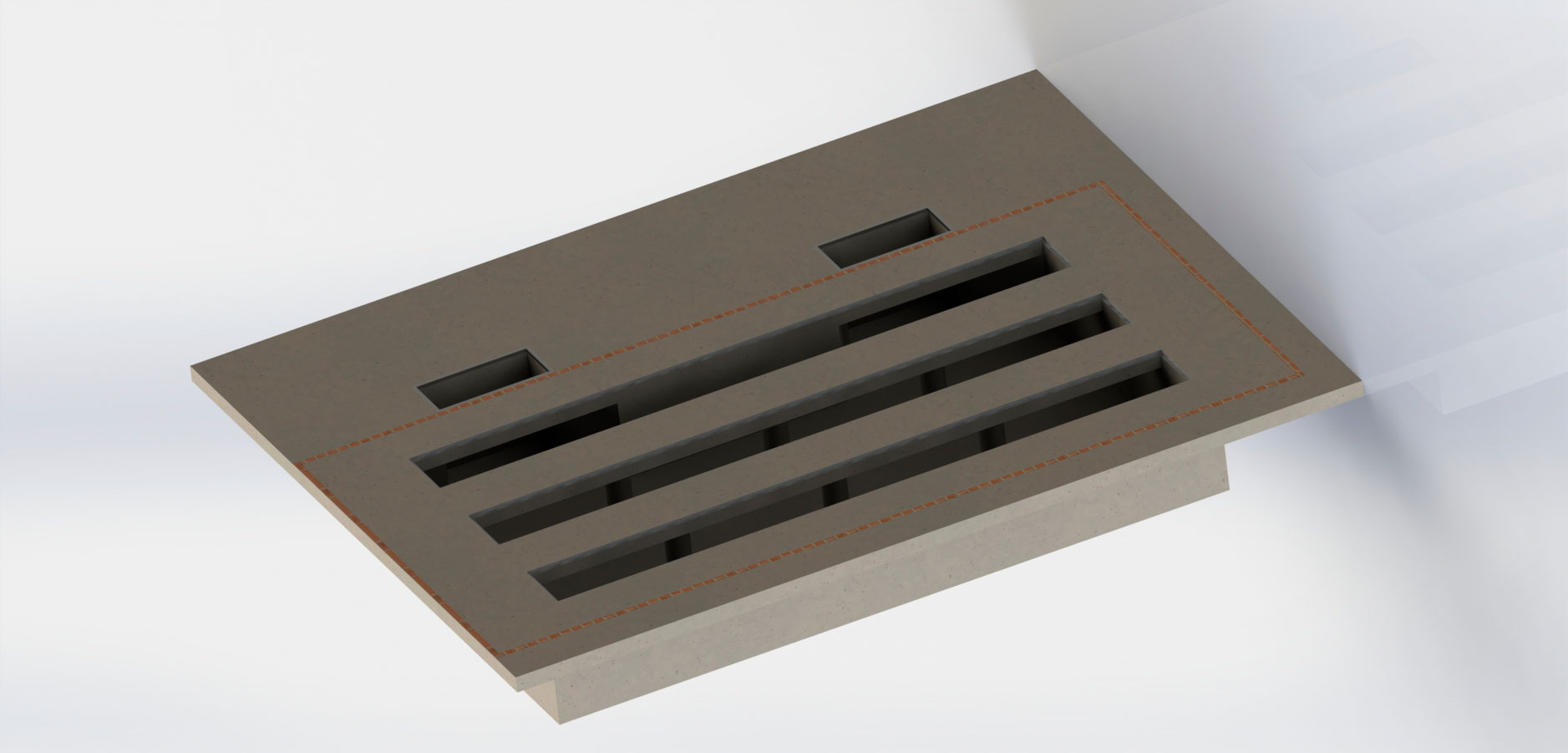

This booth is equipped with a two-level exhaust air filtration system. The first level consists of cardboard labyrinth filters with high accumulation capacity, capturing most of the paint materials. The second level features fiberglass filters with an EU3 filtration class. In this configuration, the accumulation capacity increases significantly, and the number of paint particles in the exhaust air is reduced by 35–40%. The main advantage, however, is that the lifespan of the fiberglass filters is tripled, while overall expenses for exhaust filtration materials decrease by 30%.
Design Features of Paint Booths

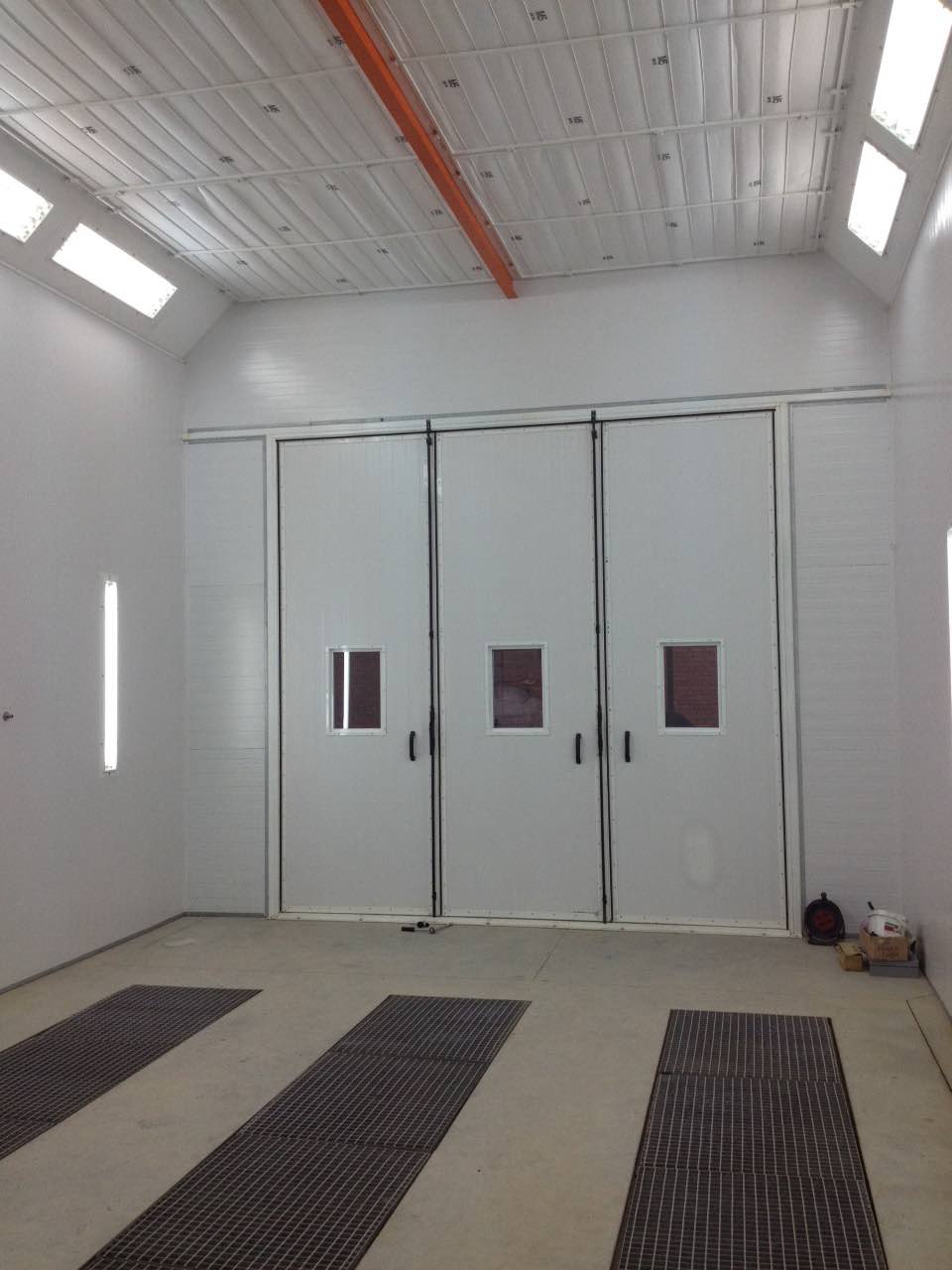

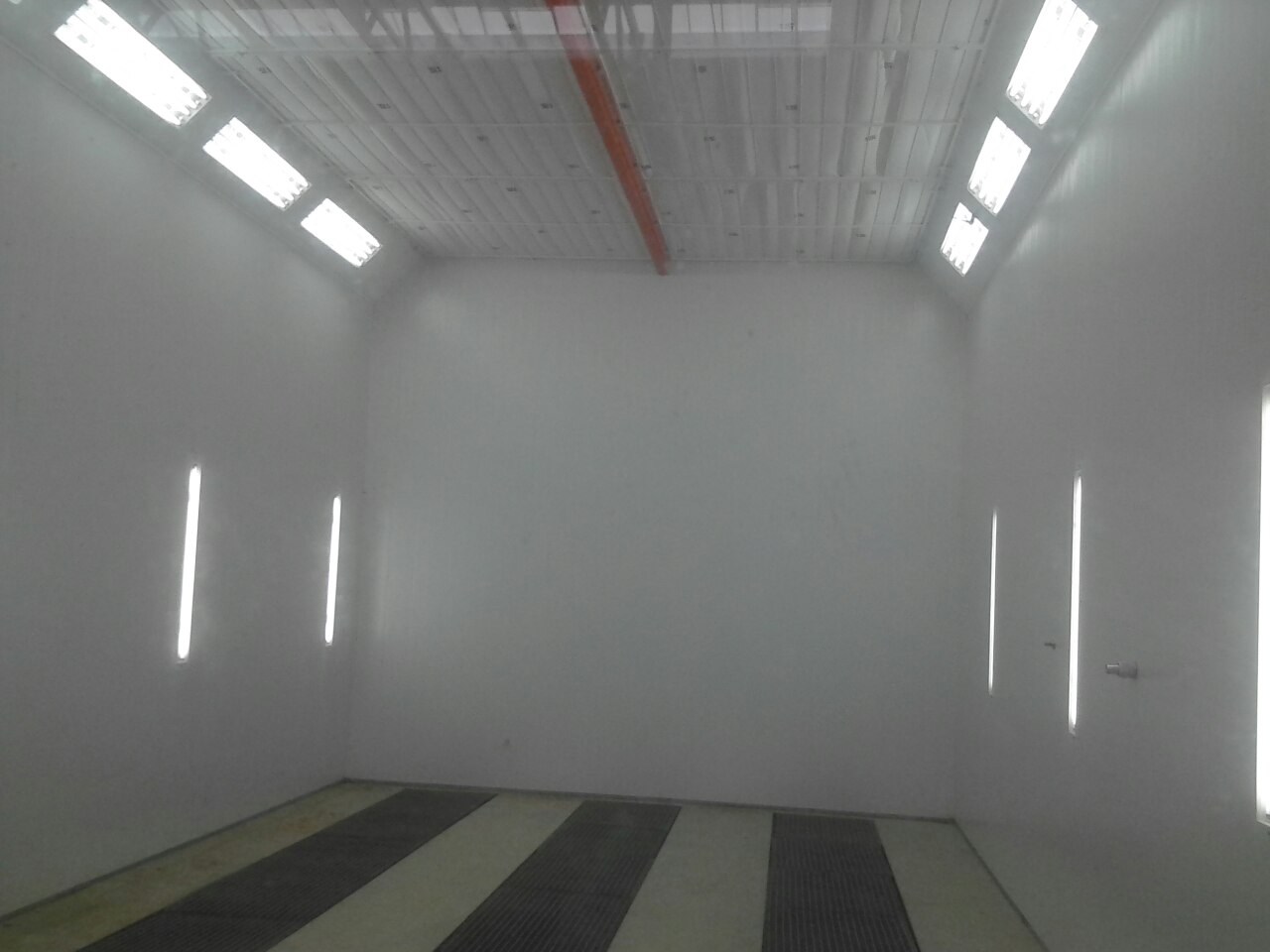

A key feature of our paint booth is the transport system integrated into the ceiling structure. A monorail is embedded in the center of the booth’s ceiling, allowing painted items to be suspended and freely rotated around their axis. The maximum allowable load for this monorail is 1000 kg, but at the customer’s request, this capacity can be increased multiple times, and up to three monorails can be arranged in parallel within the booth.

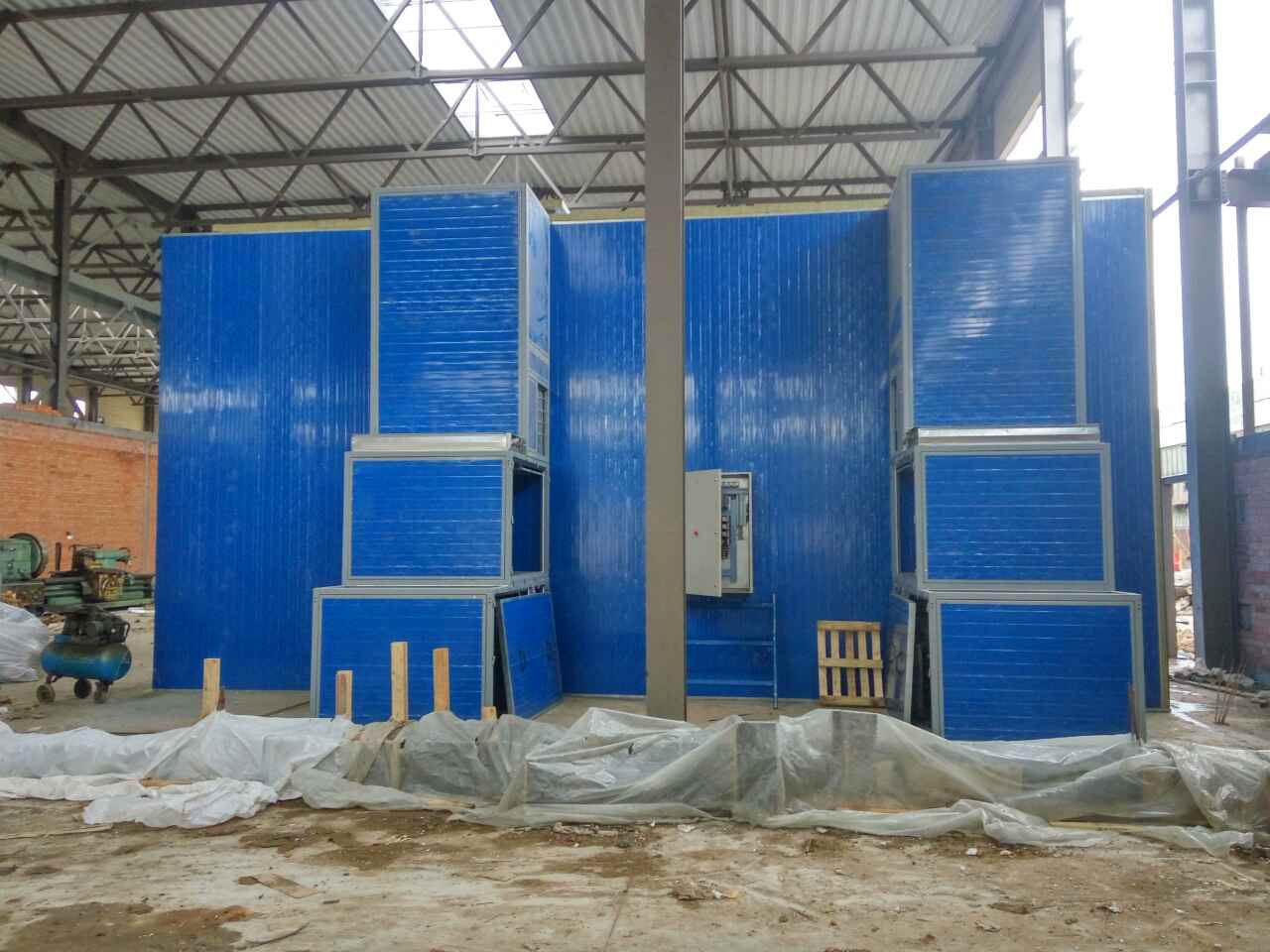

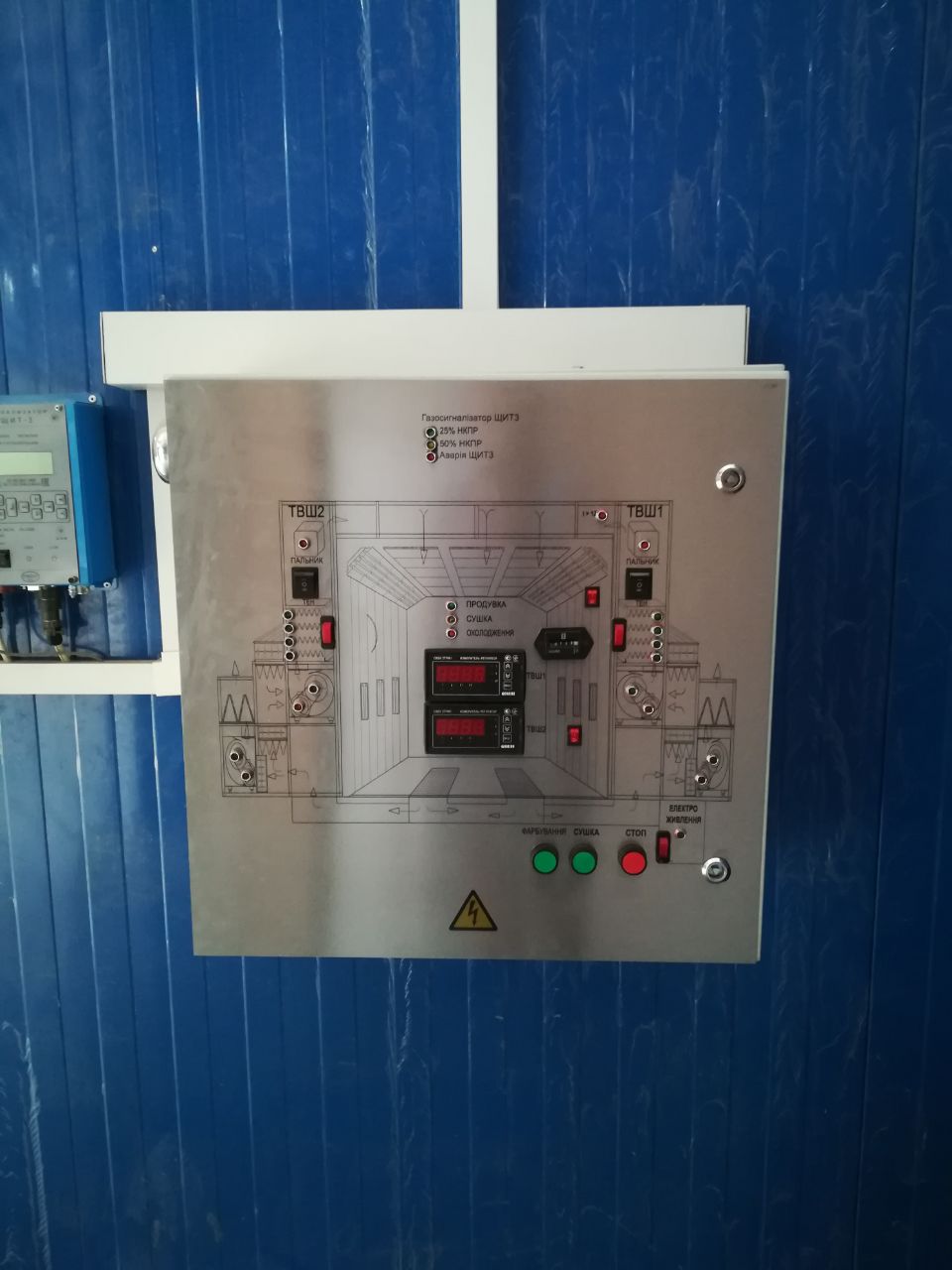

The booth’s thermal ventilation system consists of two supply and exhaust cabinets with a capacity of up to 56 m³/h. Air heating is provided by our proprietary electric heat exchangers, each with a maximum power consumption of 84 kW/h. In nominal mode, at an ambient temperature of around 0°C, consumption is approximately 45 kW/h.
Design Your Own Paint Booth
Do you need to design a paint booth for agricultural machinery or any other industry? You’ve come to the right place! Our company has been specializing in the design, development, manufacturing, installation, and maintenance of painting and coating systems for over 30 years.
Paint Booth Development Plan
Here is an overview of our process if you are interested in our painting equipment:
- Gathering initial data
- Developing a commercial proposal (considering all input data)
- Estimating the approximate cost of the project from start to finish
- Approval of the commercial proposal and production costs
- Developing the paint booth project according to customer requirements
- Verification and approval with the design and production department
- Offering flexible payment terms
- Signing and approving the contract (including all deadlines) with all parties
- Preparing for project execution
- Starting production (after receiving an advance payment)
- Shipment and delivery
- Installation
- Commissioning
- Putting into operation
- Training of responsible personnel
At every stage of the process, a qualified manager will assist you. Contact us for a detailed consultation and a commercial offer. You can find customer feedback and project photos here.
