In 2019, Techservice VEKO and Partner GmbH LLC successfully completed a project to design and install a dead-end type painting and drying chamber for USP Automotive Ukraine LLC. The quality of the supplied equipment and the high level of contractual obligation fulfillment are confirmed by a positive feedback letter from our reliable partner, USP Automotive Ukraine LLC.
At the end of 2018, USP Automotive Ukraine LLC approached us with the need to purchase a painting and drying chamber for test painting of various components. USP Automotive specializes in the sale of professional painting products, including coatings, piston compressors, tools and tool carts, screw (rotary) compressors, high-pressure equipment, jacks, presses, cranes, pneumatic tools, spray guns, accessories, and consumables for painting facilities.

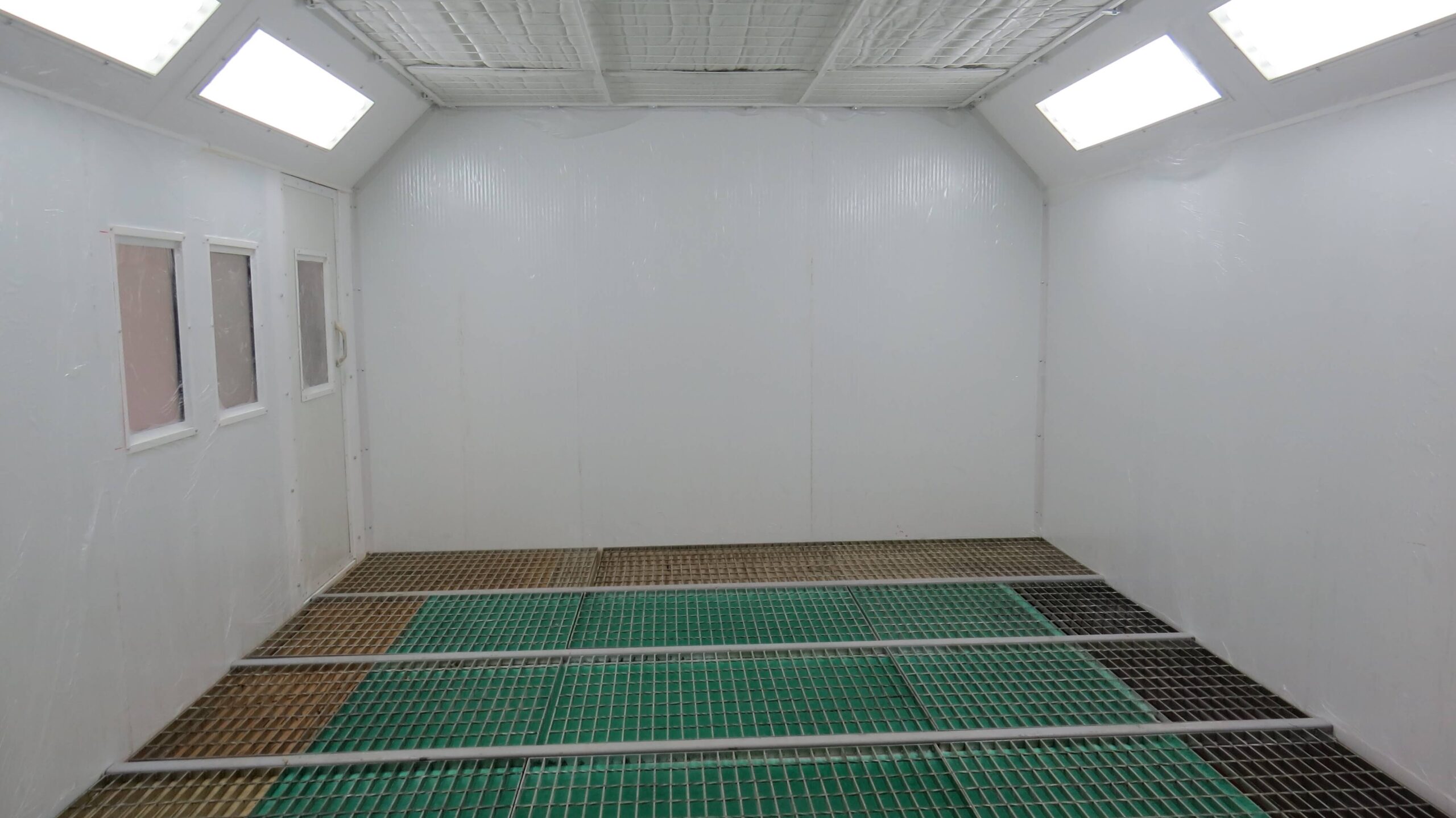

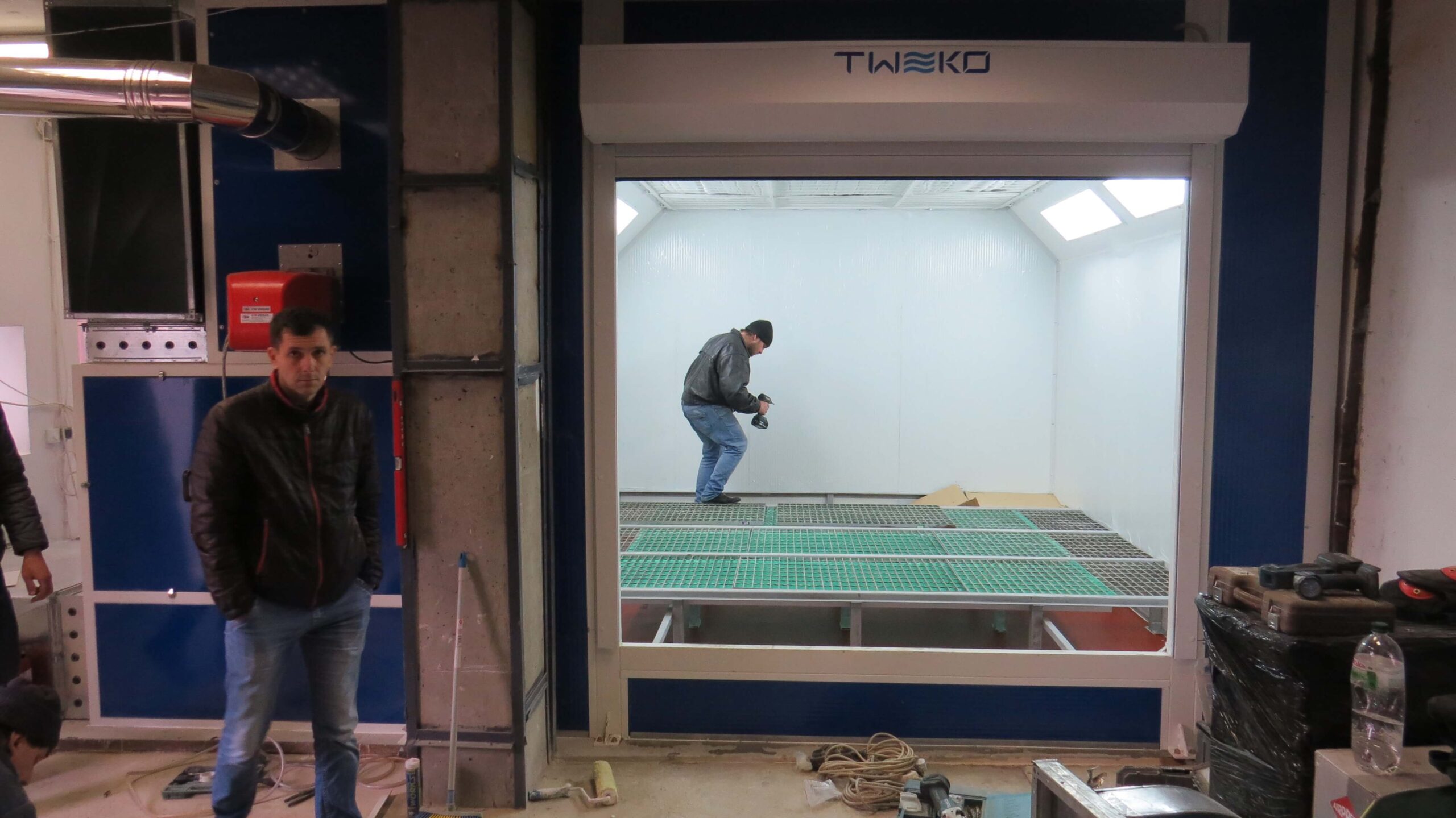

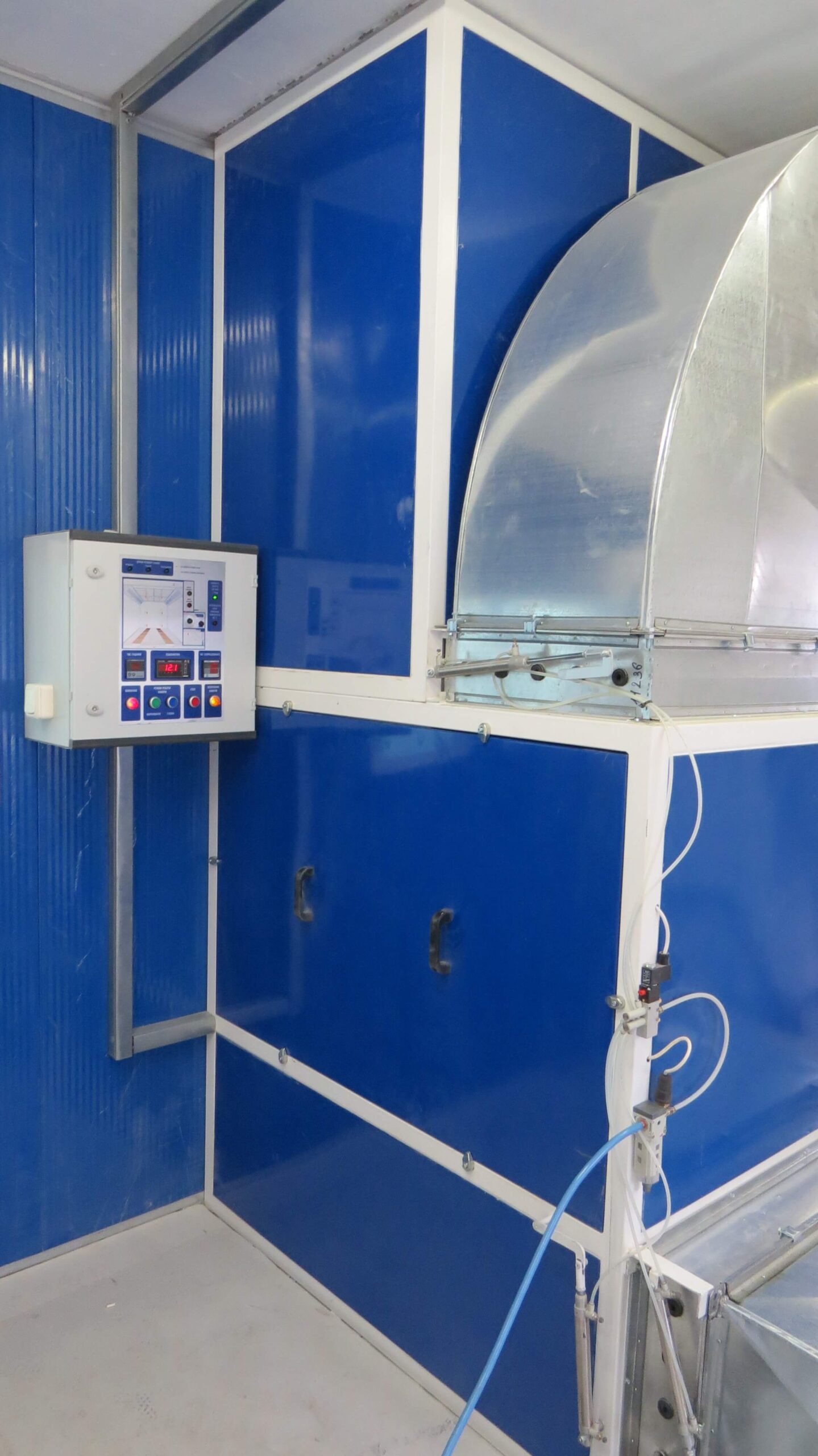

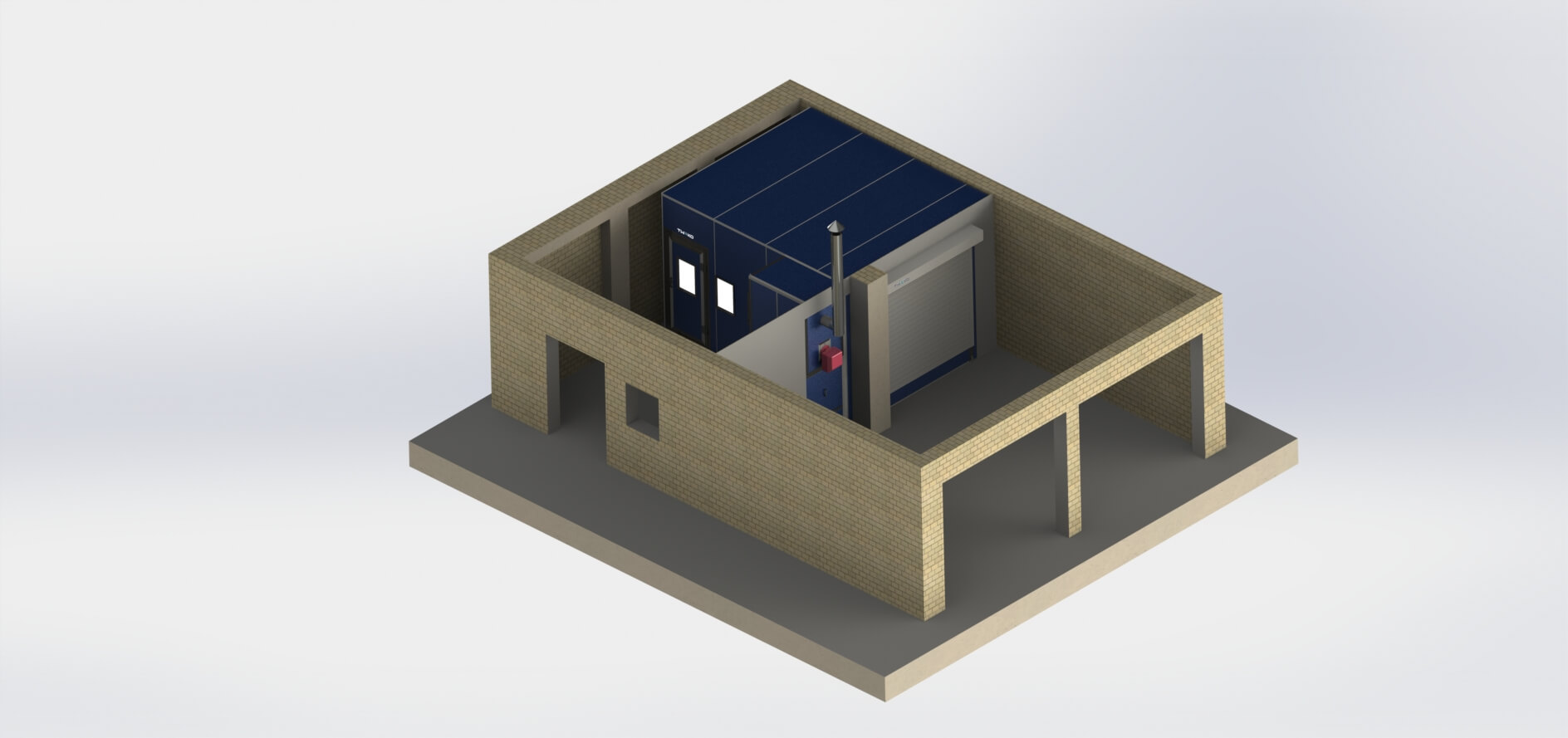

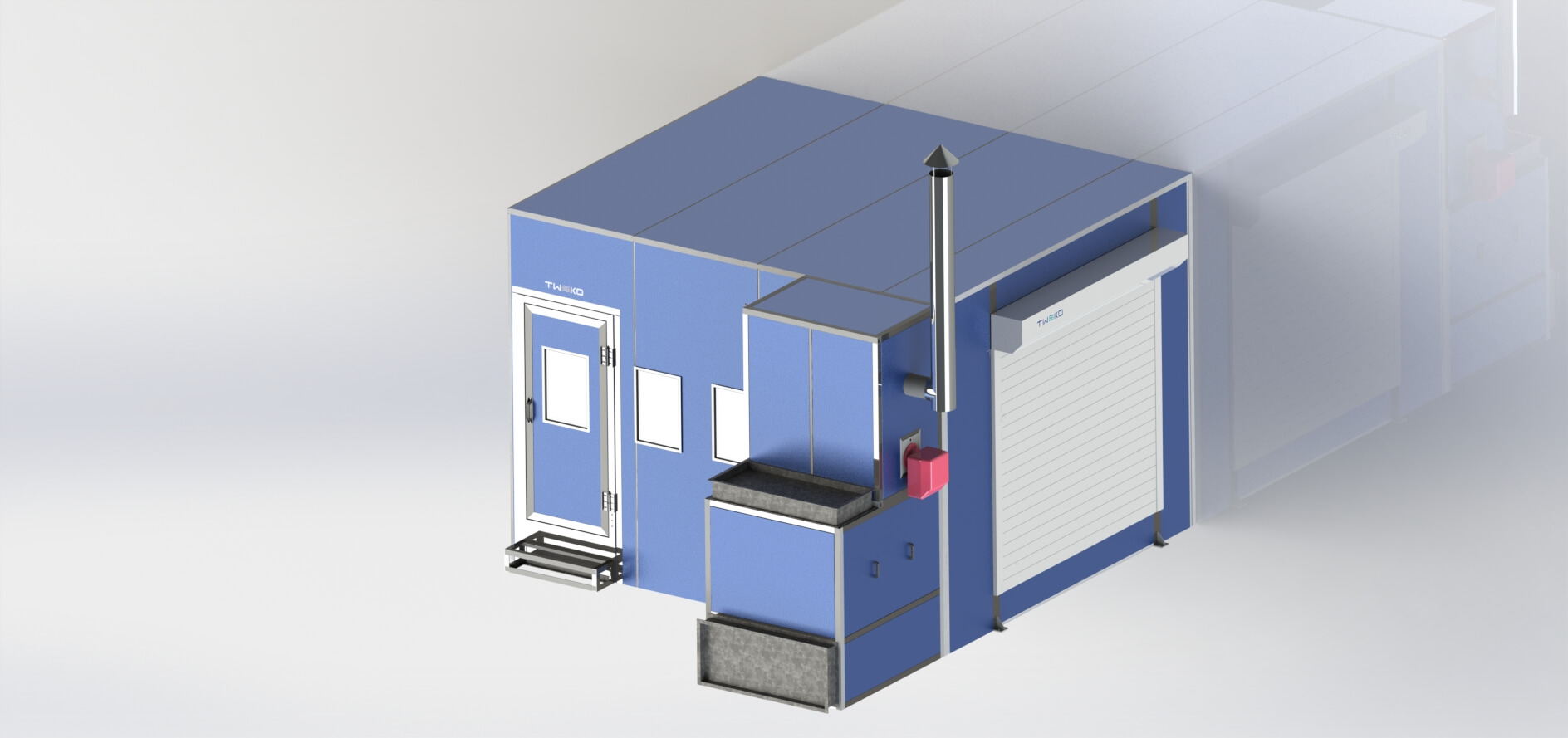

In 2019, specifically in early February, Techservice VEKO and Partner GmbH LLC designed, manufactured, delivered, installed, and commissioned a dead-end type painting and drying chamber (PDC) “KFS.000.00.00-Energy 14” in accordance with the signed contract. The chamber was installed in a small space with numerous protrusions and columns. A diesel burner was selected for air heating in the chamber. The chamber is mounted on a metal podium, with a working area of 4,000×3,500×2,700 mm.
Technical Specifications of the Painting and Drying Chamber
| Parameter | Unit | Value |
|---|---|---|
| Internal dimensions | mm | 4080 × 3500 × 2230 |
| External dimensions | mm | 4180 × 3600 × 3020 |

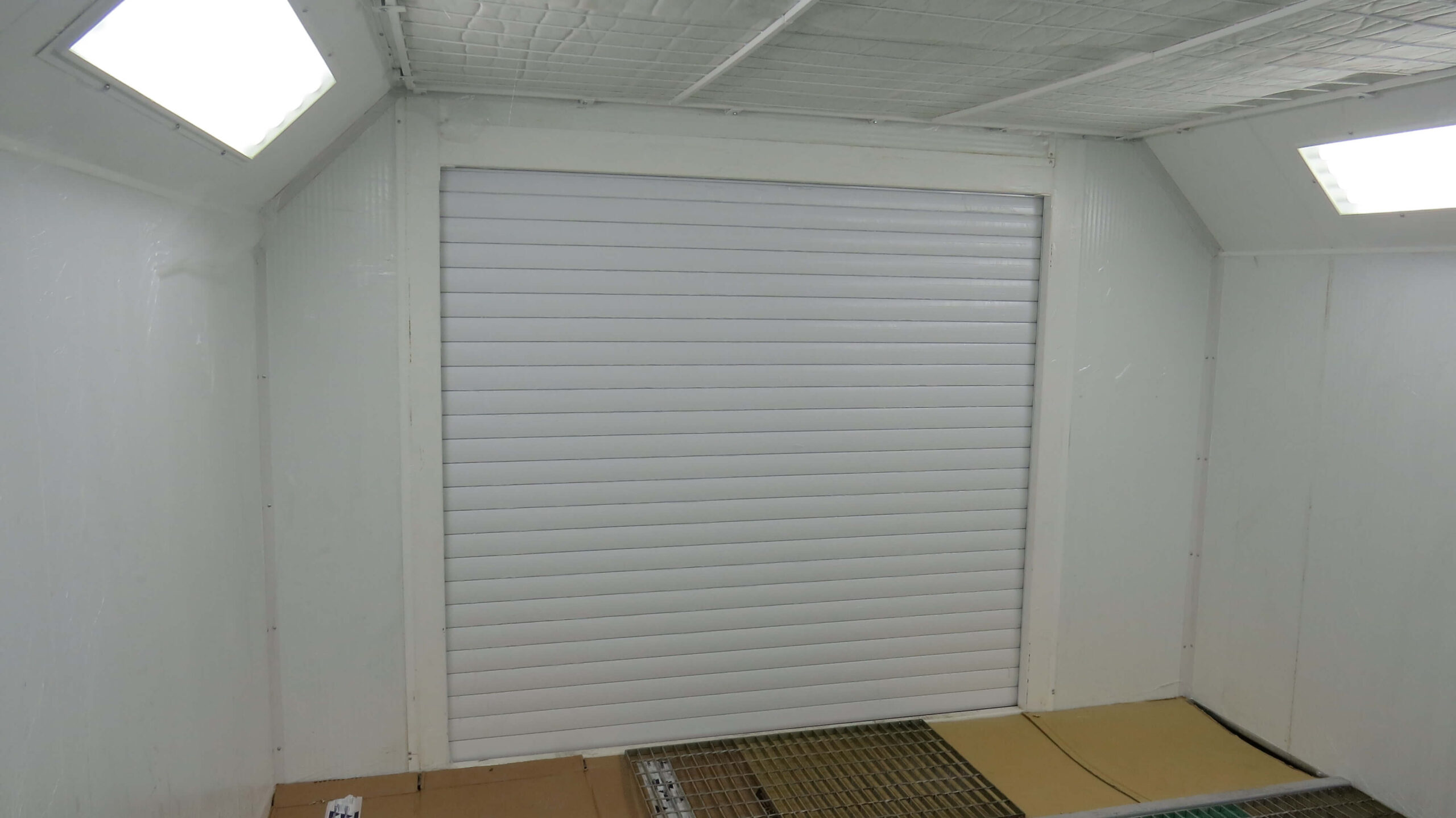

| Roller entry gates | mm | 2200 × 2000 |
| Service doors | mm | 840 × 1975 |
| Ventilation unit | Type | BRV-18 |
| with AIR 132S6 electric motor | kW, rpm | 5.5 / 1000 |

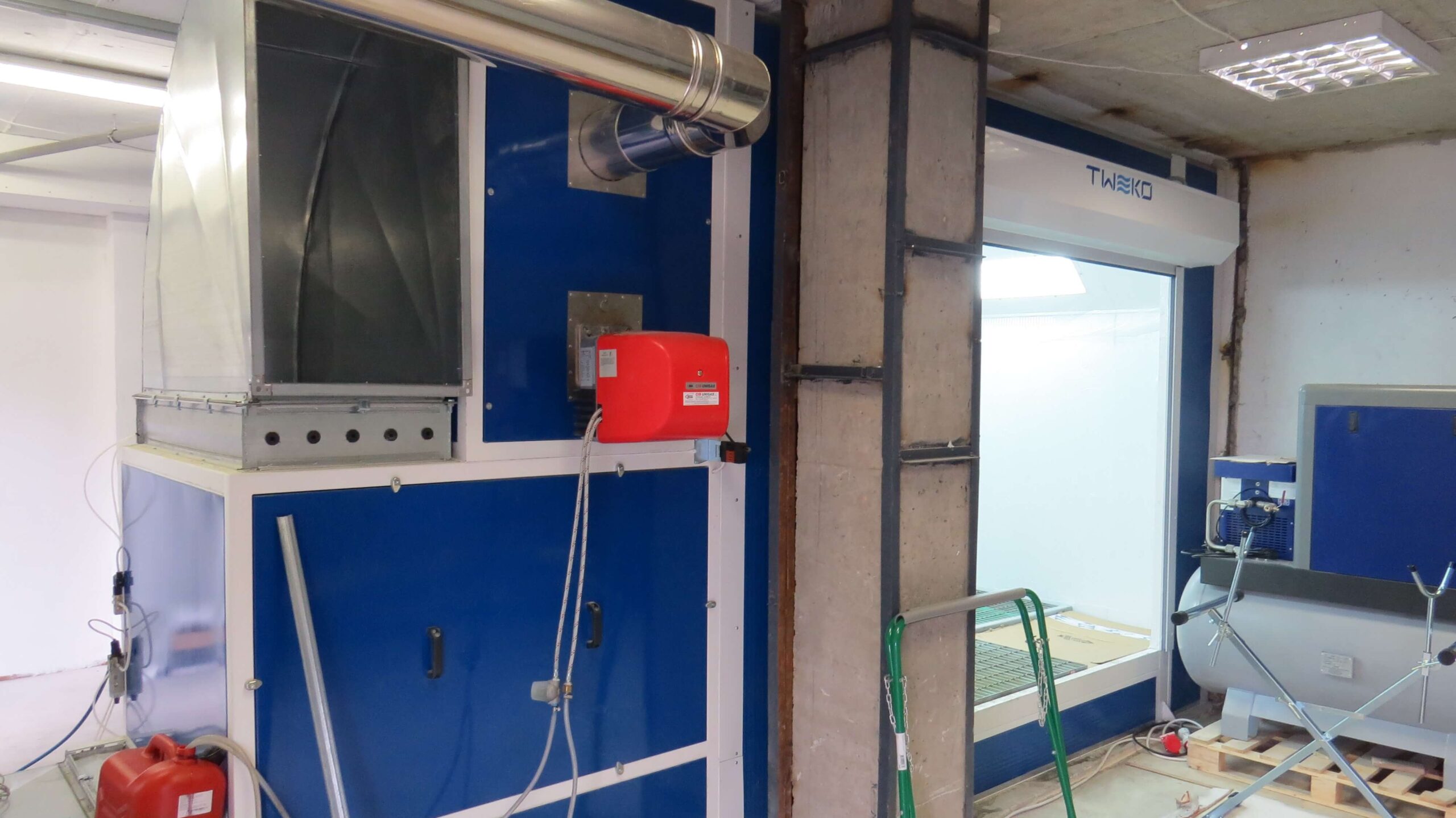

| Heater – diesel burner | Type | LO200 G TN L UA A |
| Internal chamber temperature | °C | Up to 80 |
| Lighting power supply | V/Hz | 220 / 50 |
| Maximum lighting power consumption | kW | 1 |
| Lighting | lumens | 6500 |
| Power supply | V/Hz | 380 / 50 |
| Total power consumption | kW | 6 |
| Noise level inside the chamber | dB | 65 |
| Noise level outside the chamber | dB | 70 |
| Chamber equipment weight | kg | 2240 |
Director, USP Automotive Ukraine LLC, D.V. Svyderkyi
