In 2018, TWEKO completed a project to modernize the painting section for Avtotehservis LLC, an auto repair shop in Kharkiv specializing in vehicle repair and restoration. The new painting and drying chamber with a diesel burner and refurbished equipment confirmed the company’s reliability and professionalism.
In 2018, our long-term partner, Avtotehservis LLC, approached us with the need to modernize the painting section of their auto repair shop. The company is based in Kharkiv and focuses on vehicle repair and maintenance. Due to the expansion of their service station, they decided to purchase an additional painting and drying chamber measuring 7000 × 4000 × 2700 mm with a diesel burner. Additionally, to improve logistics and optimize the use of workspace, they opted to relocate and refurbish an existing chamber purchased from TWEKO over 10 years ago.
Why Techservice VEKO?
Avtotehservis LLC carefully reviewed the available offers on the painting chamber market and chose us because we offer:
- Extensive experience.
- An in-house design department.
- Own manufacturing facilities.
- Use of reliable components.
- An in-house service department.
Our designers have many years of experience in the industry, allowing our company to guarantee the customer high-quality products even at the design stage. TWEKO painting chambers, when operated according to recommendations, have an exceptionally long service life.
Advantages
- Custom equipment design tailored to the needs of the auto repair shop.
- High painting quality thanks to a modern chamber with a diesel burner.
- Reliability and durability of both new and refurbished equipment.
- Prompt fulfillment of warranty obligations and attentive customer service.
Equipment and Work Performed
We have been collaborating with Avtotehservis LLC for over ten years, so the development of the new painting and drying chamber and the relocation with refurbishment of the existing one posed no challenges. After agreeing on all technical aspects, the equipment was manufactured, delivered to the site in Kharkiv, installed, commissioned, and staff training was conducted.

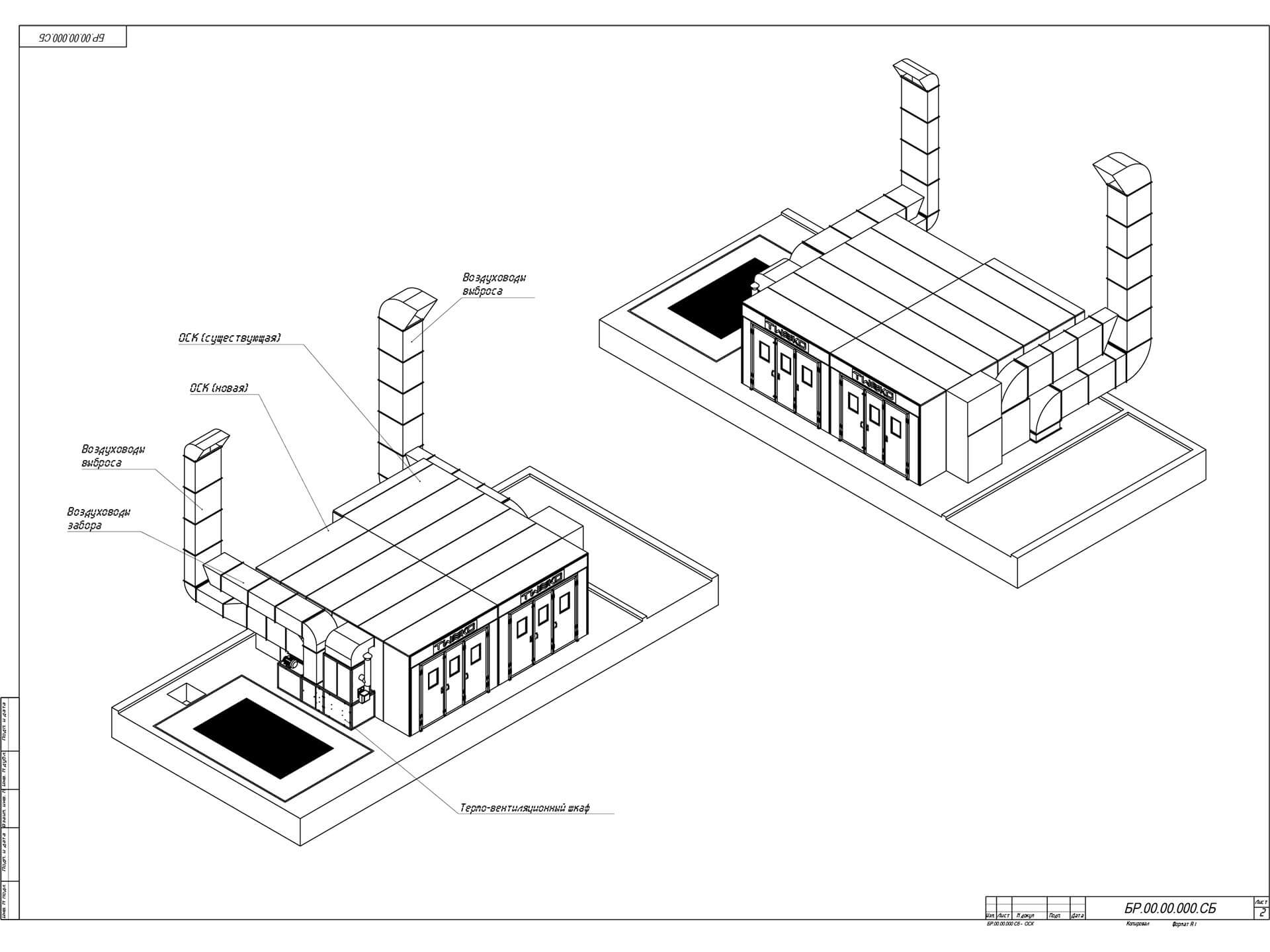

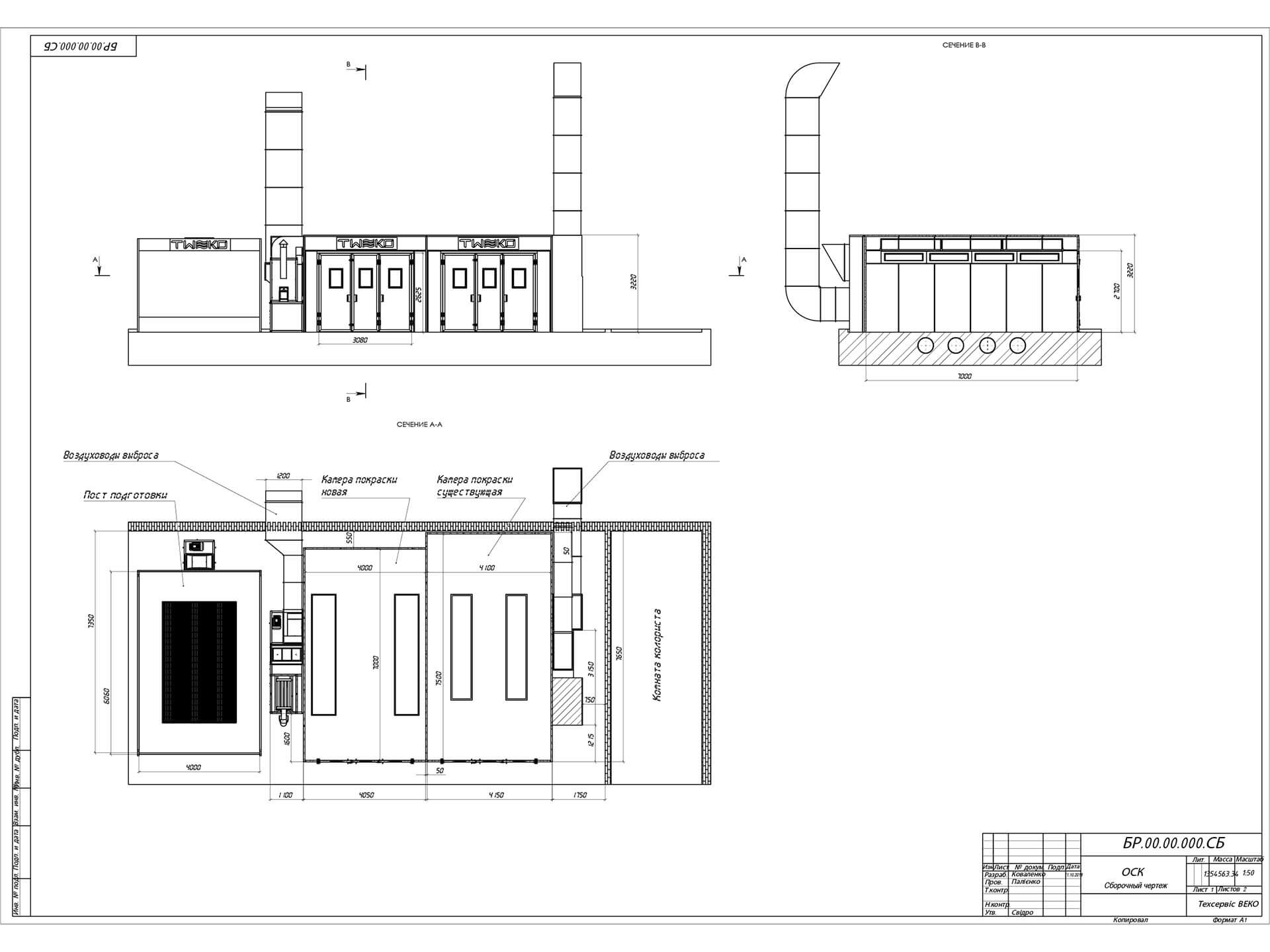

The new complex includes:

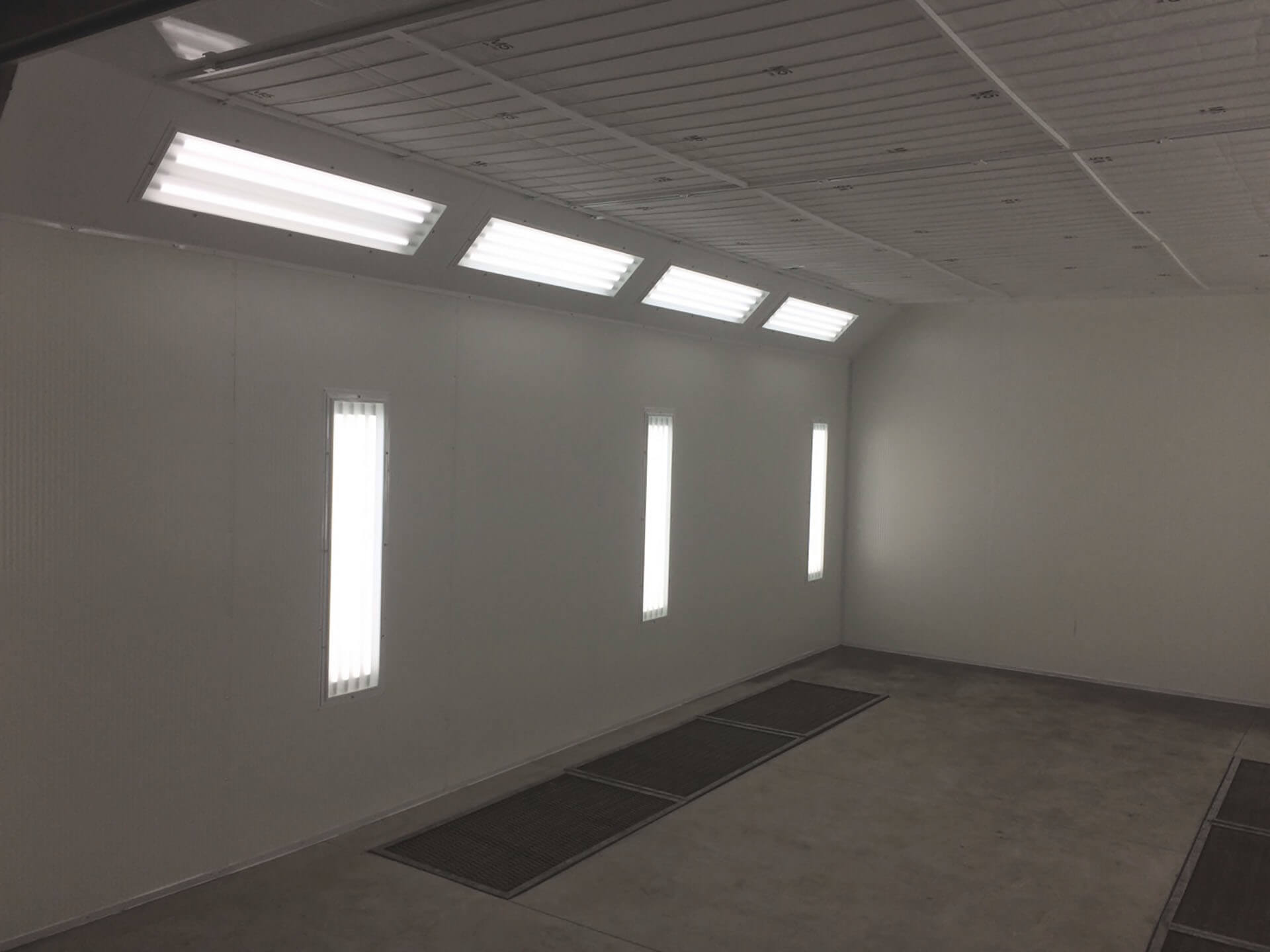

- A painting and drying chamber with a diesel burner, internal dimensions: 7000 × 4000 × 2700 mm — for painting and drying vehicles.
Additionally, TWEKO performed:
- Relocation and refurbishment of the existing painting and drying chamber, which has been in operation at the facility since the early 2000s.
Technical Specifications of the Coating Application Chamber
| Parameter | Unit | Value |
|---|---|---|
| Dimensions | ||
| Internal dimensions | mm | 7000 × 4000 × 2700 |
| External dimensions | mm | 7100 × 4050 × 3220 |
| Swing entry gates | mm | 3800 × 2600 |
| Supply Ventilation | ||
| Supply ventilation unit | Type | BRV-18 |
| With AIR 132M6 electric motor | kW, rpm | 7.5 / 1000 |
| Ventilation unit capacity | m³/h | 23000 |
| Exhaust Ventilation | ||
| Exhaust ventilation unit | Type | BRV-18 |
| With AIR 132S6 electric motor | kW, rpm | 5.5 / 1000 |
| Ventilation unit capacity | m³/h | 23000 |
| Temperature | ||
| Chamber internal temperature | °C | Up to 80 |
| Electricity | ||
| Lighting power supply | V/Hz | 220 / 50 |
| Power supply | V/Hz | 380 / 50 |
| Total power consumption | kW | 15 |
| Weight | ||
| Chamber equipment weight | kg | 2200 |
The equipment manufacturing, installation, and commissioning were completed within the agreed timelines and in full compliance with the technical specifications. The equipment was installed at the auto repair shop in Kharkiv and is used for vehicle repair and painting.
TWEKO performed the work with high quality, adhering to deadlines and customer requirements. We also fully meet warranty obligations, providing prompt service support. The refurbished chamber continues to operate reliably, confirming the durability of our technical solutions.

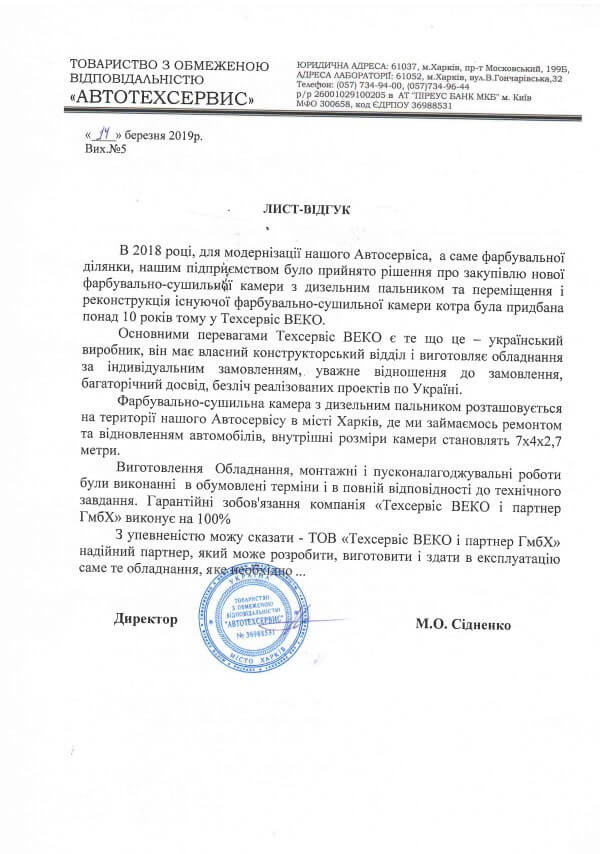

Avtotehservis LLC is fully satisfied with the results and recommends our company as a reliable partner. We, in turn, are proud of this collaboration and are ready to help other businesses in the auto repair industry elevate their painting processes to a new level.
Conclusion and Results
The project, implemented in 2018 for Avtotehservis LLC, is an example of successful modernization of an auto repair business. Thanks to years of collaboration, we deeply understood the client’s needs, so the development of the new painting and drying chamber and the refurbishment of the existing one were carried out smoothly and efficiently.
After agreeing on all technical aspects, we manufactured and delivered the equipment, performed installation, commissioning, and staff training. The new equipment ensures high-quality painting and meets modern industry standards.
