TWEKO designed and installed a dry paint booth for the Art Wood enterprise in Kyiv in 2013. Two paint booths with dual-stage dry filtration, supplemented by a third in May 2014, ensure high-quality coating application on parquet, creating comfortable working conditions.
About the Client
Art Wood is a leading parquet manufacturing enterprise in Kyiv, Ukraine. The company specializes in producing various types of parquet and wooden products that require professional coating application to ensure aesthetic appeal and durability. If you’re looking to buy a paint booth, TWEKO offers reliable solutions for such productions.
Project Objectives
The goal was to create an efficient paint shop for applying coatings on parquet. Key project requirements included:
- Development of a paint booth with dual-stage dry filtration for clean working conditions.
- Effective extraction of air contaminated with coating vapors, followed by purification.
- Noise reduction in the facility through an external ventilation unit.
- Scalability through the addition of extra paint booths for production expansion.
TWEKO’s Solution: Paint Booth with Dry Filtration
TWEKO developed a customized solution, including:

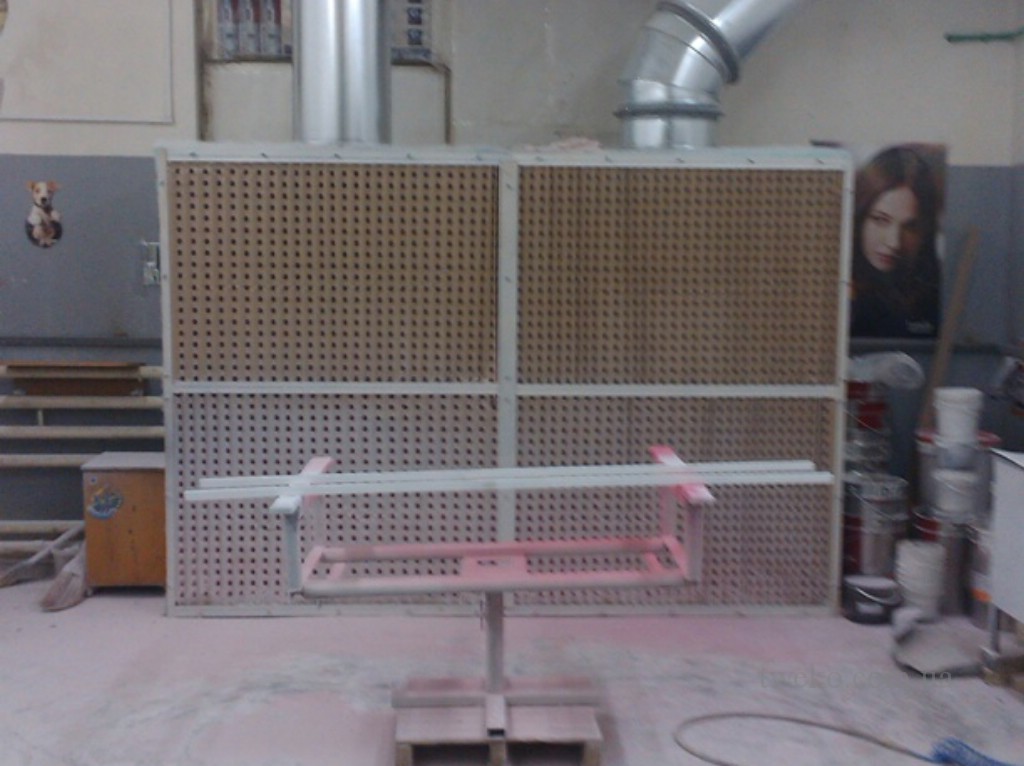

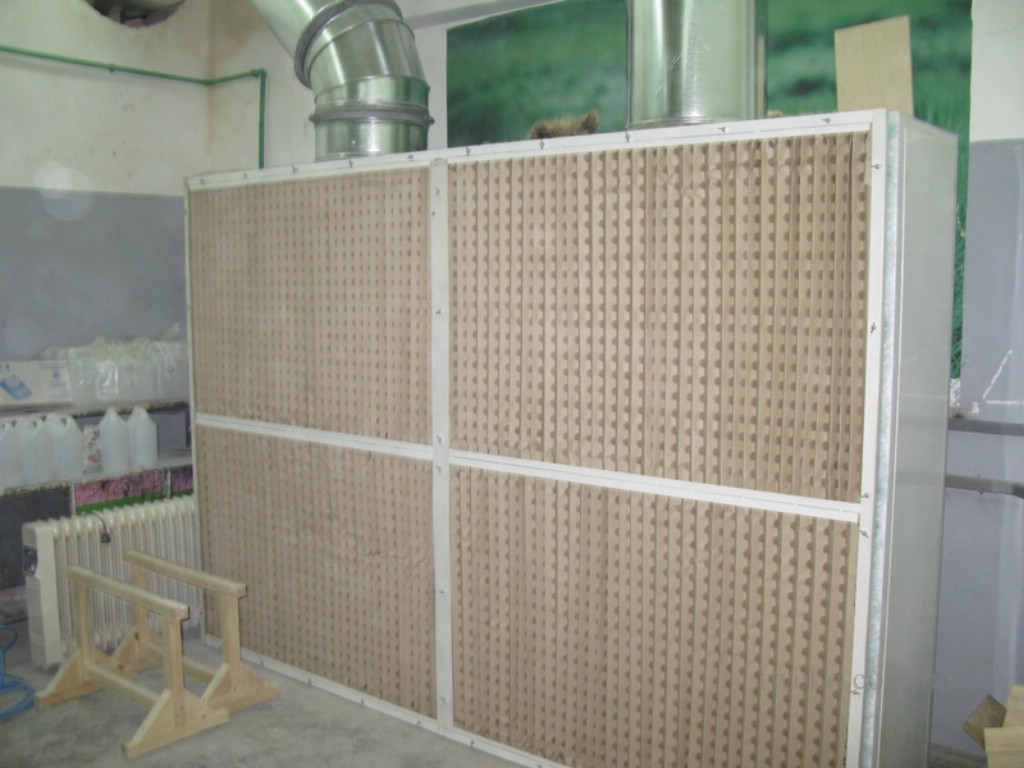

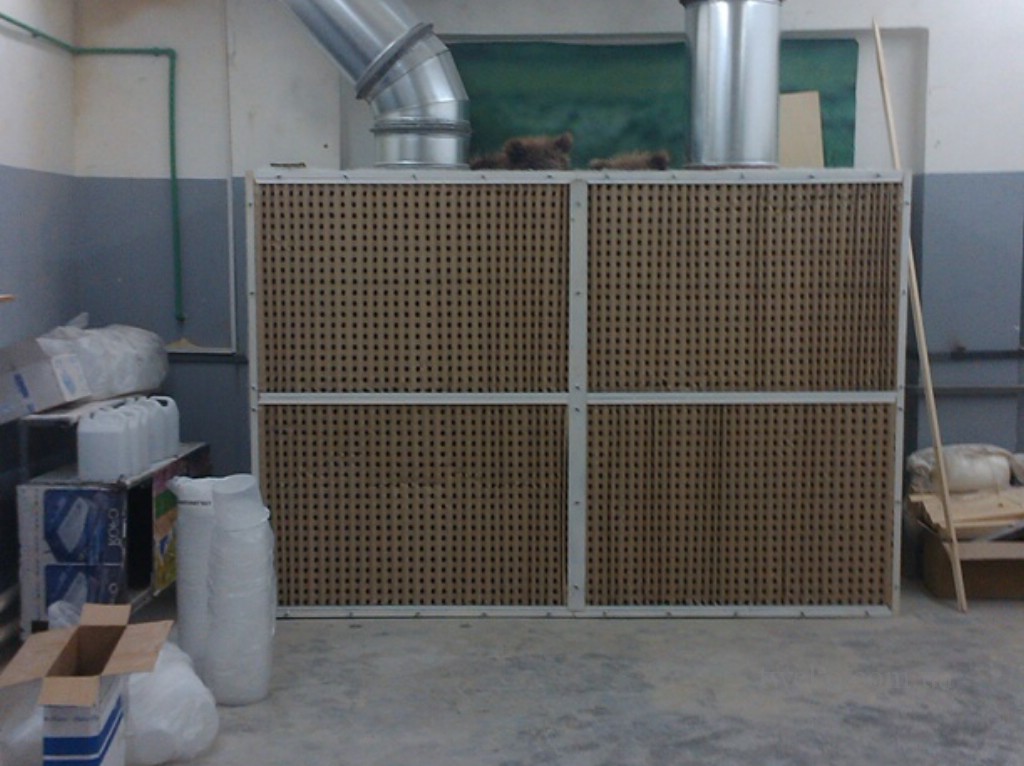

- Dry paint booth. The paint booth is constructed as a metal frame cabinet made of profile tubes and angles, clad with powder-coated sheets. The front features two filter frames (2500×1000 mm each). The dual-stage filtration system includes: 1) a cardboard labyrinth filter with high absorption capacity; 2) a fiberglass filter for additional purification. The ventilation unit’s capacity is 10,000 m³/h, powered by a centrifugal fan with a 2.2 kW / 1000 RPM motor.

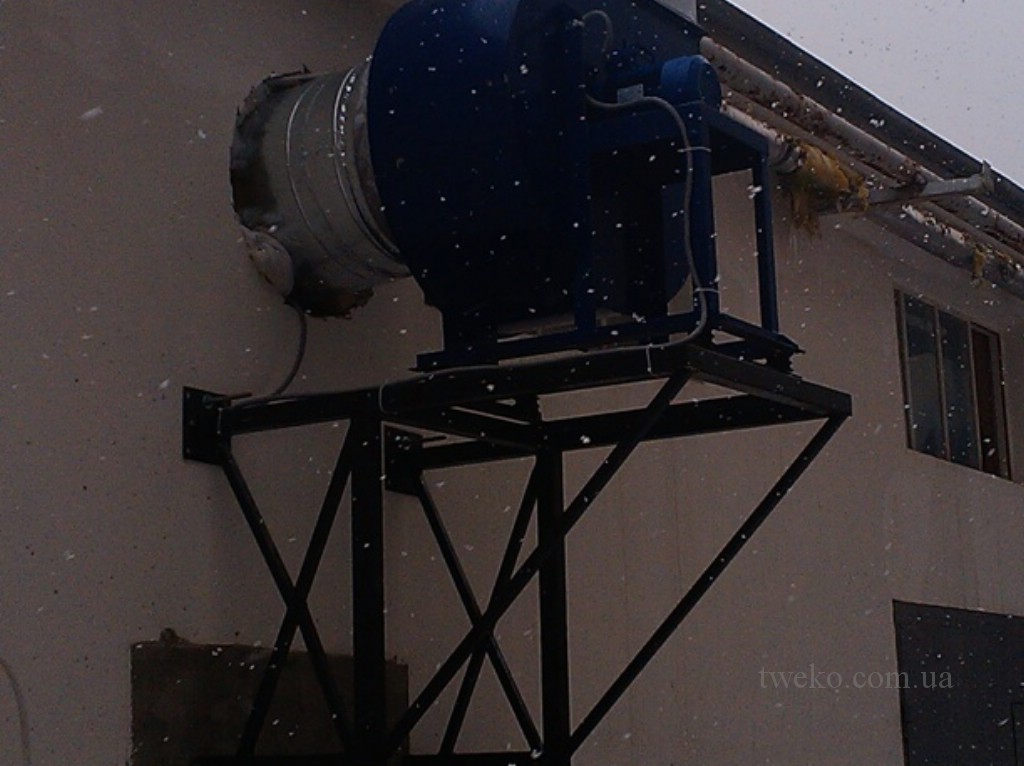

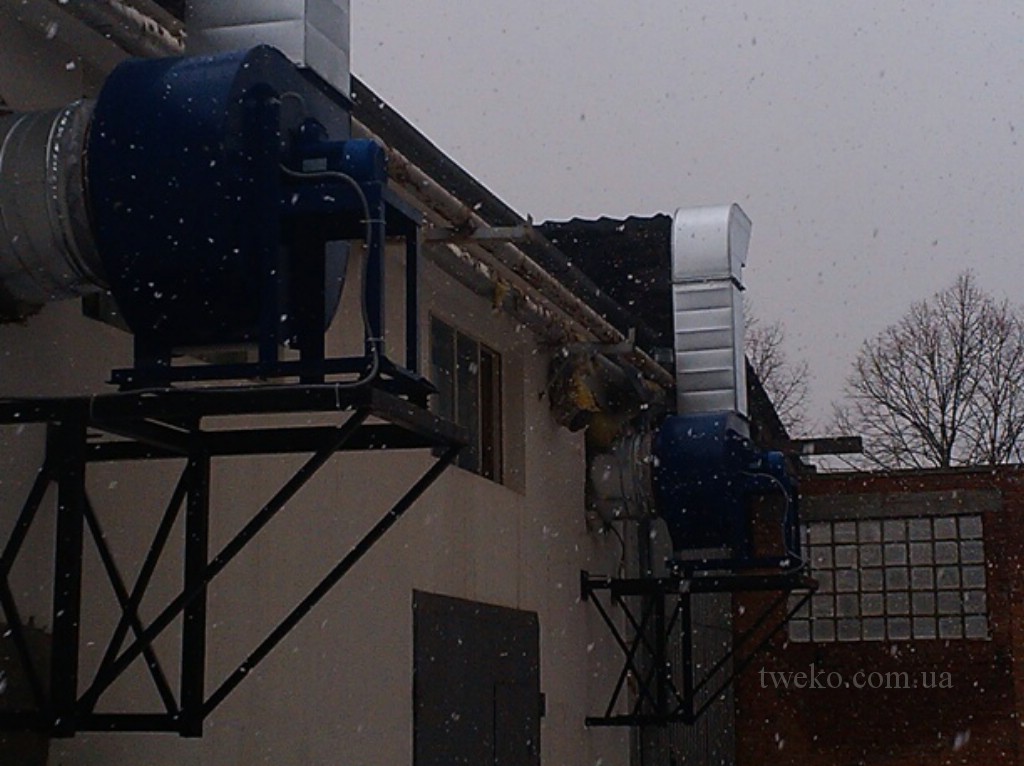

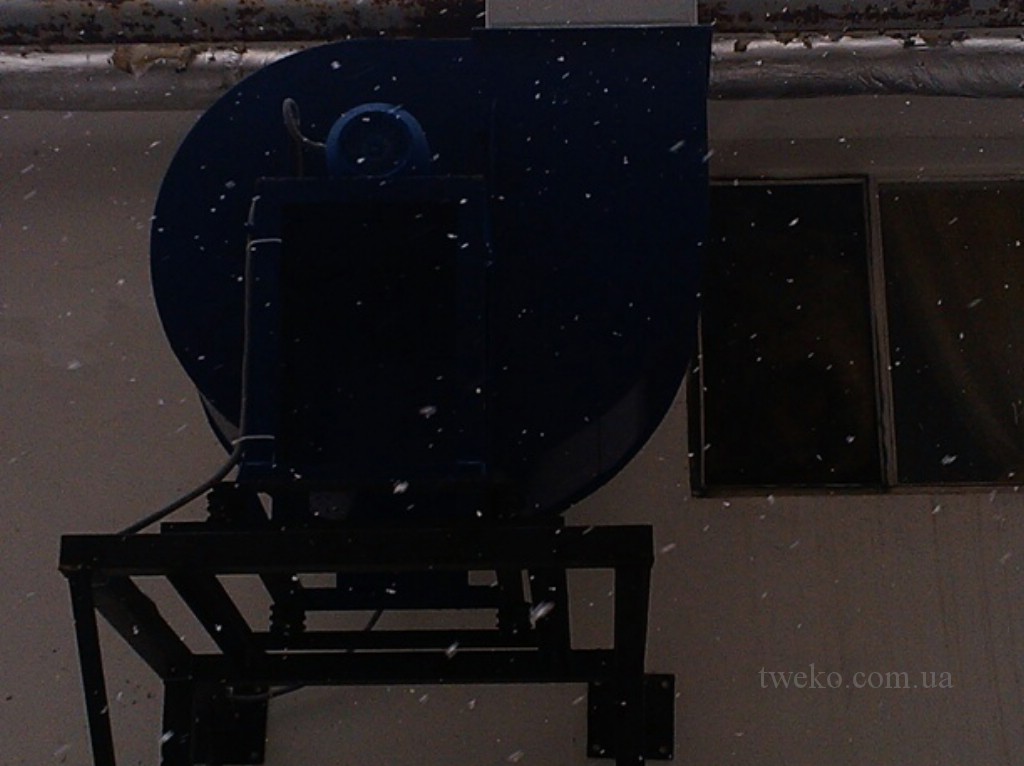

- External ventilation unit. To reduce noise and vibrations, the fan is mounted on the exterior wall of the facility on a vibration-dampening frame, ensuring comfortable conditions in the paint shop.
The system includes pressure and extraction control. In May 2014, the shop was equipped with an additional paint booth, bringing the total to three. Unlike homemade solutions, such as a DIY paint booth, TWEKO’s professional equipment guarantees reliability and durability.
Project Implementation
The request from Art Wood was received in 2013. TWEKO prepared a commercial proposal, considering air purity and facility conditions in Kyiv. After on-site measurements, two paint booths with dual-stage filtration were designed. Manufacturing of components (frame, filters, ventilation unit) was completed in 2013. Installation and setup were done on time, with an additional booth installed in May 2014 to expand capacity.
Results for the Client
- High-quality coating application due to dual-stage dry filtration (cardboard and fiberglass filters).
- Efficient extraction of contaminated air with a capacity of 10,000 m³/h.
- Comfortable working conditions thanks to the external ventilation unit and vibration-dampening frame.
- Production flexibility: addition of a third paint booth in 2014 to increase capacity.
Client Feedback
Production Manager, Art Wood
Conclusion
The project for Art Wood was successfully completed in 2013, with further expansion in 2014. TWEKO demonstrated expertise in developing dry paint booths, tailored for parquet production, ensuring high quality and efficiency.
