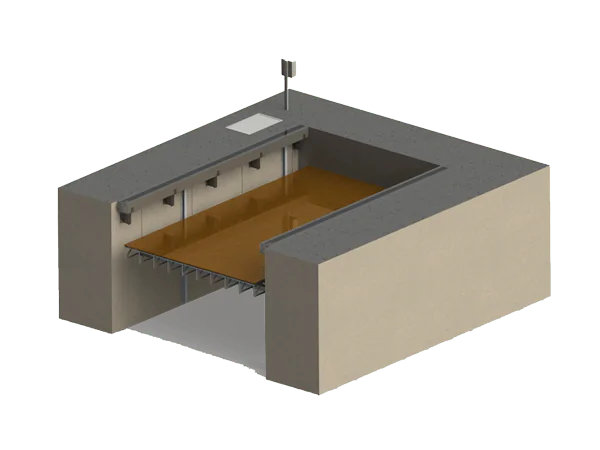

Yacht elevator and ship platform YpP series is a specialized type of material handling equipment that creates ideal conditions for:
- safe lifting of the ship to land;
- long-term parking, or winter conservation of the vessel;
- ship repair and painting;
Complies with international safety standards
In placement category I according to DSTU 15150-69 and DSTU 15543-70.
Technical specifications
for basic configurations
| Models | YPP4000 | YPP7000 |
|---|---|---|
| Productivity | ||
| Max. carrying capacity | 4 t | 7 t |
| Stroke height | 300-1300 mm | 2300-3000 mm |
| Lifting speed | 110 sec | 180-300 sec |
| Steel ropes | – | 8 pcs |
| Drive unit | ||
| Type of drive | Screw | Hydraulic |
| Hydraulic pressure | – | 16 MPa |
| Platform movement | Vertical | |
| Works at temperature | From -10 ◦С to +40 ◦С | |
| Degree of protection | IP13 DSTU 14254-80 | |
| Overall dimensions | ||
| assembly (LxWxH) | 10500х3155х380 mm | 8250х5630х600 mm |
| Weight | 3000 kg | 3000 kg |
