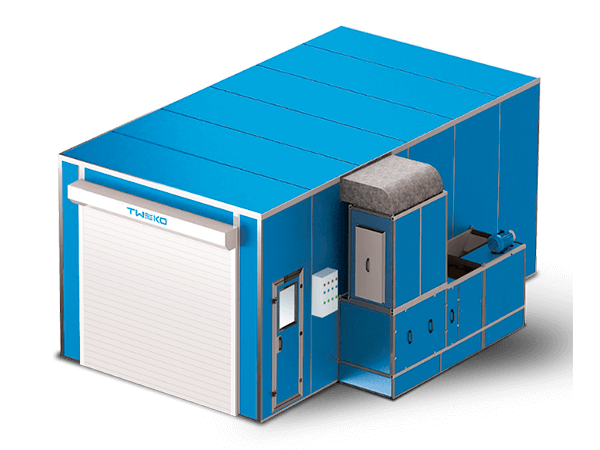

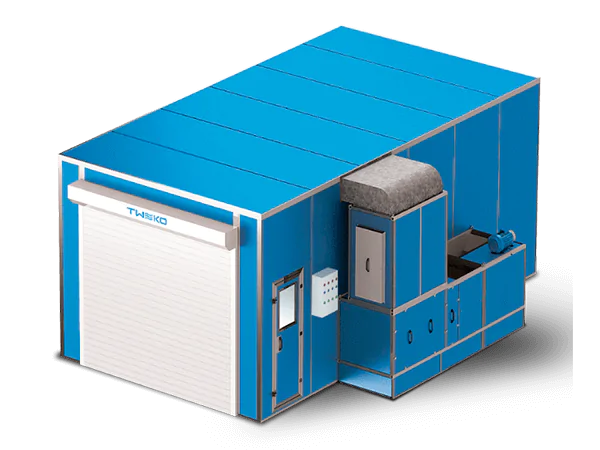

Car painting booth: AKFS Electro series

Car painting booth: AKFS Electro series

Pre-order

The AKFS Standart series is precision synchronized equipment that creates the perfect microclimate. For safe fast and high-quality application of paintwork. It embodies modern technological solutions for a car service workshop. Increases the effectiveness of paint work.

Product type: Painting and drying chambers
Series: AKFS Electro
Industries: For car service
Type of installation: on a special foundation
on a flat floor (optional)
Price: by request

Download brochure

Download the questionnaire

Download full catalog

Car painting booth: AKFS Electro series – an environmental solution for energy consumption by auto repair workshops. International standards. The air is heated by: an electric heat exchanger. High rates of efficiency. Mounted on a flat floor or foundation, with air ducts.



TO CAR WORKSHOPS

For primers, paints, enamel and varnishes

The perimeter of the working area is illuminated by energy-saving powerful LED lamps. The temperature is regulated from the control panel (within 16-24 ° C during the painting process and 20-80 ° C during the drying process). Powerful exhaust system, provides a constant stream of clean, warm air. The spray booth is equipped with an entrance gate and a door for staff.



Conform to international safety standards

  • Equipped with automatic fire extinguishing system;
  • Made of non-combustible materials;
  • Eradication of fans and main elements of the ventilation system;
  • Automatic safety locking system – eliminates the possibility of supply of paint or compressed air to the spray devices, in the event of termination of ventilation.

Car painting booth

Basic equipment



  • Electric heat exchanger;
  • Set of wall panels 50mm thick;
  • Service doors for staff;
  • Entrance gate;
  • Centrifugal ventilation unit, supply, with electric motor;
  • Centrifugal exhaust ventilation unit, with electric motor;
  • Gate device with pneumatic drive;
  • Damper for manual adjustment of air pressure in the chamber cabin;
  • A set of pre-filters, discharge filters and feed;
  • Set of frames for emission filters;
  • Pressure measuring instrument in a chamber cabin;
  • Ceiling construct with a set of ceiling filter frames;
  • Set of floor gratings, max load – 800 kg / wheel (if installed on the foundation);
  • Control panel with automation systems;
  • Temperature controller;
  • Hour meter;
  • Timer to control the drying time;
  • Set of LED ceiling lights 4x18W.

Technical specifications

For basic configuration*

Models

AKFS-E-7-26

AKFS-E-9-31

Dimensions*
The internal size of the working area (LxWxH) 7х4х2,7 m 8,6х4,5х3 m
Entrance rolling gates (WxH) 3х2,6 m 3х2,9 m
Doors for staff (WxH) 0,7х1,9 m

Power ventilation systems
Exhaust ventilation unit 7,5 kW 11 kW
Sailing ventilation unit 15 kW 18,5 kW
Air productivity 26000 m³/h 31000 m³/h
Air refresh rate ≥340 set/h ≥260 set/h
Air speed 0,25 m/sec

Lighting
Energy saving lights LED Т8, 1200х4×18 8 pcs 10 pcs

Air temperature in the working area
Painting mode 16-24 °С
Drying mode 20-80 °С

Walls
Fireproof Sandwich Panel Thickness 50 mm

Floor grating***
2 rows, maximum load (special foundation) 800 kg/one wheel

Electricity
Power supply 3 phases/380V/ 50 Hz
Total electricity consumption 23,1 kW/h 30,2 kW/h

*- Characteristics designed for execution as standard. Camera performance increases significantly when using optional accessory nodes. **- The external dimensions of the chamber depend on the type and location of the ventilation unit. ***- subject to the choice of installation type on a special foundation.
